NovaStar, Chocolate Depositing Line, Aerated Chocolate Production Line, 400-600kg/h
Scroll to zoom
100%
Description
Overview
Fat melting tank: melts cocoa butter

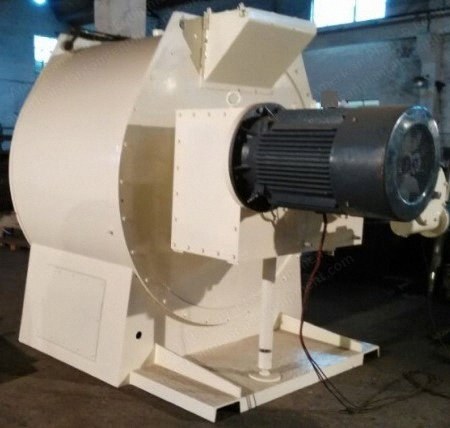

3t chocolate conche: capacity 3000 kg per batch
Automatic feeding system: 3000 l tank with pump and control, automatically feeds chocolate and cream into hoppers
Automatic depositing line: includes movable depositor, 12 layers x 15 hp cooling tunnel (water cooled, not including water tower and pipes), 48 x 2 pistons or customized, easy assembling and disassembling design for depositor, delta system, one mould heater plus one depositor plus one vibrator, mould twisting device plus 1 set tap demoulders, capacity 200-400 kg/h
Aerator machine: capacity 250 to 500 kg/h
Steel mould: mother mould
Pc mould: 400 pieces, size 510-200-30 mm
Pillow packing machine: fully automatic line
Spare parts list: one set standard spare part for all quick wear parts
Specifications
Fat melting tank: capacity 1000 kg per batch, 2000 l capacity, dimensions 2228 x 1060 x 1598 mm, heating power 12 kw, weight 260 kg, packed dimensions 2600 x 1300 x 1800 mm, shipping dimensions 2010 mm x 1800 mm x 2000 mm, shipping weight 770 kg
Automatic depositing line: capacity 200-400 kg/h
Aerator machine: capacity 250 to 500 kg/h
Pc mould: size 510-200-30 mm
Condition
Automatic depositing line: easy assembling and disassembling design for depositor, makes cleaning and switch of products much easier and faster
Spare parts list: one set standard spare part for all quick wear parts
Included
Fat melting tank: with pump and pipes to the mixer
Automatic feeding system: 3000 l tank, pump, and control
Automatic depositing line: movable depositor, 12 layers x 15 hp cooling tunnel, 48 x 2 pistons or customized, delta system, one mould heater, one depositor, one vibrator, mould twisting device, 1 set tap demoulders
Steel mould: mother mould
Pc mould: 400 pieces
Pillow packing machine: fully automatic line
Spare parts list: one set standard spare part for all quick wear parts
More information is available upon request
