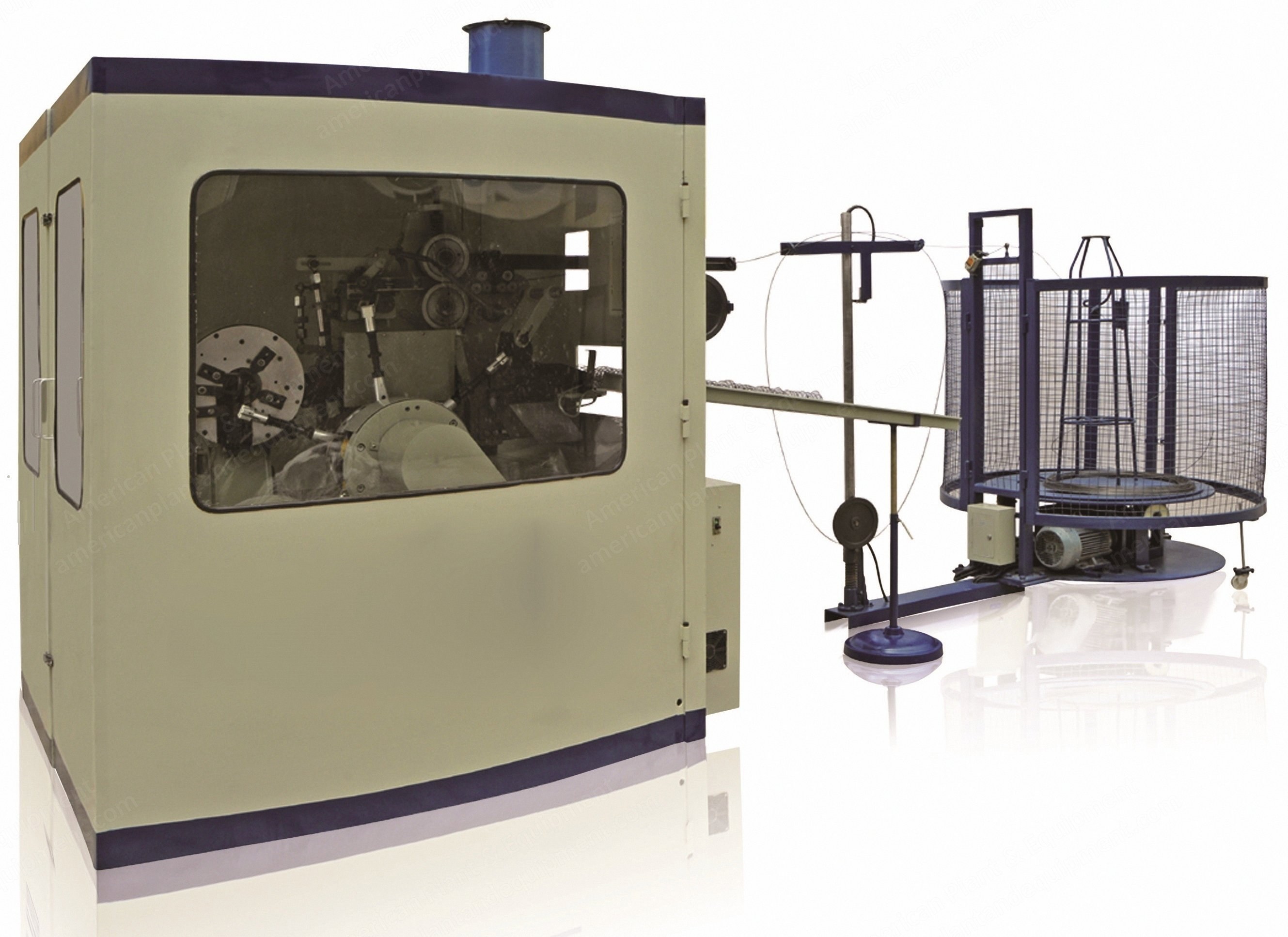

NovaStar, SB234, Automatic Bonnell Spring Coiling Machine, 60 Springs/min, 1.9 to 2.5mm Wire Gauge (New)

NovaStar, SB234, Automatic Bonnell Spring Coiling Machine, 60 Springs/min, 1.9 to 2.5mm Wire Gauge

Description

  1. Overview
    1. Production: 60 springs/min
    2. Model: CL-70A
    3. Spring type: Bonnell
    4. Machine can produce spring which widely used in mattress and sofa products
    5. It can finish entire working procedure of coiling, knotting, heat-treatment and whole line output in a single production cycle
    6. It uses one-body design of machine and electricity, stable ability, convenience adjustment, and it is safe
  2. Specifications
    1. Spring end ring diameter difference: -67 to 91mm (to be request: 110mm)
    2. Spring wire gauge: 1.9 to 2.5mm
    3. Diameter adjustment: +/- 1mm
    4. Spring height: 4 coil, 90 to 105mm; 5 coil, 130 to 150mm; 6 coil, 155 to 175mm
    5. Power requirements: 380V 3 phases 50A, 220V 3 phases 90A
    6. Maximum weight of wire roll: 800 kgs
  3. Weights and Dimensions
    1. Wire swift net weight: 480 kgs
    2. Machine net weight: 1920 kgs
    3. Main machine packing size: 1.9m x 1.8m x 2.2m (only for ref.)
    4. Feeder packing size: 2.5m x 1.4m x 1.65m (only for ref.)
  4. Packing
    1. Packing way: wooden support under + plastic film (only for ref.)
  5. Date
    1. Created and amended date: 13-10-2012
