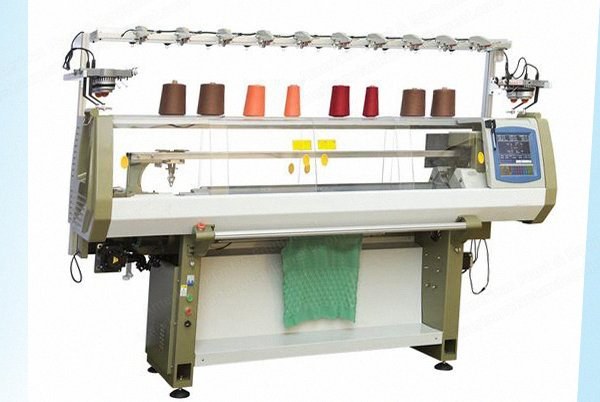

NovaStar, KH163, 52" Working Width, Single Cam System, Flat Knitting Machine (New)

NovaStar, KH163, 52" Working Width, Single Cam System, Flat Knitting Machine

Description

  1. Overview
    1. Gauge: 3-5-7G, 5G, 7G, 9G, 12G, 14G
    2. Weaving width: 52 inches
    3. Knitting system: single head, 1 couple of cam system
  2. Specifications
    1. Knitting speed: controlled by servo motor with 32 sections speed optional, maximum 1.0 meters per second
    2. Servo motor will use the precise back award control and link up the high speed operation ability of numeal signal processor (DSP), which controls IGST to produce the accurate output electric current
    3. Racking: controlled by servo motor racking within 4 inches and with fine adjusting function
    4. Stitch density: controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology: 0 to 720, the stitch of the knitwear can be accurately controlled
    5. Take down roller: programmed instruction, controlled by stepping motor, 32 levels selection, adjustable area is 0 to 100
    6. Yarn carrier: 1 x 6 sets of yarn carriers arranged in three left and right sides rails, switch yarn needle beds anywhere in the mouth
    7. Encoder: advanced encoder adopted
    8. Transfer cam: the transfer cam can transfer, tuck, knit, and miss alone to achieve high production efficiency
    9. Power: single-phase 220V and 3-phase 380V, uses advanced CMOS technology, has memory function at power shock stop
    10. Dimensions (length x width x height): 2800mm x 900mm x 2000mm
    11. Net weight: 700kg
  3. Control System
    1. LCD touch screen and figure interface
    2. Input device: USB internal storage 1G, a great amount of design files can be stored and they can be fetched out for use at any time as per production requirement
    3. Free design system is visual and easy to understand, and software upgrade is free of charge
    4. Network: through high speed Ethernet, the knitting data can be downloaded and transmitted
  4. Safety and Protection
    1. Probe alarm system: probe alarm safety device achieves up and down, side to side alarm function, breaking the current cross-field probe single plane swing detection function and achieve its features
    2. Protection system: when the machine is in motion the process of yarn breakage, joints, floats, rewind, number of pieces completed, move the bed did not return, hit the pin, the next program error, etc. automatic alarm, and a self-locking safety protection device
  5. Included
    1. Spare parts list available upon request
