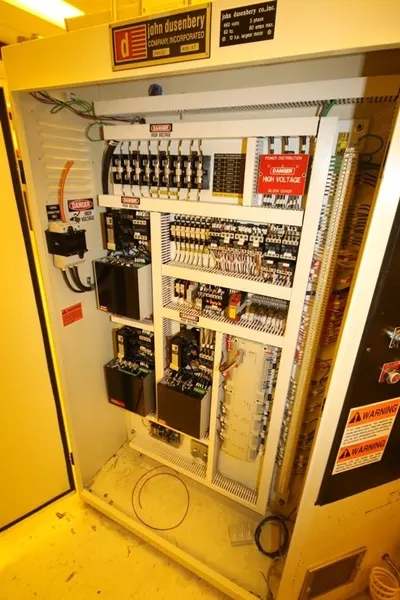

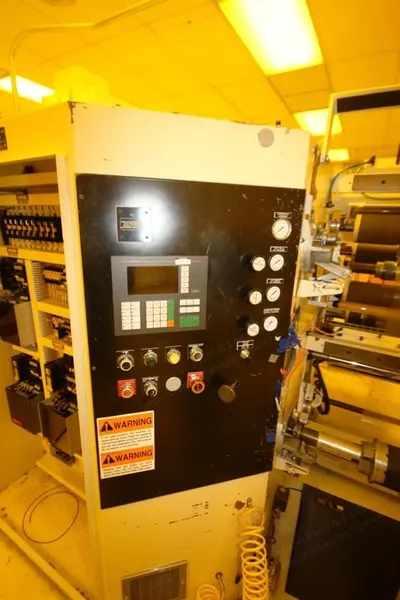

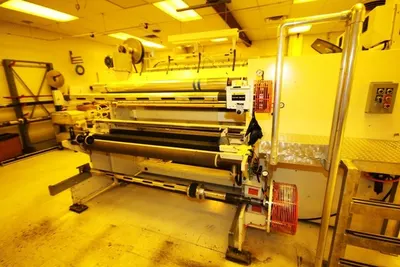

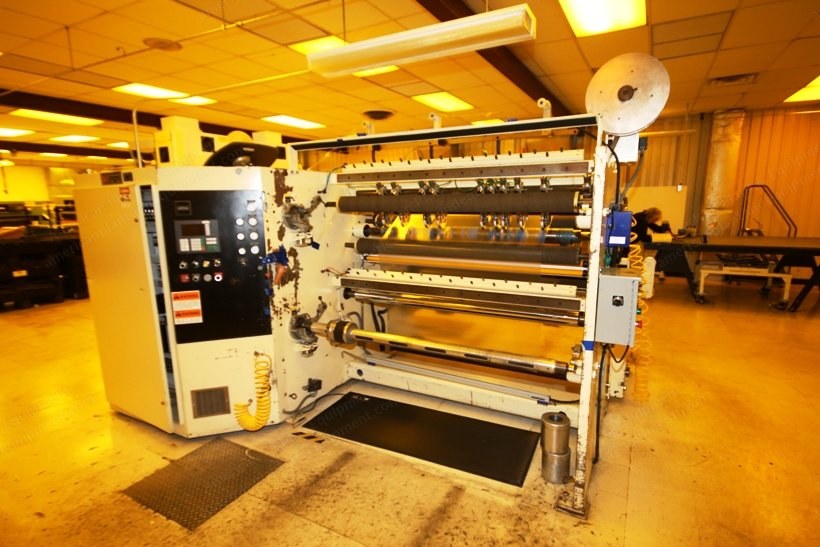

Description Overview Rewind diameter: 24 in Unwind diameter: 40 in Maximum rewind diameter is 24 in when running it duplex 30 in rewind diameter when running it as a simplex Maximum speed of 500 fpm Machine weight: 6 tons Floor space: 130 in wide x 140 in deep Drive and Controls Three motor drive Mitsubishi Melsac FX-48HMR PLC with key pad HMI Differential rewind tension controls programmed through PLC (2) E/P transducers Reversing rewind drive Electricity: 480/3/60, service required 80 amps Air consumption (average): 90 psi / 4 cfm Winding and Slitting Lift out rewind shafts Lockcore or slip core winding Shear slitting with Tidland class 11 pneumatic knife holders Cantilevered female knife shaft Pneumatic lay on roll ready Unwind and Web Handling Special dual unwind stand for laminating a protective sheet over the main unwound roll Pneumatically operated brake assembly (Montalvo) Auto edge guide on the main unwind stand Unwind core sizes: 3 in or 6 in Unwind core used with or without the second unwind stand Can be used with or without the second unwind stand Condition and Features Cleanroom machine Simco ion static bar Safety mat at the rewind of the machine Includes a splice table with pneumatic clamps Included Comes with spare parts and all the original documents
