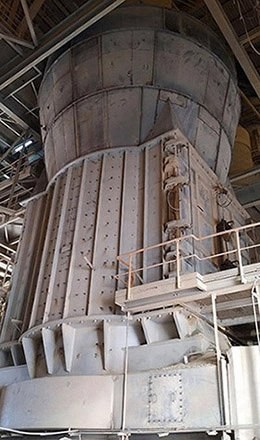

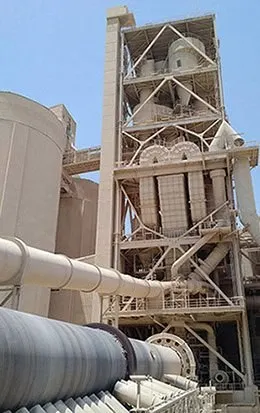

Description Overview Commissioned in the late 1980s and very well maintained Shut down in January 2020 and available for dismantling and relocation Complete with a huge stock of spare parts Electrics for 50 Hz Conveying and Storage System of belt conveyors from crushing to storage Polysius RM-F circular blending and storage, 120,000 t, stacking/reclaiming 1200/350 tph Raw Milling and Blending Polysius Dorol RMR 46/23 vertical roller raw mill, 1850 kW, 280 tph, with hot gas generator (2) Raw meal blending silos, diameter 20 m x 39 m height, volume 11,000 m³ each (2) Aeropol vertical pneumatic conveying systems, conveying height 65 m, 250 t/h (2) Kiln feed bucket elevators, 27.5 m, 250 tph Preheater and Precalciner Dopol twin stream cyclone preheater, 4-stage In-line precalciner with Pillard Cal-G burner Tertiary air duct Alkali bypass system Conditioning tower Rotary Kiln 4.2 m x 68 m Polysius rotary kiln, 3-supports, 3.5% inclination, speed 0.3-3 rpm, 560 kW Clinker Cooling and Handling Polysius reciprocating grate clinker cooler, 3.04 m w x 30.42 m l, 92.4 m² grate area Hammermill clinker crusher Set of (9) cooler aeration fans Deep bucket clinker conveyor, 1000 mm x 56 m, 30°, 32 kW, 300 tph Deep bucket clinker conveyor, 1000 mm x 29 m, 30°, 31 kW, 300 tph Vertical bucket elevator (clinker), 38.5 m shaft centers, 300 tph Dust Collection Kiln bag filter, 18,900 m² area, 260,000 Nm³/h (new in 2013) By-pass bag filter, 5,598 m² area, 144,310 Nm³/h (new in 2013) Clinker cooler dedusting ESP, 420,000 m³/h Cement Milling and Packing 5.2 m x 16.5 m Polysius 2-chamber cement mill, slideshoe bearings, 6300 kW, 180 tph Cement bag packing plant with (4) Haver & Boeker 8-spout packers Cement bag loading with (4) Beumer Autopac 3000 truckloaders Ancillary Systems All ancillary systems, electrical switchgear, and control system
