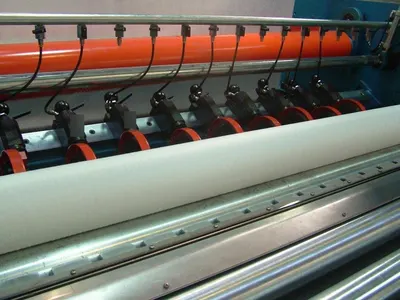

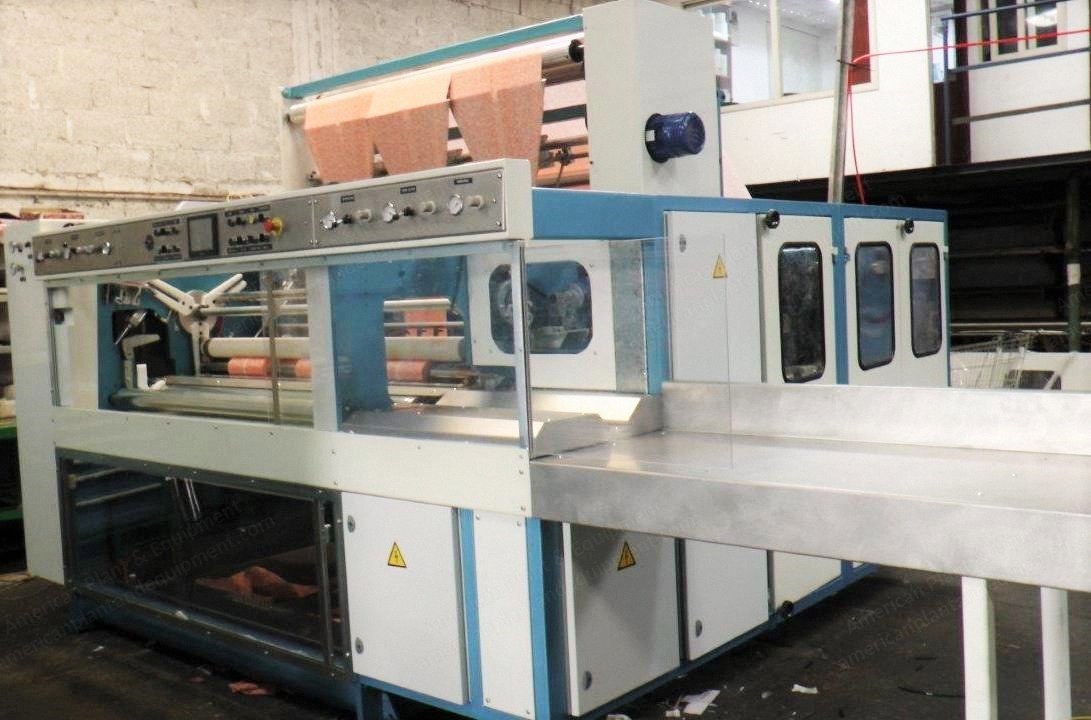

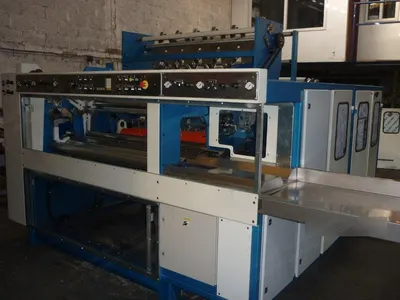

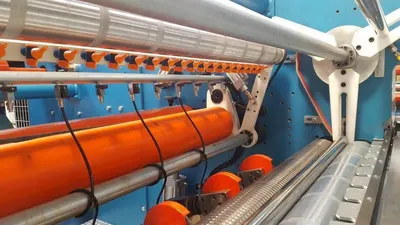

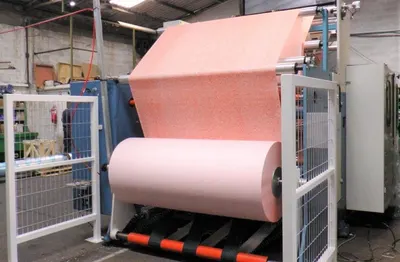

Description Overview Fully automatic start-stop slitter rewinder producing nonwoven folded and coreless rolls. Specifications Jumbo reel maximum diameter: 50 in Pneumatic lifting arms for jumbo reel Three unwinding belts, width 6 in each Operation speed: 1000 feet per minute With tension control unit (servo controlled), including separate motor for unwinding Optional unwinding in both directions Material: nonwoven 19 ÷ 70 gsm Product diameter: 2.75 in to 11 in Mandrel diameter: 1.5 in (6 units) (other size options available) Perforation: 1 to 4 turning blades against a stationary anvil knife (shear cutting) Sheet length changeable by changing gears 5 gears for different measurements are included, more available Fine perforation length adjustment received with a double cone and belt variator Perforation distance range: 4 in to 28 in Slitting system includes 12 pneumatic operated slitters shear cutting units (for clean cut) Automatic mandrel feeding and removal of finished products is performed by a three station turret Cutting to length by a transversal cutter at the end of rewinding Finishing station includes turning and ejecting the logs off the mandrels and out of the machine Safety – machine is fully protected with safety covers in compliance to the CE safety regulations standard Electric supply: 12 kW - 380V x 3 Air supply: 6 bar ¼ in tube Weight: 8,000 kg Measurements: 3400 x 4500 x 2750 mm (L.W.H) Additional Options Folding System The folding system includes: 2 top slitters for dividing the 72 in web into 3 strips of 24 in 3 C folding plates, forming a double V folded rolls Final cutting is performed on the rewinding station, forming 6 V folded rolls of 6 in each The folding system may receive a 72 in wide reel or three reels of 24 in Hot melt gluing system - sealing the logs (programmed line of dots)
