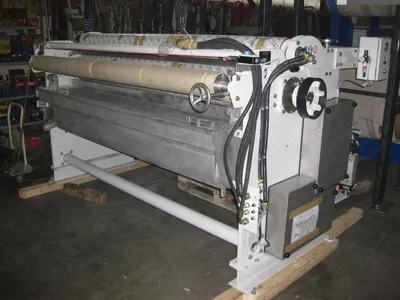

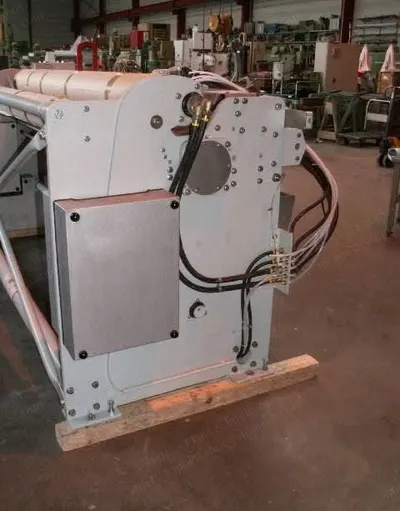

Kuesters, 222.52 / 2000, 2-Roller Finishing Dyeing Padder, 2000mm Working Width, S-Roller

Kuesters, 222.52 / 2000, 2-Roller Finishing Dyeing Padder, 2000mm Working Width, S-Roller

Description

  1. Overview
    1. Brand: Kuesters
    2. Type: 222.52 / 2000
    3. Origin: Germany
    4. Machine overhauled in year 2021

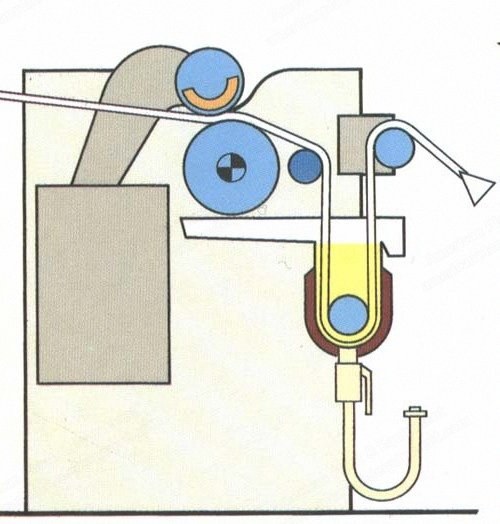

    5. 2-roller finishing padder with 1 “swimming roller” (s-roller)
    6. Machine is complete before delivery; overhauled, delivered with guarantee
    7. In addition, there is a new frequency drive for adapting the machine to an installed system, possible
  2. Specifications
    1. Width of goods: 2000 mm
    2. Roller width: 2200 mm
    3. Number of rollers: 2 pieces
    4. Carrier roller diameter: 270 mm
    5. Roller cover: soft rubber, 75 degrees shore
    6. S-roller diameter: 210 mm
    7. Roller cover: soft rubber, 75 degrees shore
    8. Line pressure: 50 N/mm
    9. Total pressure: 11 ton
    10. Drive side: according to order
    11. Operator side: after order
    12. Fleet basin with displacer and guide roller
    13. Fleet content: 60 litres
    14. Drive journal/pin: 70 mm diameter
    15. Hydraulic panel for joint pressure application made of stainless steel
    16. Pendulum roller control (compensator) with pneumatic discharge
  3. Condition
    1. Overhauled
