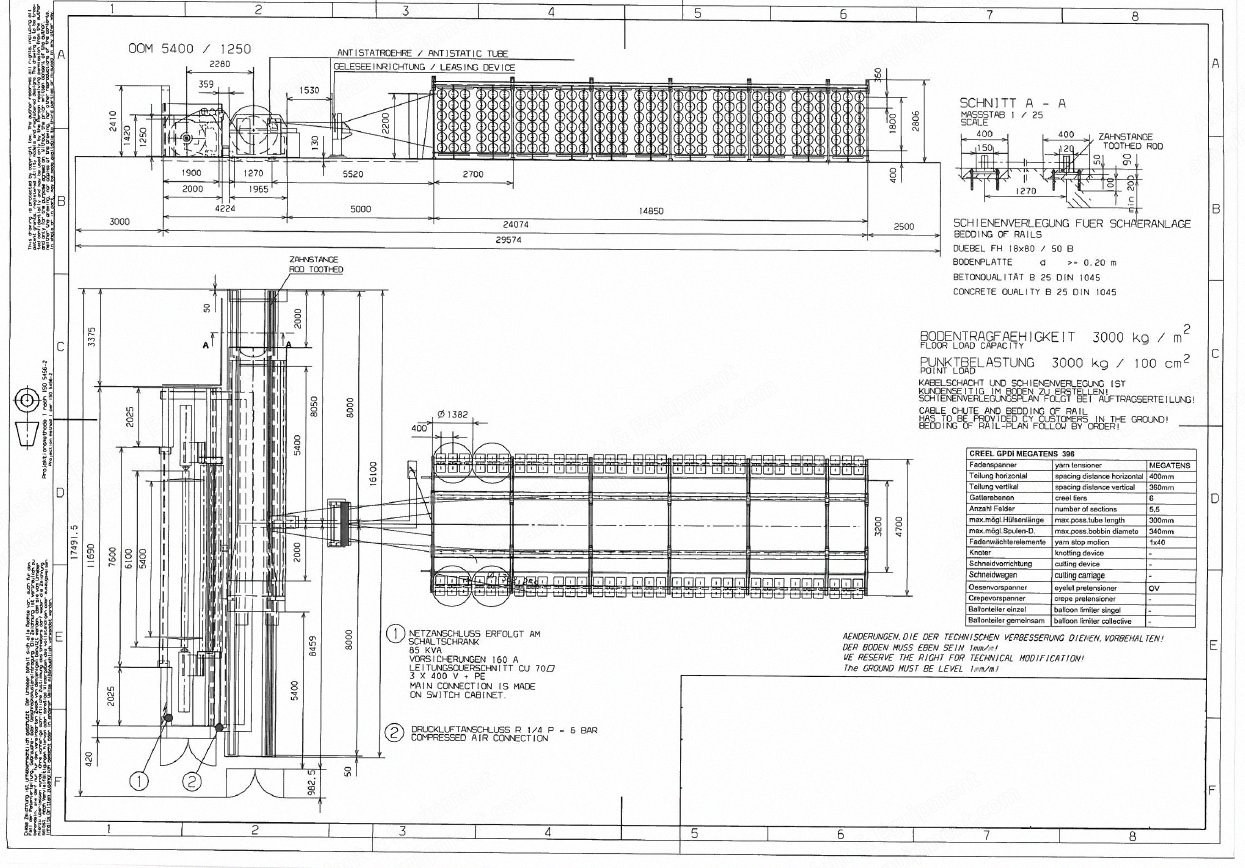

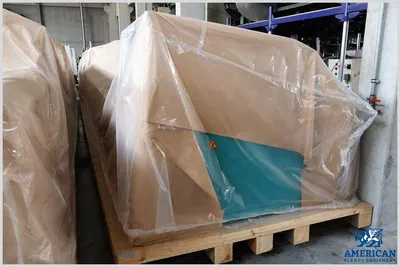

Description Overview Karl Mayer Opt-O-Matic Type Oom-5400/1250 Year of construction 2018 Brand new machine still in original package Specifications Working width 5400 mm Warping drum suitable for all type of yarns Drum size 3000 mm x application height 350 mm Cone angle 9° Max. warp tension 2000 N Drive warping ac motor 37 kW Hydraulic brake disks with ventilation on the warp drum Max. section width 500 mm Coated compression roller 500 mm to produce constant winding density in all the warp sections Sps control computer with windows application (touch screen) Max. warping speed 800 meters per minute Forward/backward motion speed variable from 5 to 20 meters per minute Separate beaming device Maximum beam tube length 6100 mm Maximum beam Ø 1250 mm Yarn tension force beaming 20,000 N at max. beaming speed 100 meters per minute Yarn tension force beaming 10,000 N at max. beaming speed 200 meters per minute Starting from warp beam Ø 440 mm Coated roller waxing device for liquid wax Drive-beaming system with safety device 400 V 3-phase Frequency 50-60 Hz Creel Details Horizontal high performance warp creel gp-d (2 x 396 = 792 positions) having max. 396 spindles in working position 6 levels Gauge horizontal 400 mm x vertical 360 mm Electronic creel stop motion type filgard Double disc tensioners type megatens (7 mm eyelet) with motorized self-cleaning system Data input station with touch screen Total length of the creel 14 m 85
