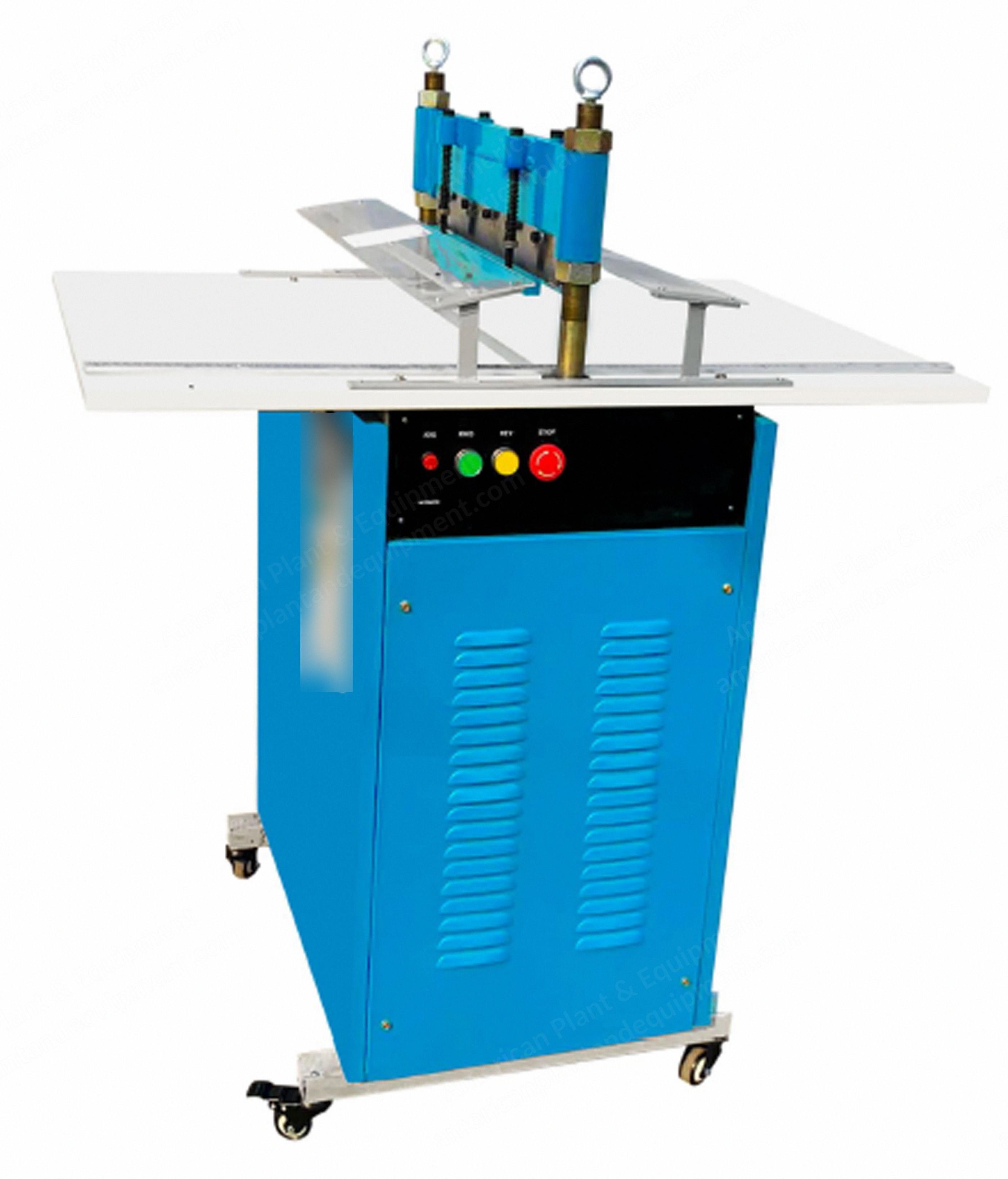

NovaStar, GC146, Motorized Fabric Sample Cutting Machine, Cutting Size 500x500mm, Cutting Height 50mm (New)

NovaStar, GC146, Motorized Fabric Sample Cutting Machine, Cutting Size 500x500mm, Cutting Height 50mm

Description

  1. Overview
    1. European ce standard quality machine
    2. Fabric type: all fabrics
    3. Type: motorized
  2. Cutting Specifications
    1. Cutting blade length: 500 mm
    2. Max. cutting size: 500 mm x 500 mm
    3. Cutting height: 50 mm
    4. Cutting blade: Japan imported alloy steel for zig-zag cutting blade
    5. Cutting blade hardness: hrc63-65
    6. Stroke: 60 mm
    7. One blade can cut 200,000 times in total
  3. Electrical Specifications
    1. Electric specs: 1 phase; 220-240 v; 50 hz
  4. Dimensions and Weight
    1. Machine dimension: 870 x 700 x 1050 mm
    2. Machine weight: 280 kgs
  5. Features and Safety
    1. With measuring device and protection system: yes
    2. Machine is equipped with glass protective cover
  6. Included Accessories
    1. Machine oil bottle

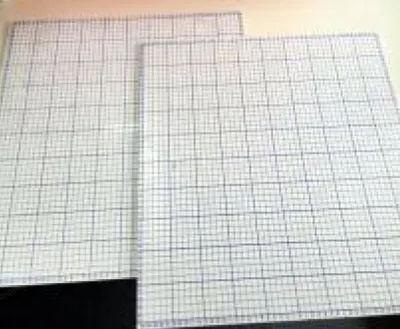

    2. Cutting mat

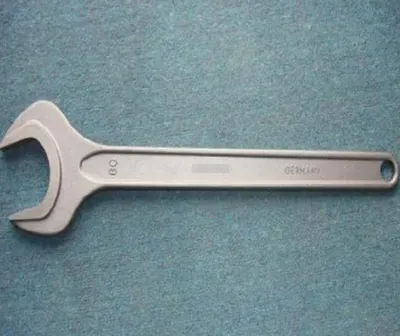

    3. Working wrench
