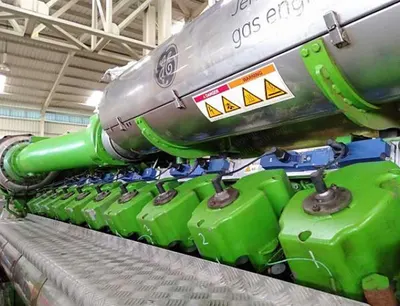

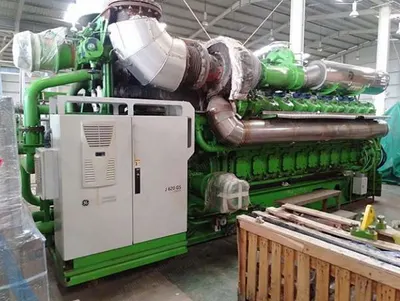

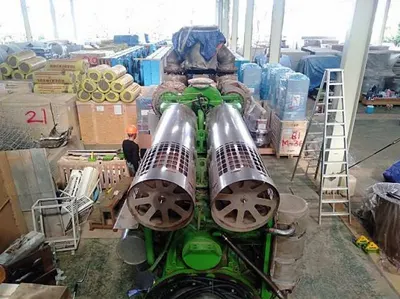

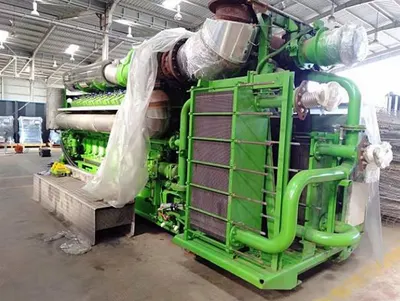

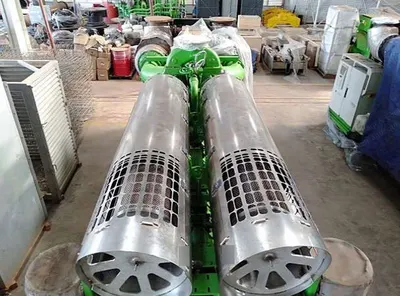

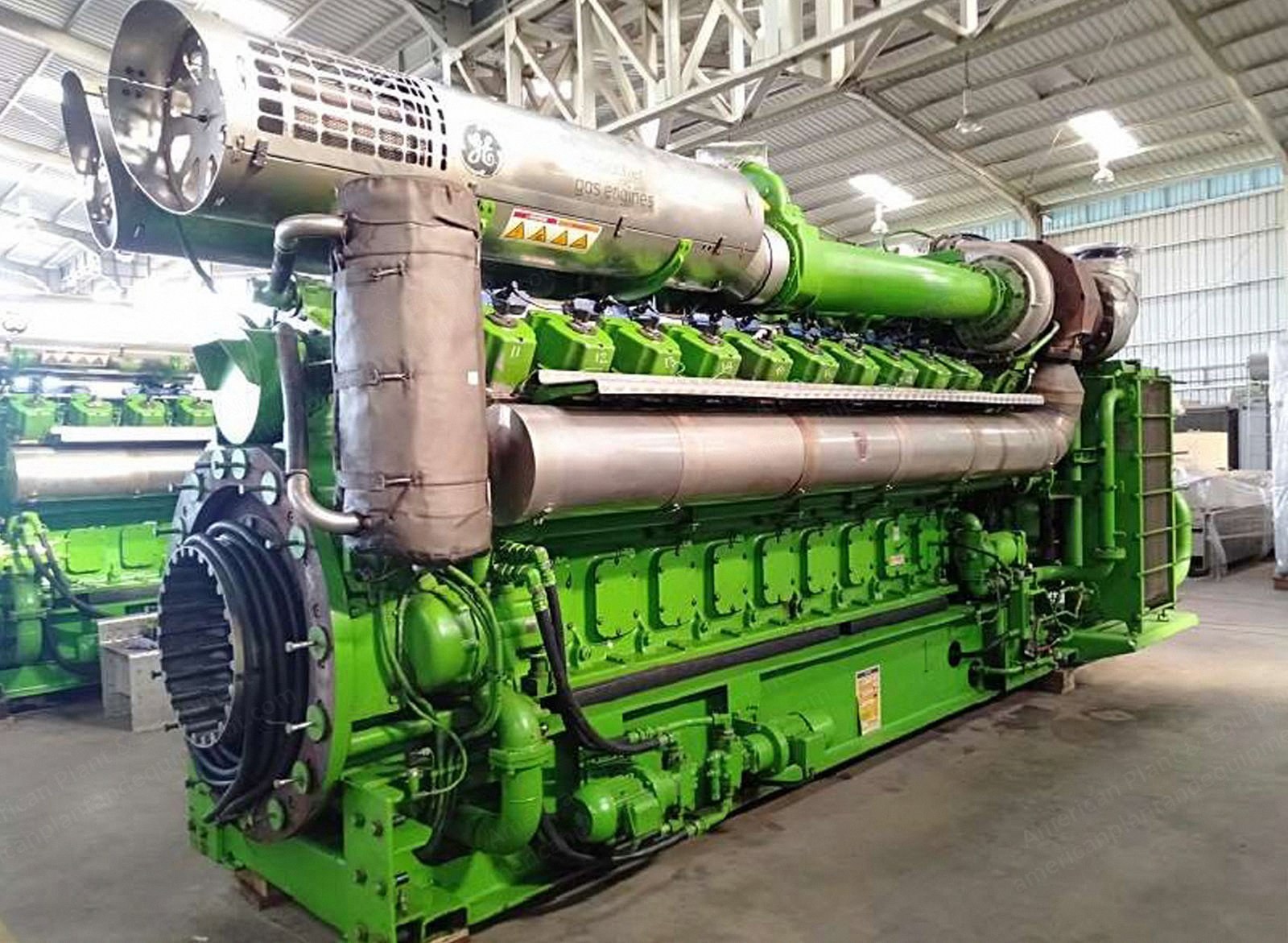

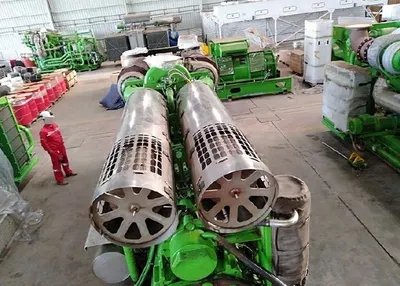

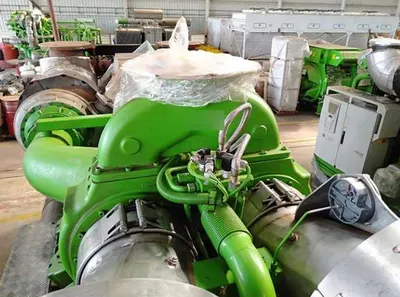

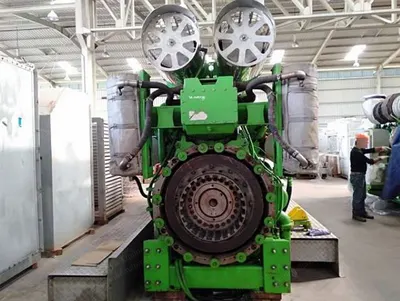

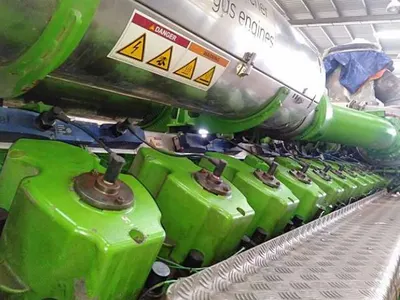

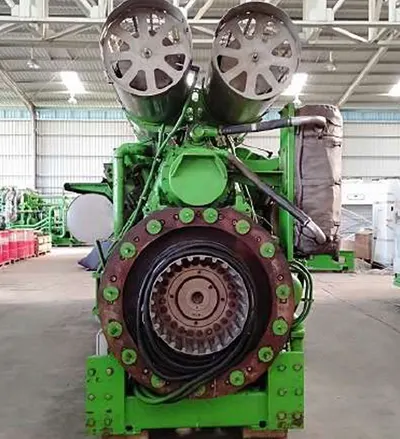

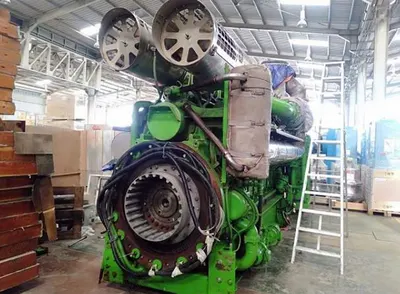

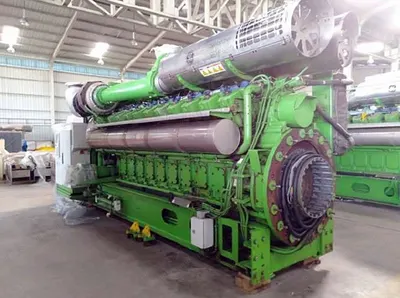

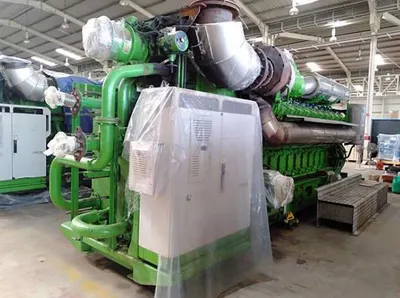

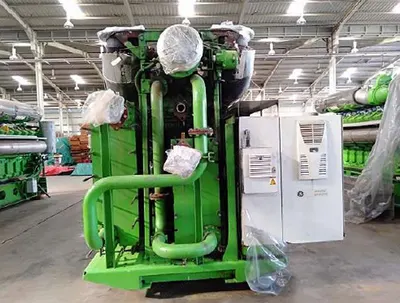

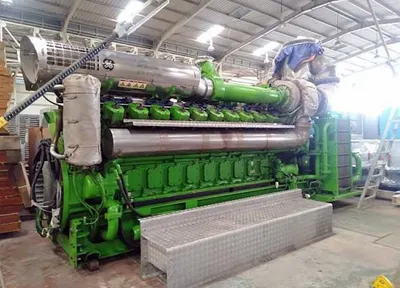

Jenbacher, J620 GS-F, 2012, 3.3 MW, 11 kV, 50 Hz, Gas Engine Generator Set

Jenbacher, J620 GS-F, 2012, 3.3 MW, 11 kV, 50 Hz, Gas Engine Generator Set Sold

Description

  1. Overview
    1. Jenbacher J620 F11 gas engine generating sets, year 2012 to 2013
    2. Running hours: 20,000 hrs
    3. 3 MW each
    4. 11 kV
    5. 50 Hz
  2. Standard Scope Of Supply
    1. Complete engine base frame
    2. Air inlet box
    3. Gas mixer
    4. Oil pump
    5. Inter cooler
    6. Coupling
    7. Exhaust scavenging system

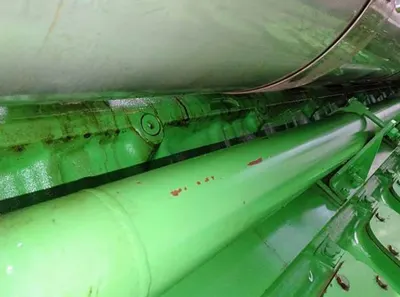

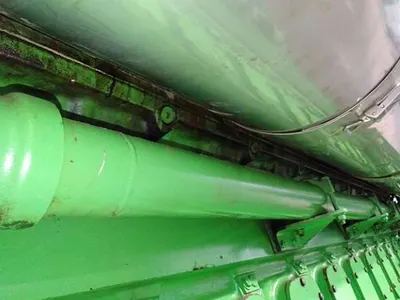

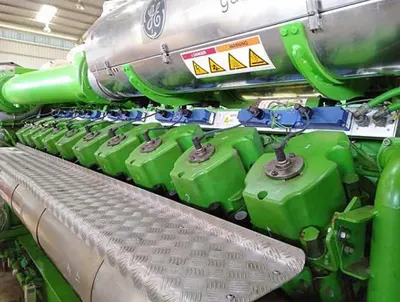

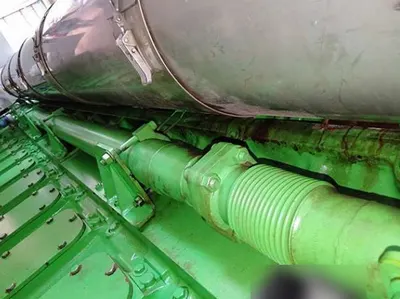

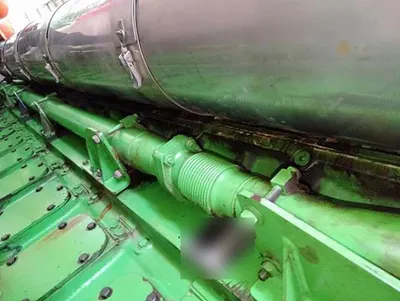

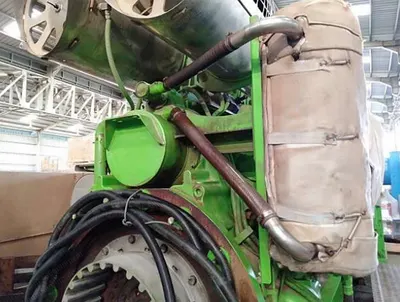

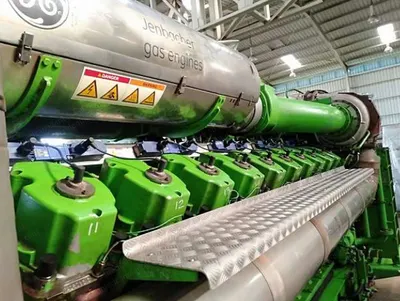

    8. Complete exhaust gas manifold with insulation (A & B bank)

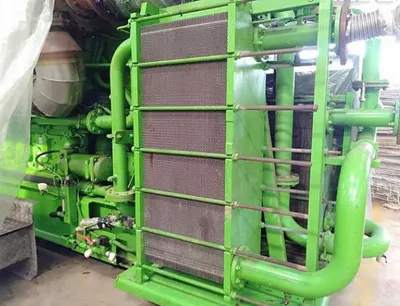

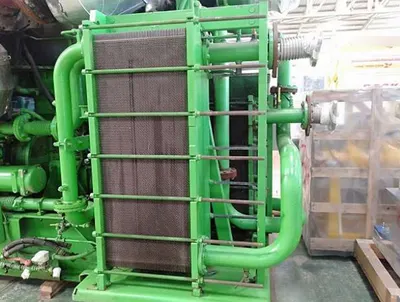

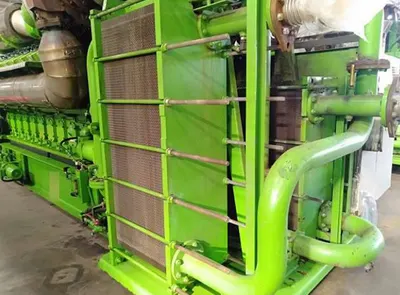

    9. Jacket water pump & heat exchanger mounted on the base frame with pipe work
    10. Complete jacket water pre-heating system
    11. Complete lube oil refilling system
    12. Lube oil heat exchanger mounted to the base frame with pipe work
    13. All engine related water, oil and exhaust piping on the engine base frame

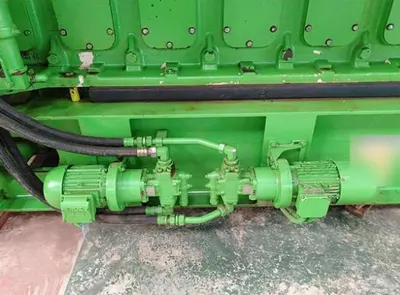

    14. Electric starter motors
    15. Main pre-chamber gas train

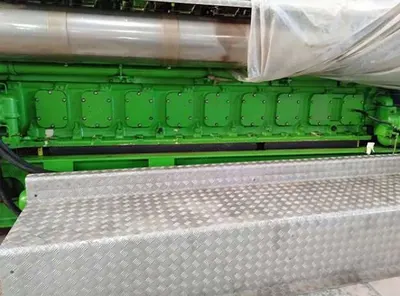

    16. Maintenance platform

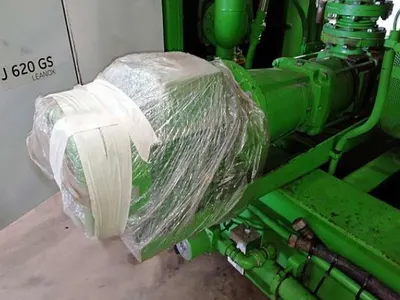

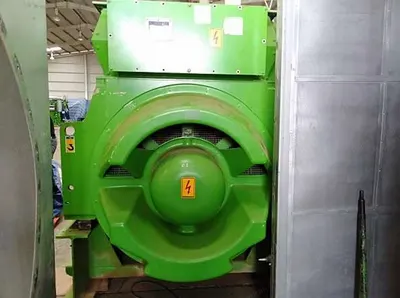

    17. Alternator

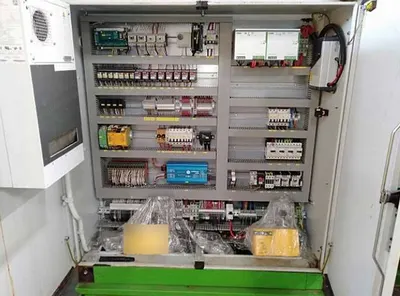

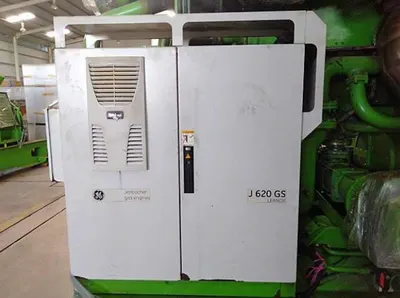

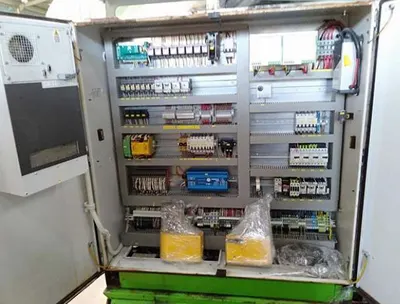

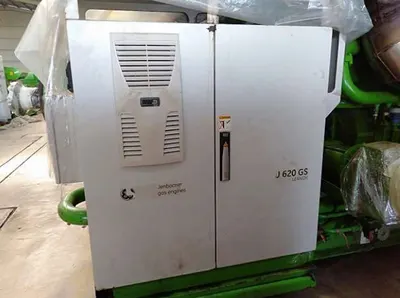

    18. Module control panel - Diane system
    19. Complete operation & maintenance manuals, incl. spare parts book
    20. Set of technical docs incl. but not limited to drawings of the engine, P&I diagrams, wiring diagram, single line diagram
  3. Item 001
    1. Gas Engine Generating Set
      1. Type: JMS 620 GS-F
      2. Year: 2012
      3. Operating hours: 22,778
      4. Rated power (COP): 3349 kW
      5. Rated power factor: 1
      6. Max. site altitude: 500 m
      7. Max. ambient temp. (intake air): 40°C
      8. Rated frequency: 50 Hz
      9. Rated voltage: 11000 V
      10. Rated current: 176 A
      11. Mass: 21300
      12. Performance: G2
    2. Engine
      1. Engine type: J 620 GS-F111
      2. ISO standard power: 3431 kW
      3. Speed: 1500 rpm
      4. Weight: 16100 kg
    3. Interface Panel
      1. Wiring diagram: J P217 +M1
      2. Year: 2012

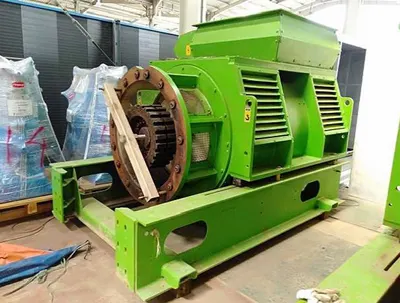

    4. Generator
      1. Frame/core: DIG 142 E/4
      2. Year: 2012
      3. KVA base rate (BR): 4450 kVA
      4. Frequency (Hz): 50
      5. Speed (rpm): 1500
      6. Over speed (rpm): 1800
      7. Voltage (volt): 10500
      8. Phase: 3
      9. Connection: Y
      10. Amps base rate (BR): 245 A
      11. Power factor (PF): 0.80
      12. Rating: S1
      13. Excitation (volt): 48.4
      14. Excitation (amps): 4.97
      15. Ambient temp.: 40°C
      16. Enclosure: IP 23
      17. Insulation class: F/F
      18. Weight: 9700 kg
    5. Module Control Panel
      1. Wiring diagram: J P217 +A1
      2. Year: 2012
  4. Item 002
    1. Gas Engine Generating Set
      1. Type: JMS 620 GS-F
      2. Year: 2012
      3. Operating hours: 19,784
      4. Rated power (COP): 3349 kW
      5. Rated power factor: 1
      6. Max. site altitude: 500 m
      7. Max. ambient temp. (intake air): 40°C
      8. Rated frequency: 50 Hz
      9. Rated voltage: 11000 V
      10. Rated current: 176 A
      11. Mass: 21300
      12. Performance: G2
    2. Engine
      1. Engine type: J 620 GS-F111
      2. ISO standard power: 3431 kW
      3. Speed: 1500 rpm
      4. Weight: 16100 kg
    3. Interface Panel
      1. Wiring diagram: J P219 +M1
      2. Year: 2012
    4. Generator
      1. Frame/core: DIG 142 E/4
      2. Year: 2012
      3. KVA base rate (BR): 4450 kVA
      4. Frequency (Hz): 50
      5. Speed (rpm): 1500
      6. Over speed (rpm): 1800
      7. Voltage (volt): 10500
      8. Phase: 3
      9. Connection: Y
      10. Amps base rate (BR): 245 A
      11. Power factor (PF): 0.80
      12. Rating: S1
      13. Excitation (volt): 48.4
      14. Excitation (amps): 4.97
      15. Ambient temp.: 40°C
      16. Enclosure: IP 23
      17. Insulation class: F/F
      18. Weight: 9700 kg
    5. Module Control Panel
      1. Wiring diagram: J P219 +A1
      2. Year: 2012
  5. Item 003
    1. Gas Engine Generating Set
      1. Type: JMS 620 GS-NL
      2. Year: 2013
      3. Operating hours: 16,205
      4. Rated power (COP): 3349 kW
      5. Rated power factor: 1
      6. Max. site altitude: 500 m
      7. Max. ambient temp. (intake air): 40°C
      8. Rated frequency: 50 Hz
      9. Rated voltage: 10500 V
      10. Rated current: 184 A
      11. Mass: 21100
      12. Performance: G2
    2. Engine
      1. Engine type: J 620 GS-F111
      2. ISO standard power: 3431 kW
      3. Speed: 1500 rpm
      4. Weight: 16100 kg
    3. Interface Panel
      1. Wiring diagram: J Q590 +M1
      2. Year: 2013
    4. Generator
      1. Frame/core: DIG 142 E/4
      2. Year: 2013
      3. KVA base rate (BR): 4450 kVA
      4. Frequency (Hz): 50
      5. Speed (rpm): 1500
      6. Over speed (rpm): 1800
      7. Voltage (volt): 10500
      8. Phase: 3
      9. Connection: Y
      10. Amps base rate (BR): 245 A
      11. Power factor (PF): 0.80
      12. Rating: S1
      13. Excitation (volt): 48.4
      14. Excitation (amps): 4.97
      15. Ambient temp.: 40°C
      16. Enclosure: IP 23
      17. Insulation class: F/F
      18. Weight: 10150 kg
    5. Module Control Panel
      1. Wiring diagram: J Q590 +A1
      2. Year: 2013
