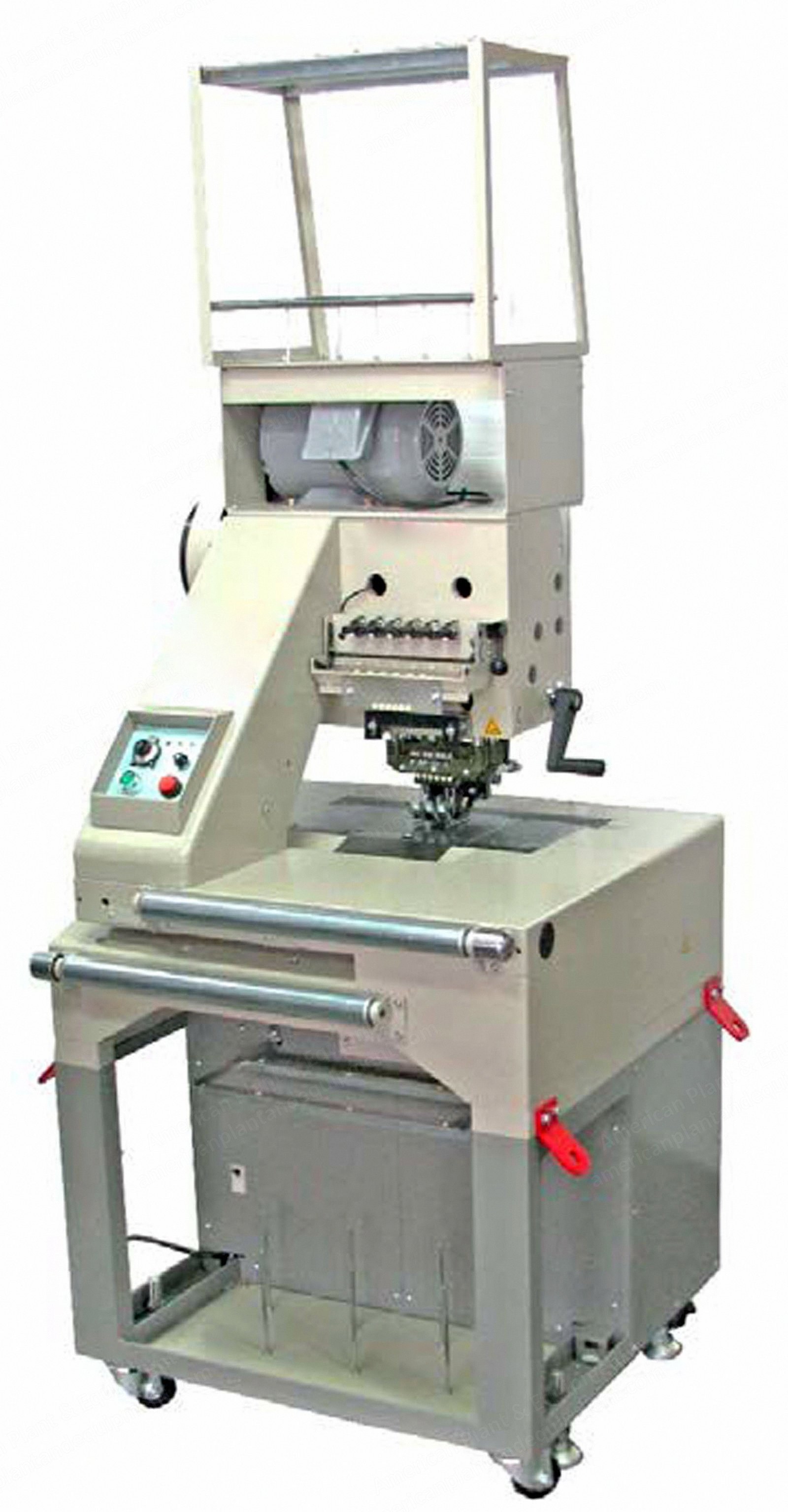

Description Overview Industrial sewing machine for joining heavy and wide fabrics 6 needles, top and bottom feed, double-chain-stitch Sewing speed: 200-800 spm inverter-control Operation mode: auto, manual, inching Start up: button switch Specifications Input power: ac 3p 200-220v ±10% 50/60hz Power consumption: approx. 3.2 kva Drive motor: 3φ 1.5 kw / 4p (inverter control) Feed mechanism: top and bottom feed and pull roller Bed height: 780mm Distance from the center to machine arm: left 120mm / right 120mm Needle gauge: max. 60mm (gauge w: 10mm x 6 needles) Stitch length: 6 to 10mm Needle-bar stroke: 45mm Presser height: max. 20mm Needle and looper: max. 6 pcs Thread stand: upper 6 pcs / lower 6 pcs Needle no.: dr × 2 #25 Needle stop position: needle goes up automatically as machine stops Pull roller: lower roller drive Dimensions and Weight Dimension (w x d x h): approx. 700 × 650 × 1815mm Approx. 700 × 650 × 1610mm Net weight: approx. 350 kg
