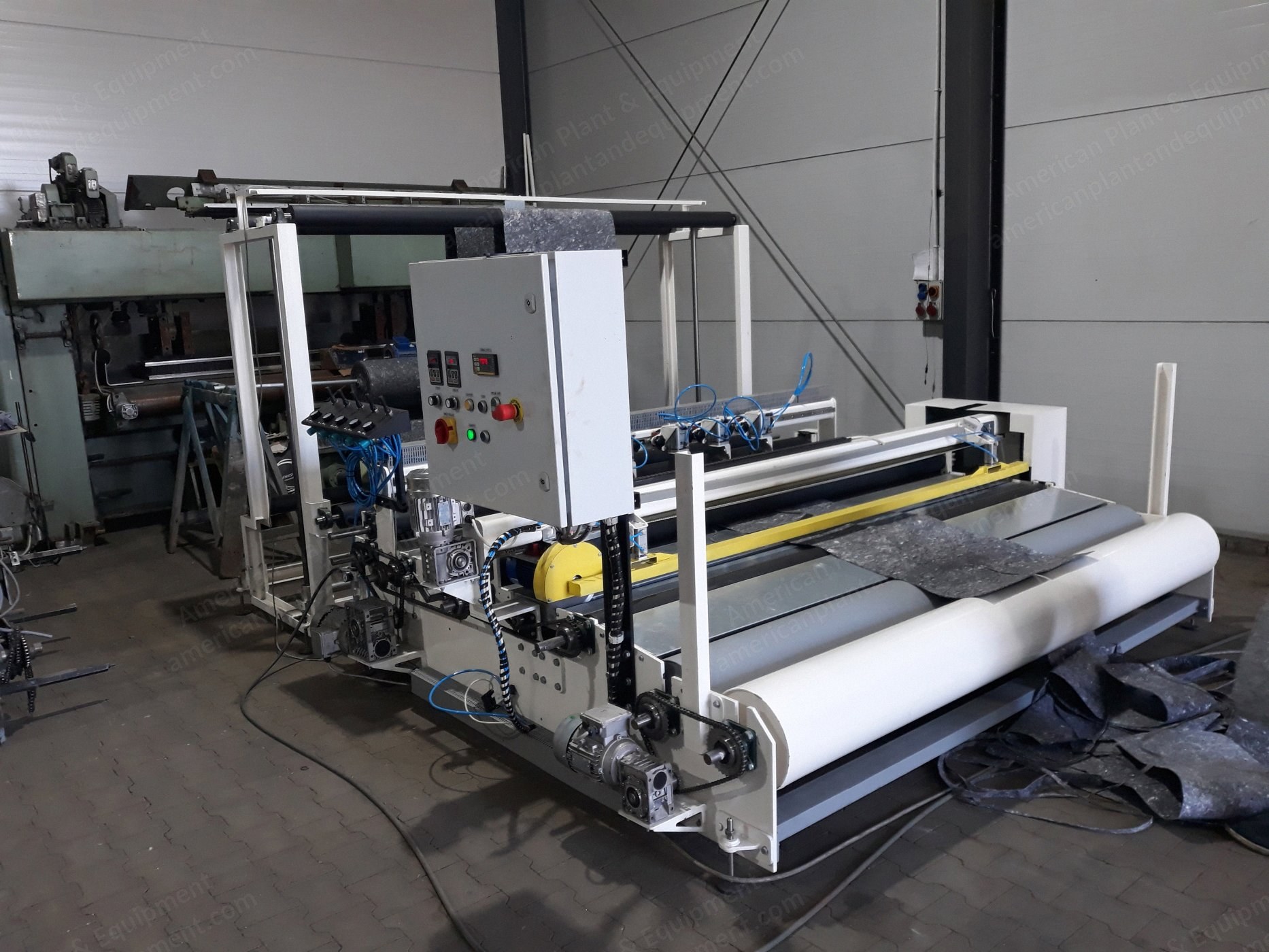

NovaStar, SR325, Cutting & Winding System, 2550mm Working Width, 5 Longitudinal Knives, Accumulator

NovaStar, SR325, Cutting & Winding System, 2550mm Working Width, 5 Longitudinal Knives, Accumulator

Description

  1. Overview
    1. Cutting and winding system with accumulator and the covers.
    2. Supply of pneumatic system required.
    3. Material length measurement.

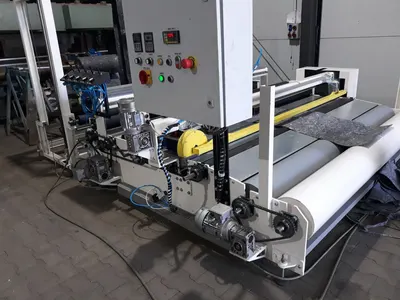

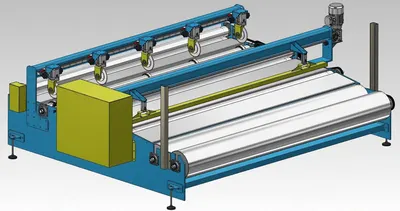

  2. Cutting and Winding Unit
    1. Length: 2340 mm.
    2. Width: 3350 mm.
    3. Height: 1150 mm.
    4. Nominal working width: 2550 mm.
    5. Working space width: 2630 mm.
    6. Total installed power: 4.12 kW.
    7. Transverse knife drive motor: 0.37 kW / 2800 rpm.
    8. Cross-cutter motor: 1.5 kW / 2800 rpm.
    9. Winder drive motor: 0.75 kW / 1400 rpm.
    10. Feed drive motor: 1.5 kW / 1400 rpm.

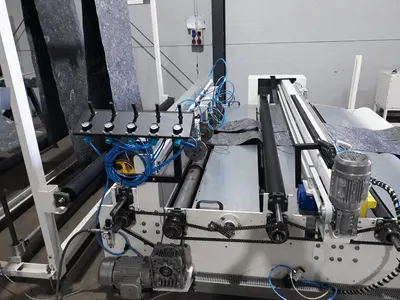

    11. Equipped with 5 longitudinal knives with a diameter of 170 mm, and 1 transverse knife 240 mm.

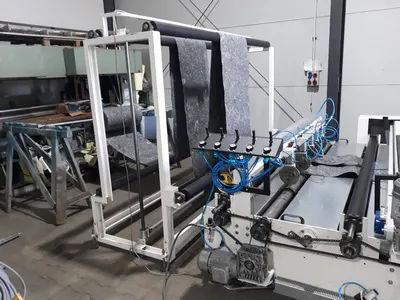

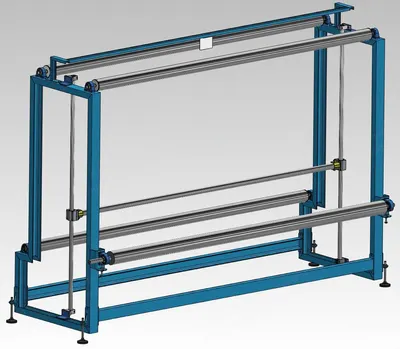

  3. Accumulator
    1. Length: 1020 mm.
    2. Width: 2940 mm.
    3. Height: 2050 mm.
    4. Nominal unwinding width: 2550 mm.
    5. Working space width: 2630 mm.
    6. 4 material transfer rollers.
    7. Compensating tube on rods and linear bearings.
    8. Sensor of falling and rising distance of the compensation tube.
  4. Cover of the Main Drives
    1. Placed to the machine on the wheels.

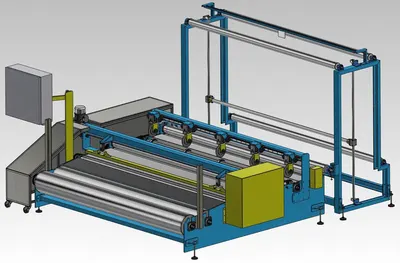

  5. Overall Dimensions
    1. Length: 3420 mm.
    2. Width: 3600 mm.
    3. Height: 2050 mm.
    4. Nominal working width: 2550 mm.
