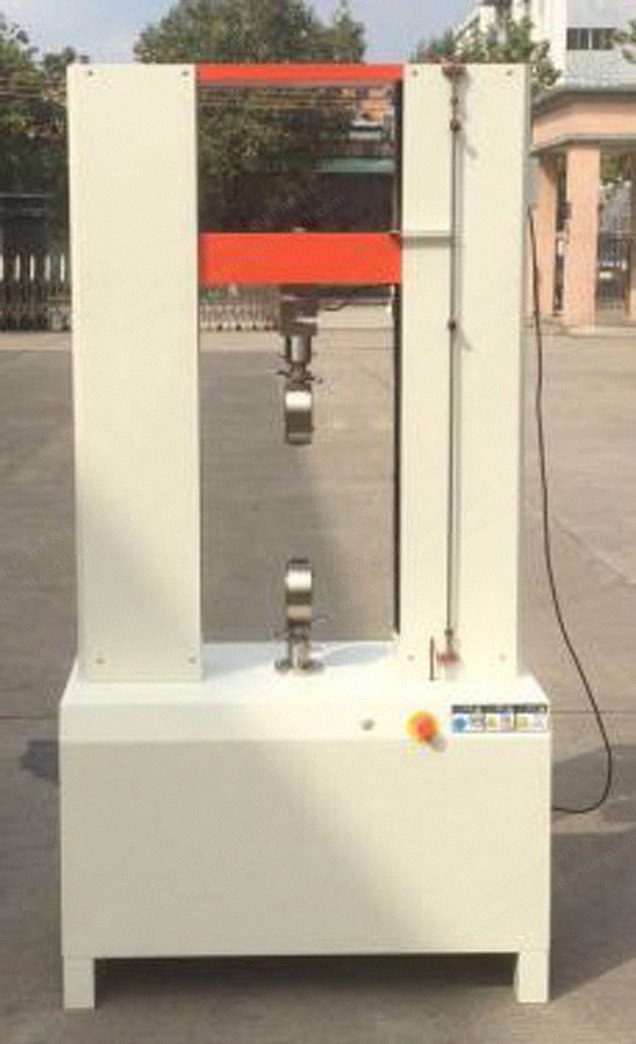

NovaStar, MC296, Tensile Testing Machine, 50kN Capacity, Computerized Data Acquisition (New)

NovaStar, MC296, Tensile Testing Machine, 50kN Capacity, Computerized Data Acquisition

Description

  1. Overview
    1. Suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber and plastic, paper products and color printing packaging, adhesive tapes, luggage and handbags, textile fibers, food, pharmaceuticals and other industries.
    2. Can test the physical properties of various materials, finished and semi-finished products.
    3. Can choose various fixtures for tensile, compressive, bending, tearing, peeling, adhesion, shearing and other tests.
  2. Complies to Testing Standards
    1. Can perform various tests stipulated by national or international standards such as GB, ISO, ASTM, BS, DIN and JIS.
  3. Safety Equipment
    1. Limit protection: It has program control and mechanical two-pole protection to ensure that the instrument works normally within the set stroke.
    2. Overload protection: When the load reaches 110% of the force sensor, the instrument will automatically stop.
    3. Automatic diagnosis: Regularly checks the measurement system and drive system for over-voltage, over-current, over-temperature, etc., and the machine will be shut down immediately if any abnormality occurs.
  4. Technical Specifications
    1. Measurement and Control System
      1. Using the Windows working platform, all parameter settings are handled in the form of dialog boxes, and the operation is simple.
      2. Single-screen operation is used, no screen switching is required.
      3. The test table mode can be customized.
      4. Test data can be called directly in the main screen.
      5. The data comparison of multiple curves can be performed at the same time by means of translation, comparison, etc.
      6. With a variety of measurement units, metric and inch can be switched.
      7. It has three closed-loop control functions of force, deformation and speed.
      8. With automatic return function.
      9. With automatic correction function.
      10. With custom test method function.
      11. With test data operation analysis function.
      12. With the function of automatic magnification, to achieve the most appropriate size of the graphics.
      13. It can do tensile, compression, bending, peeling, tension, compression, fatigue and other tests.
    2. Product Technical Parameters
      1. Capacity selection: 5t
      2. Accuracy level: Level 0.5
      3. Load accuracy: ±0.5%
      4. Stroke resolution: 0.001 mm
      5. Display resolution: 0.01 N
      6. Strength resolution: 1/300000
      7. Effective stroke: 800 mm
      8. Test width: Ø380 mm
      9. Test speed: 50 ~ 300 mm/minute
      10. Strength units: kgf, gf, N, kN, lbf
      11. Stress unit: MPa, kPa, kgf/cm², lbf/in²
      12. Control method: Computer control
      13. Display mode: Computer display
  5. Specifications
    1. Accuracy: Better than 0.5
