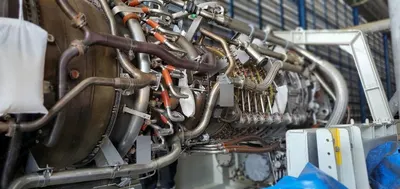

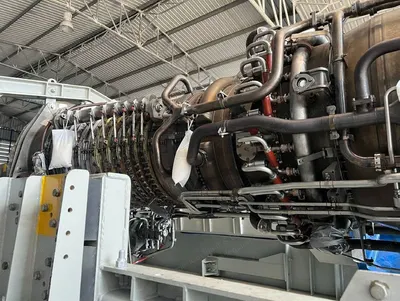

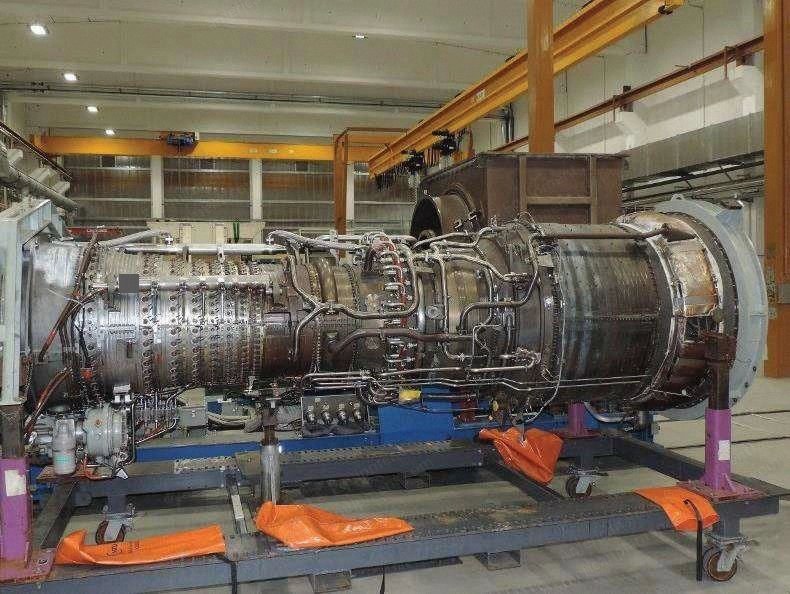

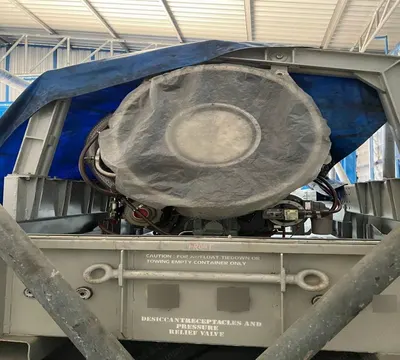

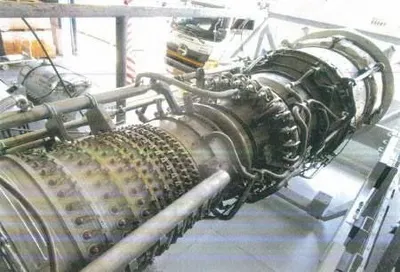

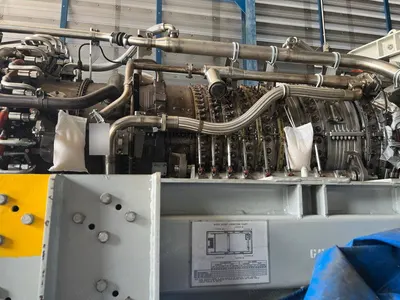

General Electric, LM2500+ G4, 30 MW, 50/60 Hz, Gas Turbine Generator

General Electric, LM2500+ G4, 30 MW, 50/60 Hz, Gas Turbine Generator Sold

Description

  1. Overview
    1. General Electric LM2500+ G4 gas turbine generator
    2. Engine type: LM2500 plus G4 SAC
    3. Engine model: LM2500-RC
    4. Fourth generation of the industry-leading LM2500
    5. Two-shaft turbine with high efficiency, reliability, availability, and low environmental impact
    6. Draws high efficiency and light weight from aeroderivative technologies proven in energy applications and aircraft engines
    7. Ruggedness inherited from frame gas turbine designs
  2. Key Design Features
    1. 17-stage high-pressure axial compressor
    2. Annular combustion chamber with maximized flexibility
    3. Low-speed power turbine (LM2500+G4)
    4. Split compressor casing
    5. In-place blade and vane replacement
    6. In-place hot section maintenance
    7. External fuel nozzles
  3. Benefits
    1. Up to 40% efficiency in simple cycle
    2. More power with retained maintainability and reliability
    3. Modular exchange philosophy and easy maintenance deliver best-in-class availability and reliability
    4. Maximized fuel flexibility: can operate on a wide range of both liquid and gas fuels
  4. Applications
    1. Onshore and offshore production operations
    2. LNG, pipeline, gas processing
    3. Power generation: 50/60 Hz
    4. Power generation, marine and mechanical drive applications
  5. Specifications
    1. Providing more than 30 MW ISO
    2. Available in a 6-stage or 2-stage power turbine configuration
    3. TSN: 34,000 estimated hours
  6. Condition
    1. Very good
    2. Available also with warranty in Q1 2023
