Toscotec, Modulo Plus, 2014, 2850mm Width, 75 TPD Capacity, 1500 m/min Design Speed

Toscotec, Modulo Plus, 2014, 2850mm Width, 75 TPD Capacity, 1500 m/min Design Speed

Description

  1. Overview
    1. Complete paper mill in perfect condition.
    2. Stopped end 2022.
    3. Built by Toscotec.
    4. Year 2014.
    5. Type Modulo Plus.
    6. Width 2850 mm.
    7. Capacity 75 tpd.
    8. From 11 to 30 gsm.
    9. Design speed 1500 m/min.
    10. Complete 100% virgin pulp line with water treatment.
    11. Complete rewinder with 3 belt unwinders and reel wrapping.
    12. Machine stopped and erected on floor.
    13. Available for sale immediately.
    14. 400 V, 50 Hz.
    15. From 12 to 45 gsm.
  2. Stock Preparation For Virgin Pulp
    1. Metallic belt conveyor for pulp bales.

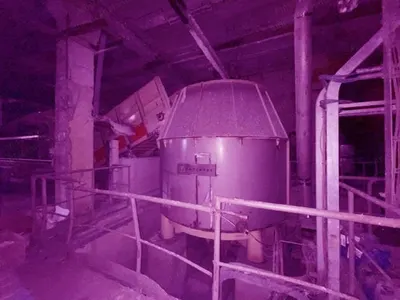

    2. Md pulper Toscotec capacity 20 m3 with power motor 200 kW.
    3. 2 x high density cleaners Toscotec flow 800 L/min.
    4. Deflaker Aikawa model B-50 capacity 300 L/min with power motor 75 kW.
    5. Dd 20’ double disc refiner Aikawa AWE 20 with 250 kW.
    6. Andritz Papillon refiner model CS380 year 2021.
    7. Agitators and pumps.
    8. Full regulation.
    9. Flotation unit Kadant Poseidon PP 300 E flow 300 m3/h.
  3. Approach Flow And Vacuum Line
    1. Toscotec vertical screen AFS3 with holes 2 mm, flow 60000 L/min.
    2. Fan pump Andritz FP50-500.

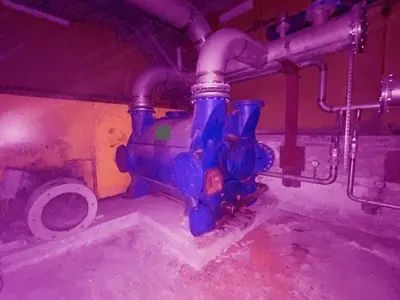

    3. 2 Nash vacuum pumps flow 105 m3/min and 250 m3/min.

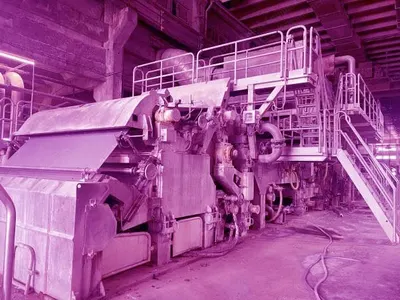

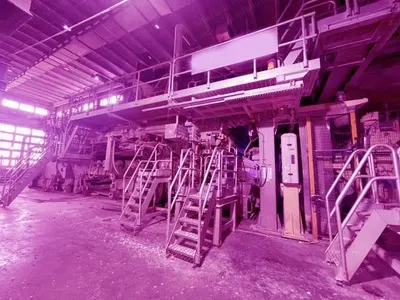

  4. Tissue Paper Machine
    1. Single layer head box slice width 2950 mm flow 54000 L/min.
    2. Complete crescent former built on stainless steel, with header roll diameter 1200 mm.
    3. Suction press on a Yankee diameter 770 mm.
    4. Blend drilled press on Yankee diameter 660 mm.
    5. Steel Yankee dryer diameter 3661 mm, frames on stainless steel 11 bar.
    6. Close hood Milltech.
    7. Pope reel diameter 2200 mm with automatic spool loading.
    8. Sectional drive AC.
    9. Hydraulic group and broke pulper.

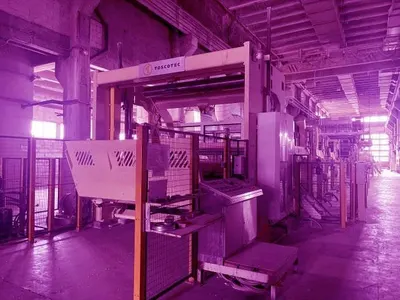

  5. Tissue Rewinder
    1. 3 belt unwinders for diameter 2500 mm.
    2. Tissue paper from 12 to 45 gsm.
    3. Speed maximum 1700 m/min.
    4. Maximum diameter rewind 2200 mm.
    5. Sectional drive AC.
    6. Hst reel wrapping bobines.
  6. Auxiliaries Equipment
    1. Air compressor Atlas Copco GA110 with cooler unit.
    2. Hydraulic groups and lubrication units.
    3. Stainless steel Sulzer pumps.
    4. Complete regulation.

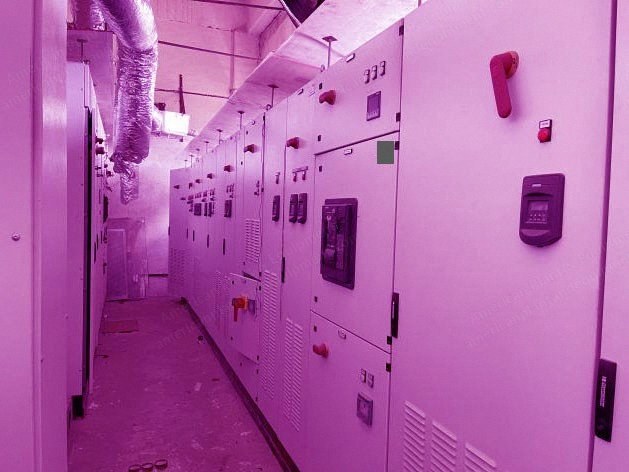

    5. Full electrical and electronically cabinets.
    6. Full manuals and drawings.
