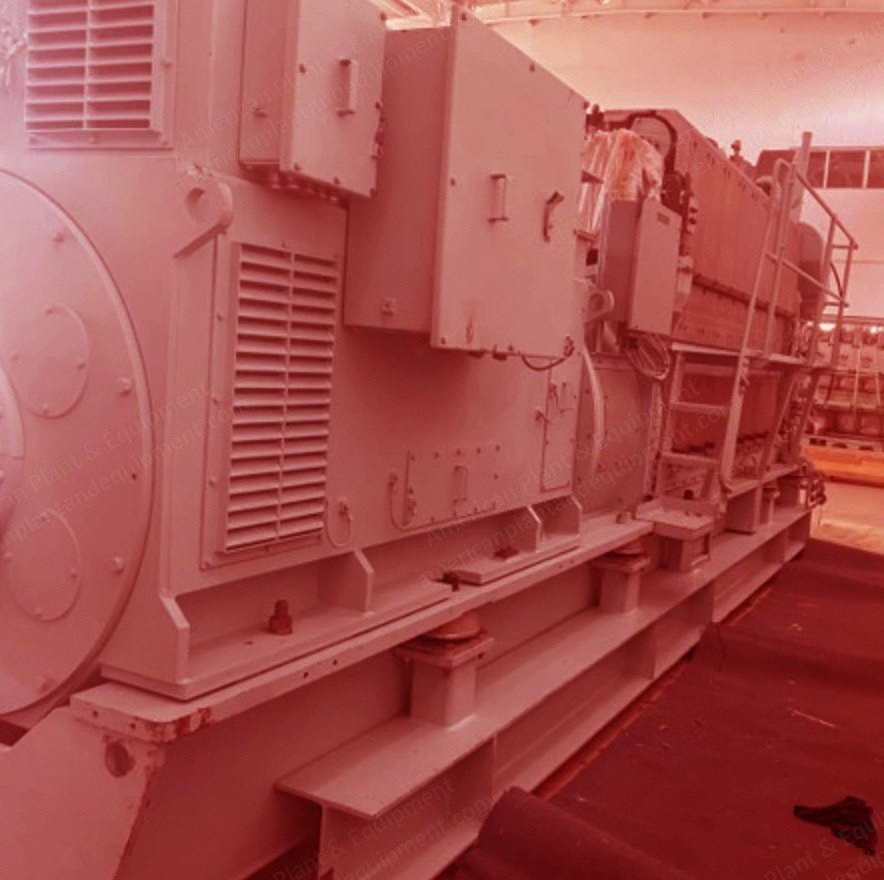

MAN, 5L21/31, 2013, 940 kW, 60Hz, 480V, HFO Generator Engine

MAN, 5L21/31, 2013, 940 kW, 60Hz, 480V, HFO Generator Engine

Description

  1. Overview
    1. Man 5L21/31 HFO
    2. 940 kW each (total 1,880 kW)
    3. 60 Hz
    4. 480 V
    5. Year 2013
    6. New 0 hours
    7. 4 weeks ready aro
  2. Scope Of Supply
    1. Body assembly, the front box, back end cover, oil pan, driving mechanism, a cylinder
  3. Fuel System
    1. Safety filter, abs. 25 µm, with pressure difference indicator, 1 set/engine, loosely supply
    2. Injection pump, high-pressure pipe, injection valve for each cylinder
    3. Leakage alarm box for leaking oil
  4. Lubrication System
    1. Standard supply
    2. Wet oil sump (base frame inside)
    3. Lubricating oil pump, engine-driven
    4. Lubricating oil cooler, plate type, stainless steel
    5. Pre-lubricating pump, el.-driven
    6. Duplex filter, loosely supply paper filter (1 set/engine) for project change
    7. Thermostatic 3-way valve
    8. Lubricating oil centrifugal by-pass filter
    9. Lubricating oil viscosity: SAE 40
    10. Connection for lubricating oil to/from separator
    11. Lubrication oil overflow connection
  5. Cooling System
    1. Standard supply
    2. HT and LT cooling water system (two string type)
    3. H.T. water pump, engine-driven
    4. Cooling water automatic shut-off valve (controlled by diesel lub. pressure), 1 set/engine, loosely supply
    5. Thermostatic 3-way valve (for H.T. water system)
    6. Cooling water preheating branch automatic shut-off valve (controlled by diesel lub. pressure), 1 set/engine, loosely supply
  6. Compressed Air System
    1. Standard supply
    2. DC 24 V solenoid valve for local/remote start and an emergency start valve
    3. Air starter for engine starting
    4. Manual turning device
    5. One set turning tool per project: electric motor 3 x 380 V, 0.67 kW and starting box
  7. Combustion Air System
    1. Turbocharger
    2. Charge air cooler
    3. Connection of water washing for turbocharger - compressor
  8. Exhaust Gas System
    1. Standard supply
    2. Gas outlet for vertical pipe connection after turbocharger
    3. Connection of dry cleaning for turbocharger turbine
    4. Exhaust bellows between cylinder, exhaust pipe (with the heat insulation cover) between cylinder and turbocharger
  9. Governor System
    1. Governor: mechanical hydraulic governor (electron control)
  10. Control And Monitoring System
    1. Standard supply
    2. Alarm and shutdown sensors according to classification society standard and MAN standard
    3. Use MAN control system, including control module and indication module. Control module used for engine control, monitoring and alarm. Indication module used for indicating the data of engine and safety system.
    4. Safety system for shut down: over-speed, low lubricating oil pressure, high cooling water temperature and emergency stop
    5. Owner supply two way sources power uninterruptible DC 24 V
  11. Foundation
    1. Standard supply
    2. Base frame on conical mounting, include flexible pipe connections
    3. All external connections with counter flanges, gaskets and bolts
    4. Service platform with handrails and steps
  12. Alternator
    1. Standard supply
    2. Model: HMD500-08
    3. Brand: Hyosung
    4. Voltage: 480 V
    5. Frequency: 60 Hz
    6. Power factor: 0.8
    7. Protection class: IP23
    8. Insulation class: F
  13. Specifications
    1. Fuel type: HFO (Heavy Fuel Oil)
