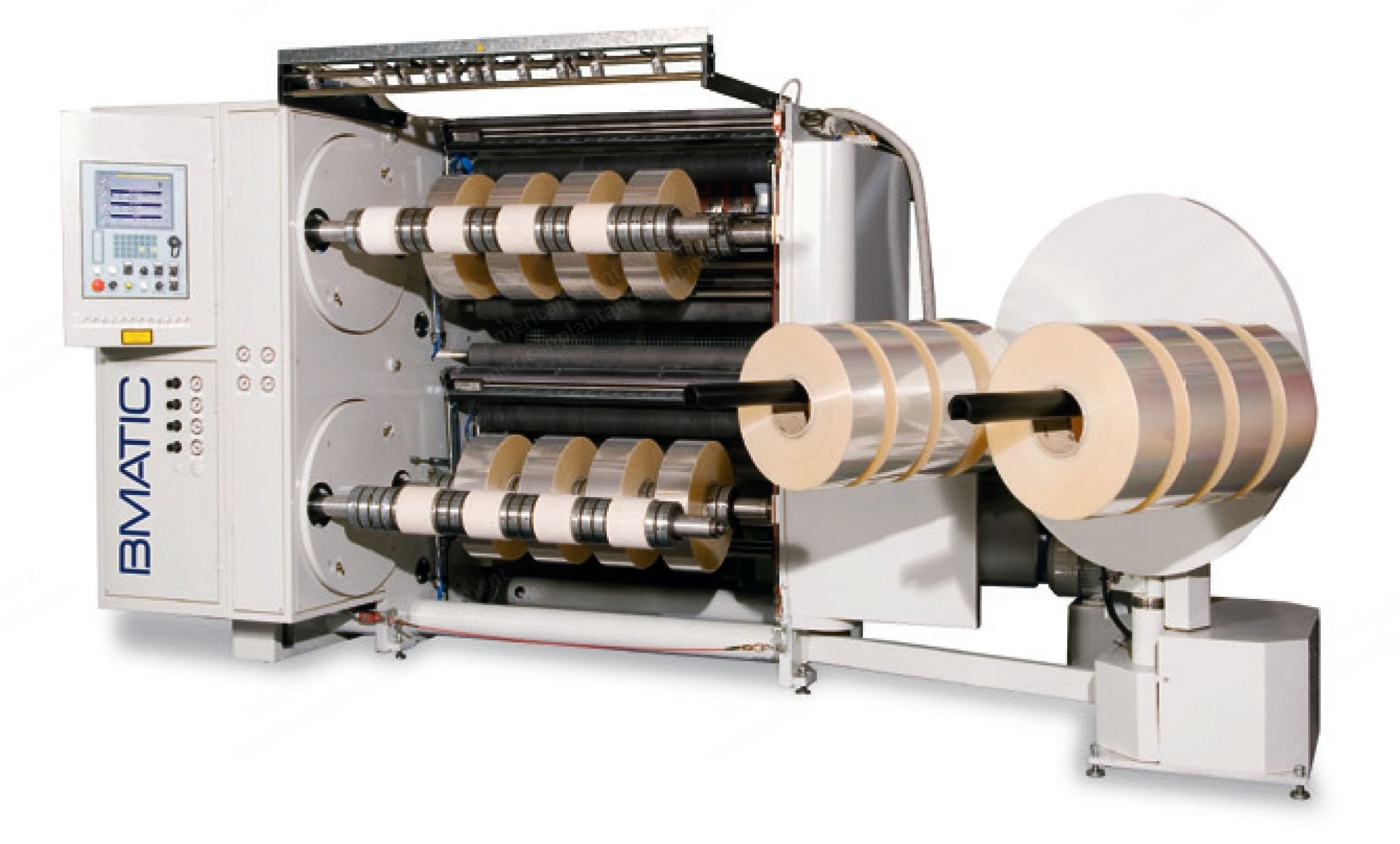

Bielloni, B-Matic, 1998, Double-Turret Slitter-Rewinder, Working Width 1300mm, Max Speed 450 m/min

Bielloni, B-Matic, 1998, Double-Turret Slitter-Rewinder, Working Width 1300mm, Max Speed 450 m/min

Description

  1. Overview
    1. Not currently in production.
  2. Specifications
    1. Material width / working width: max. 1300 mm.
    2. Mother roll cores / unwinding core size: 76 + 152 mm.
    3. Weight of unwind/rewind roll: max. 1,000 kg.
    4. Unwind diameter: max. 1,000 mm.
    5. Rewind diameter: max. 450 mm.
    6. Min. slit width: 25 mm.
    7. Rewind roll cores / rewinding core size: 76 mm.
    8. Unwinding tension range: 100 kg.
    9. Rewinding tension range: 20 kg (per arm).
    10. Machine speed (max.): 450 m/min.
  3. Configuration
    1. Two-turret rewinding shafts.
    2. Helios driven rotary knives.
    3. Separate unwinding station.
    4. 2 x 2 turret rewinding station / non-stop rewinding.
