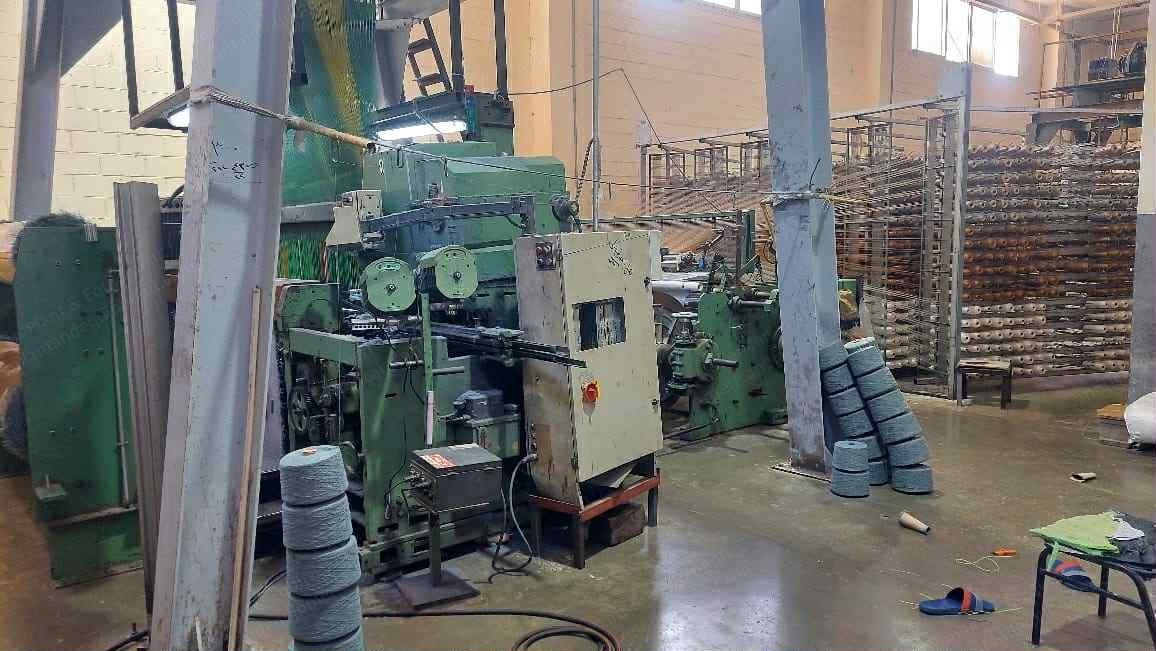

Van de Wiele, MPS 32 / VMM 22, 1990, 1750mm Width, Staubli LX3201 Jacquard, 8192 Hooks

Van de Wiele, MPS 32 / VMM 22, 1990, 1750mm Width, Staubli LX3201 Jacquard, 8192 Hooks

Description

  1. Overview
    1. Premium Van de Wiele jacquard velvet looms.
    2. Equipped with high-capacity Staubli electronic jacquards (JC5 controller).
    3. These machines offer outstanding reliability, precision, and efficiency for high-end velvet fabric manufacturing.
    4. Condition: excellent operational condition, fully complete and ready for production.
  2. Item 001 Specifications
    1. Van de Wiele MPS 32 velvet looms.
    2. Brand: Van de Wiele.
    3. Model: MPS 32.
    4. Year of manufacture: 1990.
    5. Nominal weaving width: 1750 mm (68.9 in).
    6. Machine / reed width: 2100 mm (82.7 in).
    7. Jacquard motion: Staubli LX3201.
    8. Hooks: 8,192 hooks.
    9. Controller: Staubli JC5 control.
    10. Warp supply: complete creel for warp yarns included.
    11. Warp beams: 2 beams per loom.
    12. Weft insertion: 2 weft feeders per loom.
    13. Take-up: batching motion for finished fabric roll.
    14. Quantity: 2.
  3. Item 002 Specifications
    1. Van de Wiele VMM 22 velvet looms.
    2. Brand: Van de Wiele.
    3. Model: VMM 22.
    4. Year of manufacture (loom): 1991.
    5. Jacquard year of manufacture: 12/2002.
    6. Nominal weaving width: 1750 mm (68.9 in).
    7. Machine / reed width: 2100 mm (82.7 in).
    8. Jacquard motion: Staubli LX3201.
    9. Hooks: 8,192 hooks.
    10. Controller: Staubli JC5 control.
    11. Warp supply: complete creel for warp yarns included.
    12. Warp beams: 2 beams per loom.
    13. Weft insertion: 2 weft feeders per loom.
    14. Take-up: batching motion for finished fabric roll.
    15. Quantity: 2.
  4. Scope of Delivery and Key Advantages
    1. Complete system solution: includes gantries, yarn creels, beams, feeders, batchers, and all original accessories required for operation.
    2. High-capacity jacquard: equipped with 8,192-hook Staubli LX3201 heads for complex, high-density velvet pattern capabilities.
    3. Modern control interface: upgraded/equipped with Staubli JC5 control units for easy pattern loading and reliable machine management.
    4. Turnkey condition: maintained to high standards, running smoothly with no mechanical or electrical issues.
