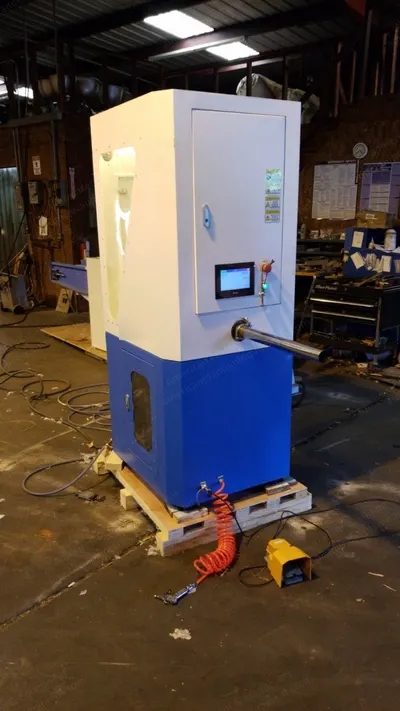

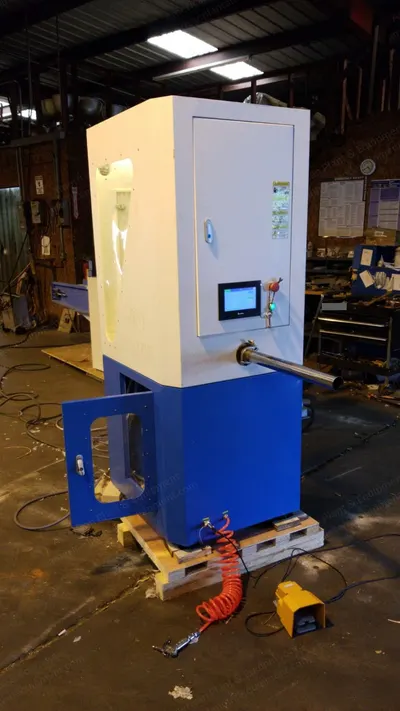

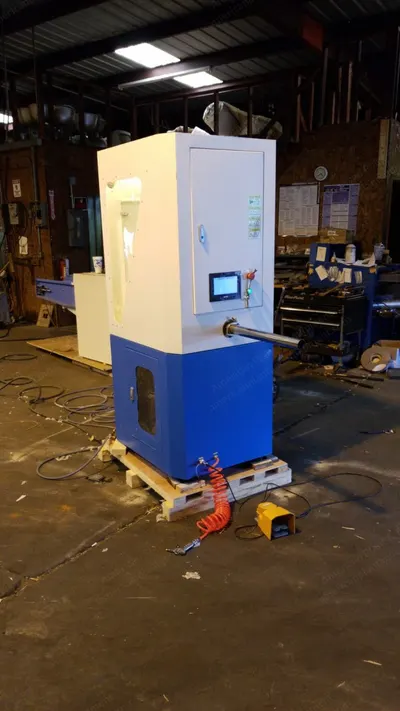

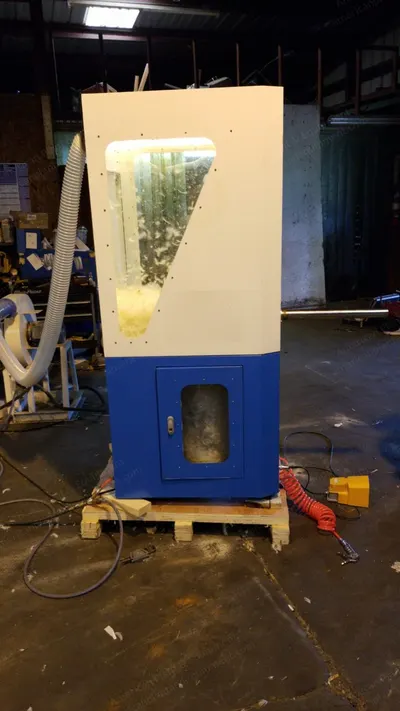

NovaStar, PC329, Down and Feather Filling Machine, 1300g Holding Tank, 0.2-50g Measure Tank, 0.7kW (New)

NovaStar, PC329, Down and Feather Filling Machine, 1300g Holding Tank, 0.2-50g Measure Tank, 0.7kW

Description

  1. Overview
    1. Product name: Down and feather filling machine with weigh system
    2. Type: PC329
    3. Fully enclosed design to keep area clean and save material
    4. Automatically weighing with accuracy load cell to assure proper weight
    5. High efficiency with filling time of 2 to 5 seconds
    6. The automatic down and feather filling machine is mainly used to produce jackets, sleeping bags, cushions, pillows, pads and comforters that are made with down and feather material by computerized weighing system
    7. Two hopper system for constant supply
    8. Including the vacuum filling function that does not affect the material and keeps the original elasticity and soft hand feeling

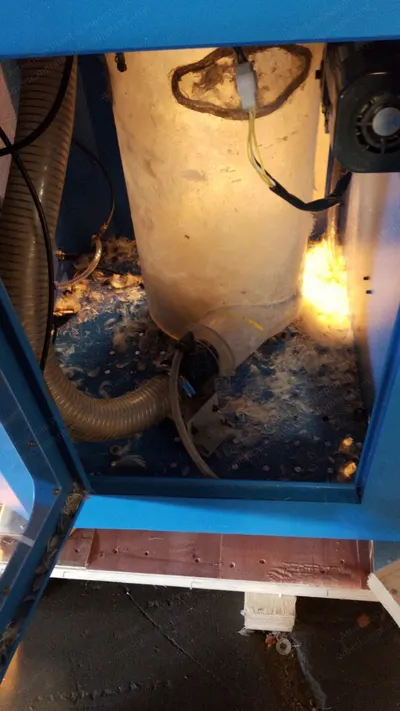

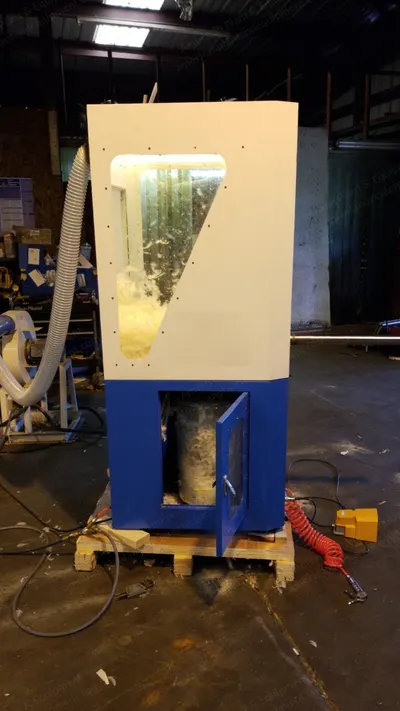

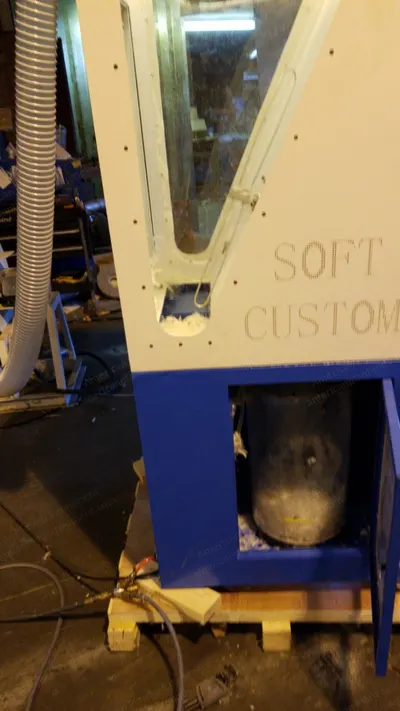

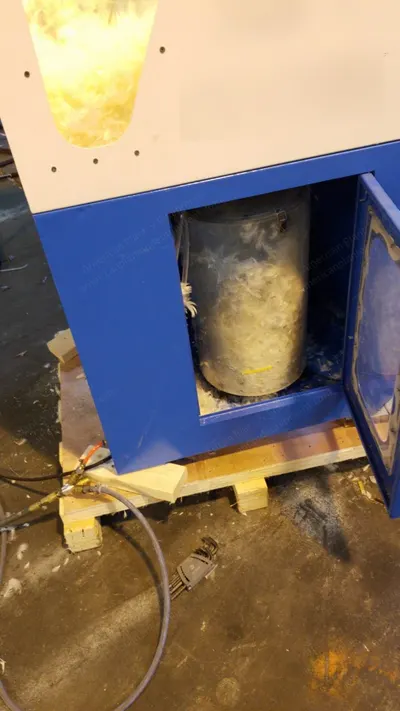

    9. All the materials are encased inside the hoppers which are rotating without raising any dust, keeping the working area clean
    10. Most of the electric key components are international brands, so that the quality is reliable

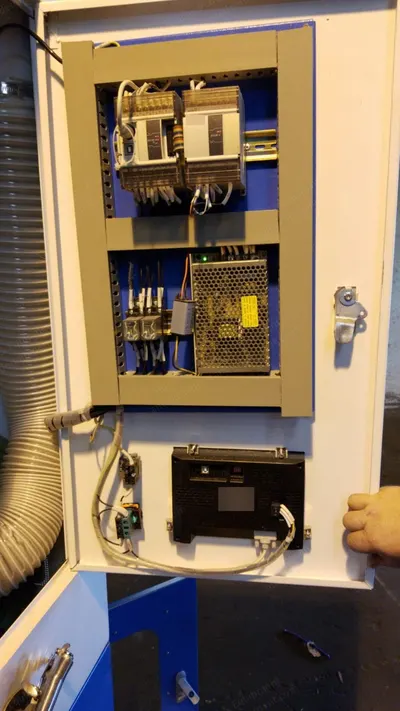

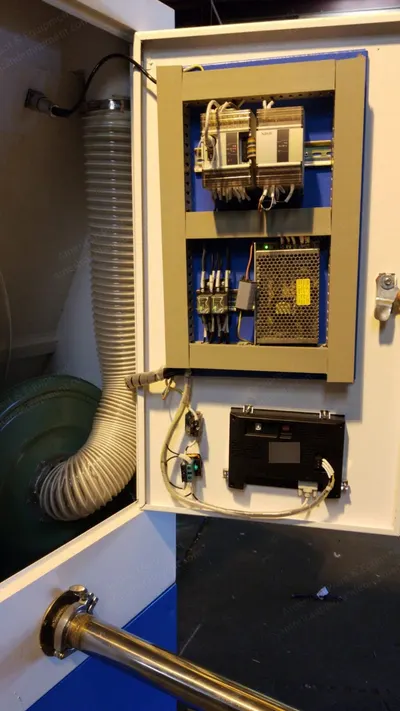

    11. The whole line operation is controlled by PLC system which is well proven and produced according to the highest technology

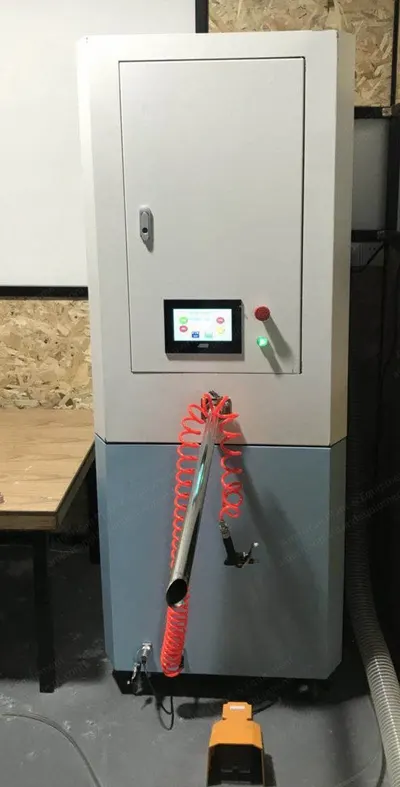

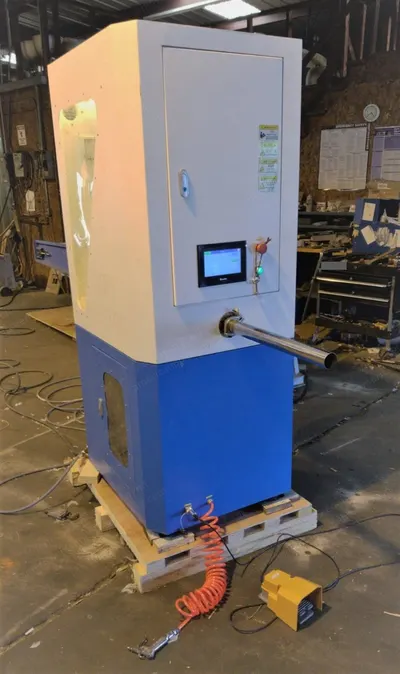

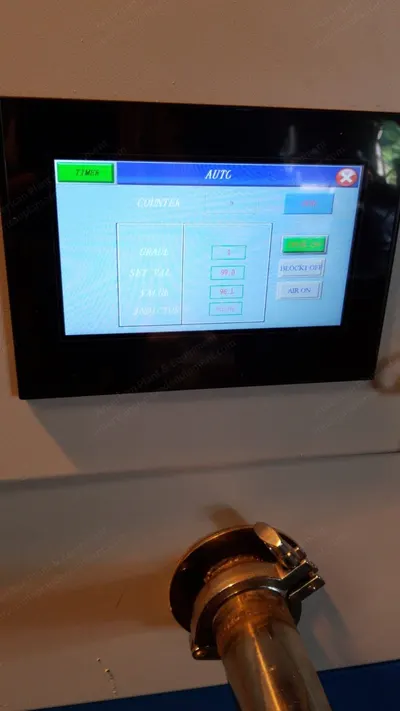

    12. Equipped with touch screen control panel
  2. Specifications
    1. Dimension: 750 mm x 800 mm x 2000 mm
    2. Voltage: 100 to 240 V, 50/60 Hz
    3. Power: 0.7 kW
    4. Accuracy: ±0.2 g
    5. Air supply: 0.5 to 0.8 MPa
    6. Weight: approx. 100 kg
    7. The filling range can be more than 100 grams depending on the mixture between down and feather
    8. Accuracy weighing results with a tolerance can be only 0.2 gram; it can be adjusted according to the production requirement and choose total error or single error from the control panel, assuring the production quality and material waste control
    9. According to different quantity and quality production requirement, the machine control panel can be set up for 100 different recipes and each recipe can be set up with up to 80 sets of different weight values for filling options
    10. High working capacity, the average weighing time can be 4 to 10 seconds (depending on the accuracy); the filling time can be adjusted flexibly
    11. The hopper is 1300 grams
    12. The measure unit is up to 50 grams; if you want to fill 100 grams, you will be filling twice in one grid
    13. If customer wants to fill feather, a larger pipe is required; 50 mm is recommended
    14. Fill per push is 100 grams at a time
  3. Condition
    1. The whole line can be handled by only 1 operator; it is very simple operation which saves on labor costs
    2. Different requirements can be considered
  4. Included
    1. Touch screen control panel
