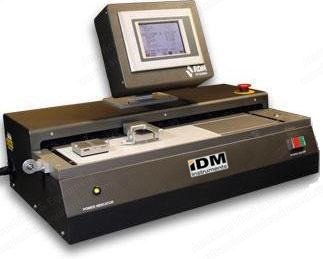

IDM Instruments, C0049, Coefficient of Friction Tester, 10-1000mm/min, Touch Screen LCD (New)

IDM Instruments, C0049, Coefficient of Friction Tester, 10-1000mm/min, Touch Screen LCD

Description

  1. Overview
    1. Performs tests to most recognized international test standards including ISO 8295 and ASTM 1894-78.
    2. Essential for measuring slip properties of packaging materials to ensure smooth running on production packaging machines or to measure the effect of coating or print on base material.
    3. Features latest design and technology for machine set up, testing, measurement and recording using touch panel screen display units.
    4. Constant, smooth lead screw driven cross arm ensures reliable and repeatable measurement.
    5. Includes vacuum suction on the bed to clamp the material and optional temperature control circuit to heat the bed for hot slip values.
    6. Provides analogue recorder output and RS232 output for chart recorder logging or computer data logging of results.
  2. Applications
    1. ISO 8295
    2. ASTM 1894-78
  3. Standards
    1. Plastic film
    2. Foils
    3. Laminates
    4. Paper
    5. Paperboard
  4. Specifications
    1. Bed material: natural anodised cast aluminium
    2. Sled material: anodised aluminium with foam contact pad with density of 0.25/cm
    3. Speed control: 10 – 1000 mm/min +/- 10 mm/min
    4. Force reading: 0-1000.0 grams +/- 0.25% Fro (other loads can be specified)
    5. C of F reading: calculated value from sled used 0-1.00 +/- 0.25% Fto
    6. Touch panel screen: LCD, 256 colour, QVGA 320 x 240 pixels, 14.8 cm diagonal viewing, touch screen, analogue resistive (gonze) with serial controller, processor Geode SC2200, 266 MHz MMX compatible, 2 mbyte on board flash memory for firmware, 64 MB Dram main memory
    7. Vacuum: air pressure of 80 – 100 psi supply with venture generated vacuum pulling +90% vacuum
    8. Temperature: ambient to 100°C +/- 5°C (when specified)
    9. Drive: DC synchronous motor/gear box driving ball screw and crosshead
    10. Speed feedback: via in line encoder
    11. Output: RS232 C
    12. Power: 80 – 240 VAC single phase 50/60 Hz 0.75 kW max
  5. Benefits
    1. Easy to use
    2. Fast results
    3. Accurate
  6. Options
    1. Temperature circuit for hot slip measurement
    2. Software package for data logging via RS232 link
    3. Ski sled 100 g for measurement of stainless steel on test material
    4. Bed inserts to give test comparison with different metals
