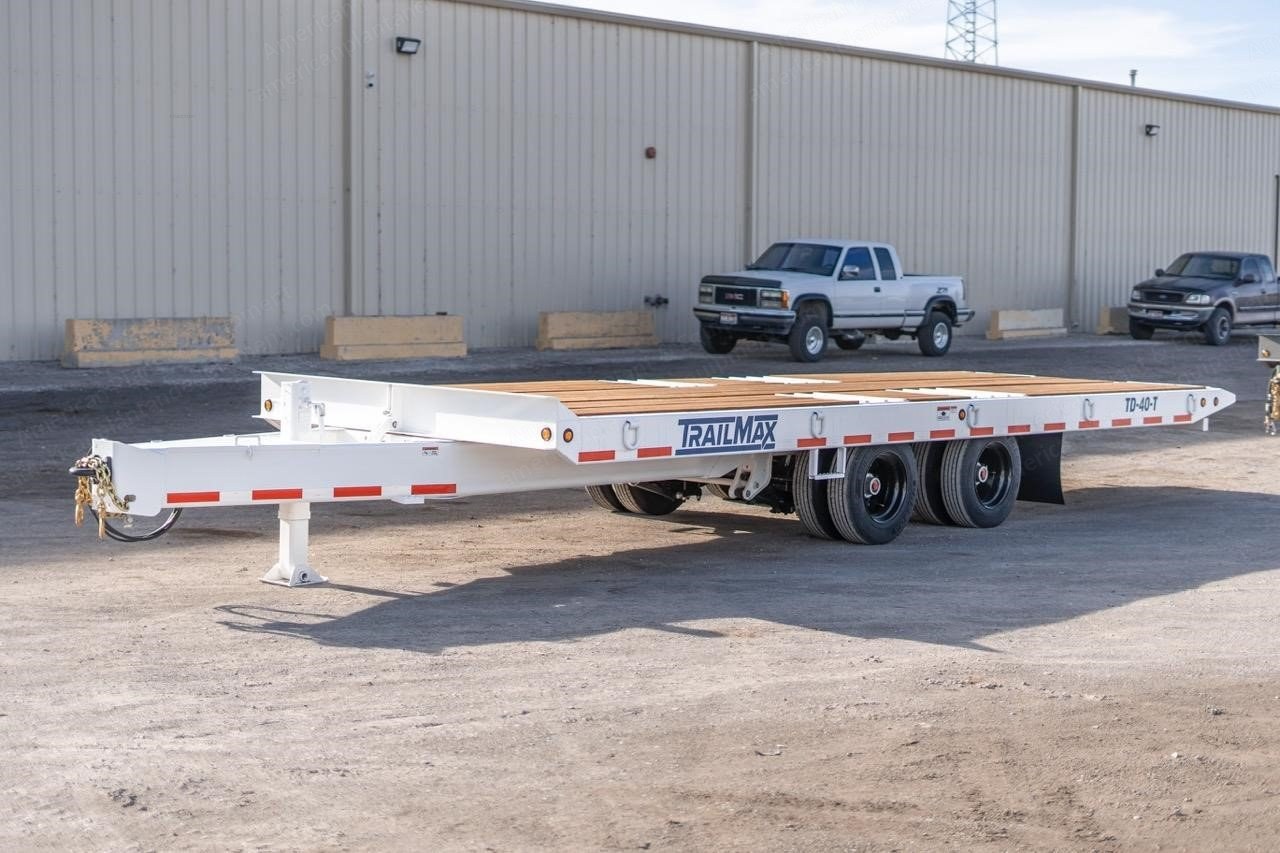

Description Overview Machine type: deck over tilt trailer, tandem axle, pintle eye hitch, air brakes Year: 2026 Condition: new Model designation: TD-40-T, deck configuration 5 plus 25 Ratings And Capacities Gross vehicle weight rating 48,600 lb (22,044 kg) Distributed payload capacity 38,130 lb (17,296 kg), also stated as 19.07 ton Base trailer weight 10,470 lb (4,749 kg) Axles: 2 each, 20,000 lb (9,072 kg) capacity Hitch: adjustable pintle eye, 100,000 lb (45,359 kg) capacity Landing gear: 2 speed, 35,000 lb (15,876 kg) capacity Deck And Frame Deck dimensions: 25 ft (7,620 mm) tilt deck with a 5 ft (1,524 mm) stationary deck Deck type: tilt; composition: steel; floor type: wood floor Decking: 2 in (51 mm) rough sawn fir Frame construction: tubular subframe with high tensile perimeter rails Crossmembers: 5 in (127 mm) tubular on 12 in (305 mm) and 16 in (406 mm) centers Deck latch: over center type with tension adjust and safety pin Cushion cylinder: 5 in x 12, metered flow for cushioning Load securement: 18 each, 9 per side, 2 way chain slots and stake pockets Storage compartment in the tongue with a locking lid Safety chains: 2 each, 3/8 in x 36 in grade 70, with hooks and safety latches Running Gear And Brakes Number of rear axles: tandem; axle type: fixed Suspension: Hutch H-9700 tandem with axle alignment Brakes: 12-1/4 in x 7-1/2 in air brakes with maxi brake chambers on both axles, 2S/2M ABS Drums: steel, outboard type Hubs: oil bath type, 8 on 275 mm (10.8 in) bolt circle Wheels: 17.5 in x 6.75 in all steel disc, black Tires: 215/75R 17.5 radial, load range H Finish And Electrical Finish: media blast, 2 part epoxy primer and urethane enamel top coat Color: white, grey or black Electrical: sealed wire harness Dimensions Length 36 ft 8 in (11,176 mm) Width 102 in (2,591 mm)
