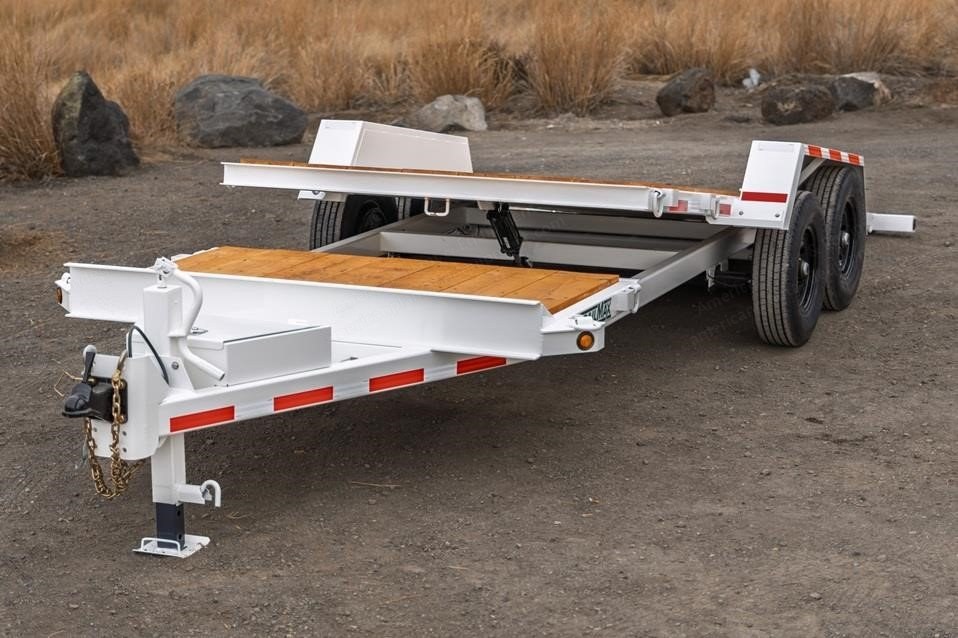

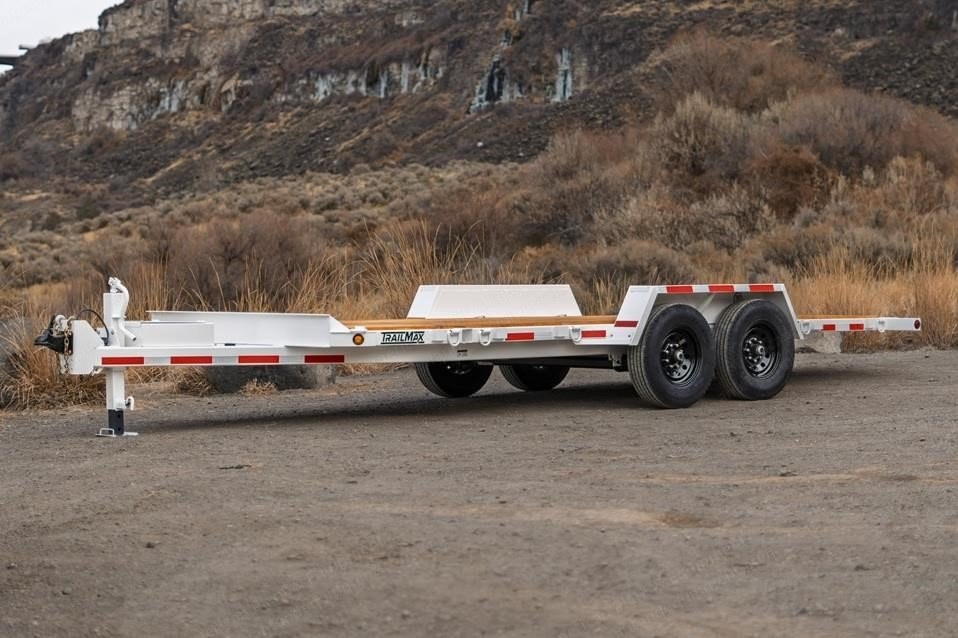

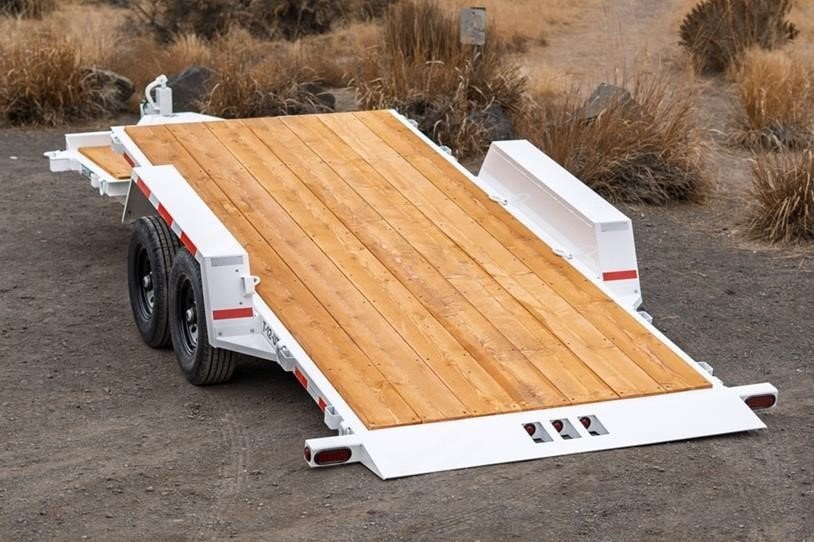

Description Overview Machine type: utility tilt trailer, tandem axle, 6 plus 16 deck, electric brakes Year: 2026 Condition: new Ratings And Capacities Distributed capacity 12,260 lb (5,561 kg) Base trailer weight 3,840 lb (1,742 kg) Axles: 2 each, 7,000 lb (3,175 kg), with rubber torsion suspension Coupler: 2-5/16 in ball coupler or pintle eye Jack: 12,000 lb (5,443 kg) capacity with drop foot Deck And Frame Deck: 16 ft (4,877 mm) tilt deck with a 6 ft (1,829 mm) stationary deck Composition: steel; floor type: wood floor; type of neck: fixed Decking: 2 in (51 mm) rough sawn fir Frame: tubular subframe and rails Crossmembers: 2-1/2 in (64 mm) tubular Deck lock: over center type with tension adjustment and safety pin Cushion cylinder: 3 in x 8 in (76 mm x 203 mm) with internal metered flow, which cushions loading and unloading Tie downs: 18 each, 9 per side, 5/8 in steel D rings Stake pockets: 14 each, 7 per side Combination open tool tray and lockable toolbox Safety chains: 5/16 in grade 70 cadmium plated, with slip hooks and safety latches Running Gear And Brakes Number of rear axles: tandem Brakes: 12 in x 2 in electric brakes with a 12 volt sealed breakaway system Wheels: 16 in x 6.00 in, 8 hole disc type Tires: 235/80R 16 radial, load range G Finish And Electrical Paint: 2 component epoxy primer with polyaspartic topcoat; colors white, black or gray Electrical: sealed electrical wire harness Dimensions Overall length 27 ft 7 in (8,407 mm)
