MTU, 1000RXC6DT2, 2008, 1000 kW Standby Diesel Generator Set, 277/480 V, 60 Hz, 948 Hours

MTU, 1000RXC6DT2, 2008, 1000 kW Standby Diesel Generator Set, 277/480 V, 60 Hz, 948 Hours

Description

  1. Overview
    1. MTU model 1000RXC6DT2 standby diesel generator set
    2. Year: 2008
    3. Running hours: 948
    4. Rating: standby

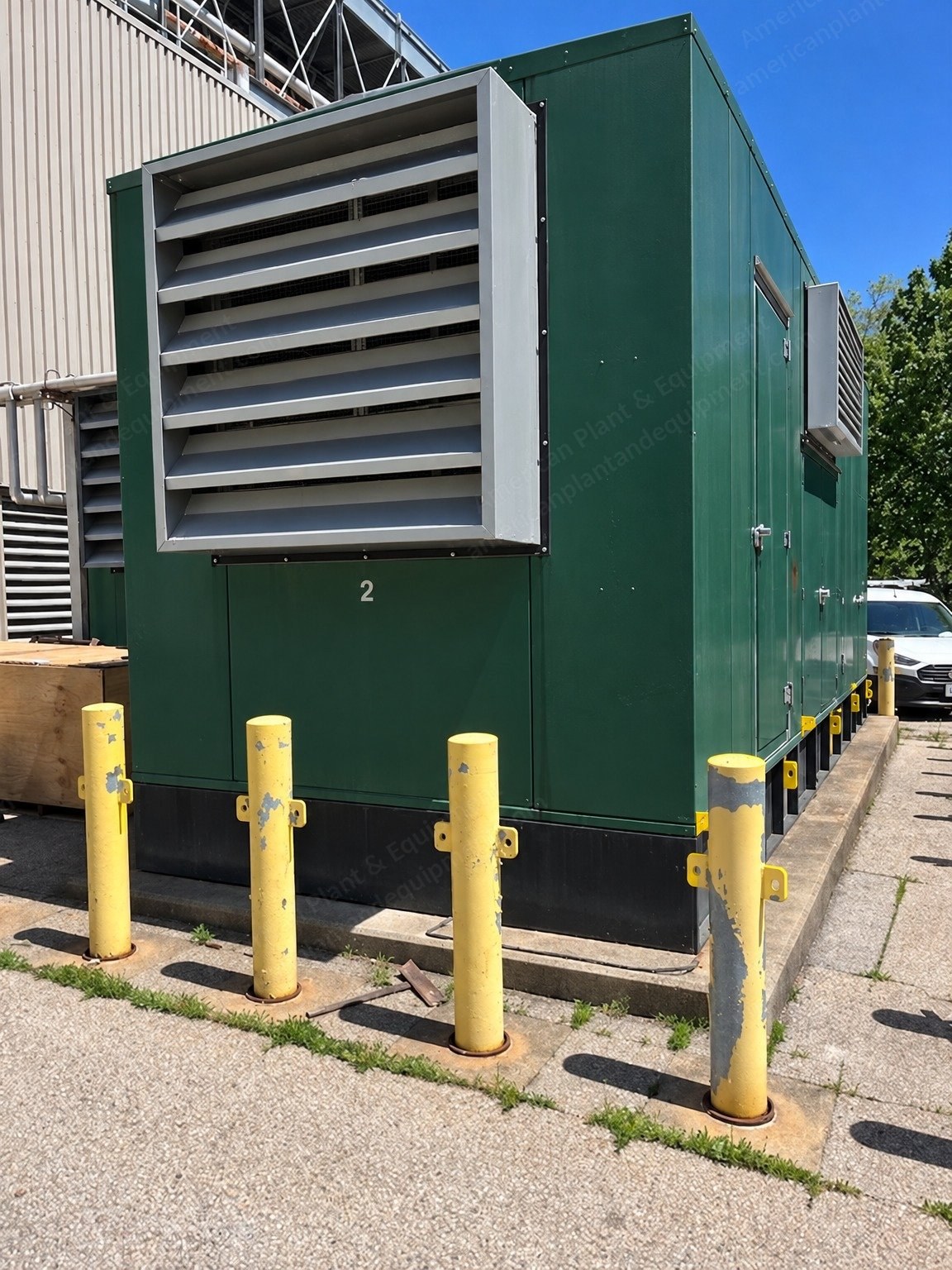

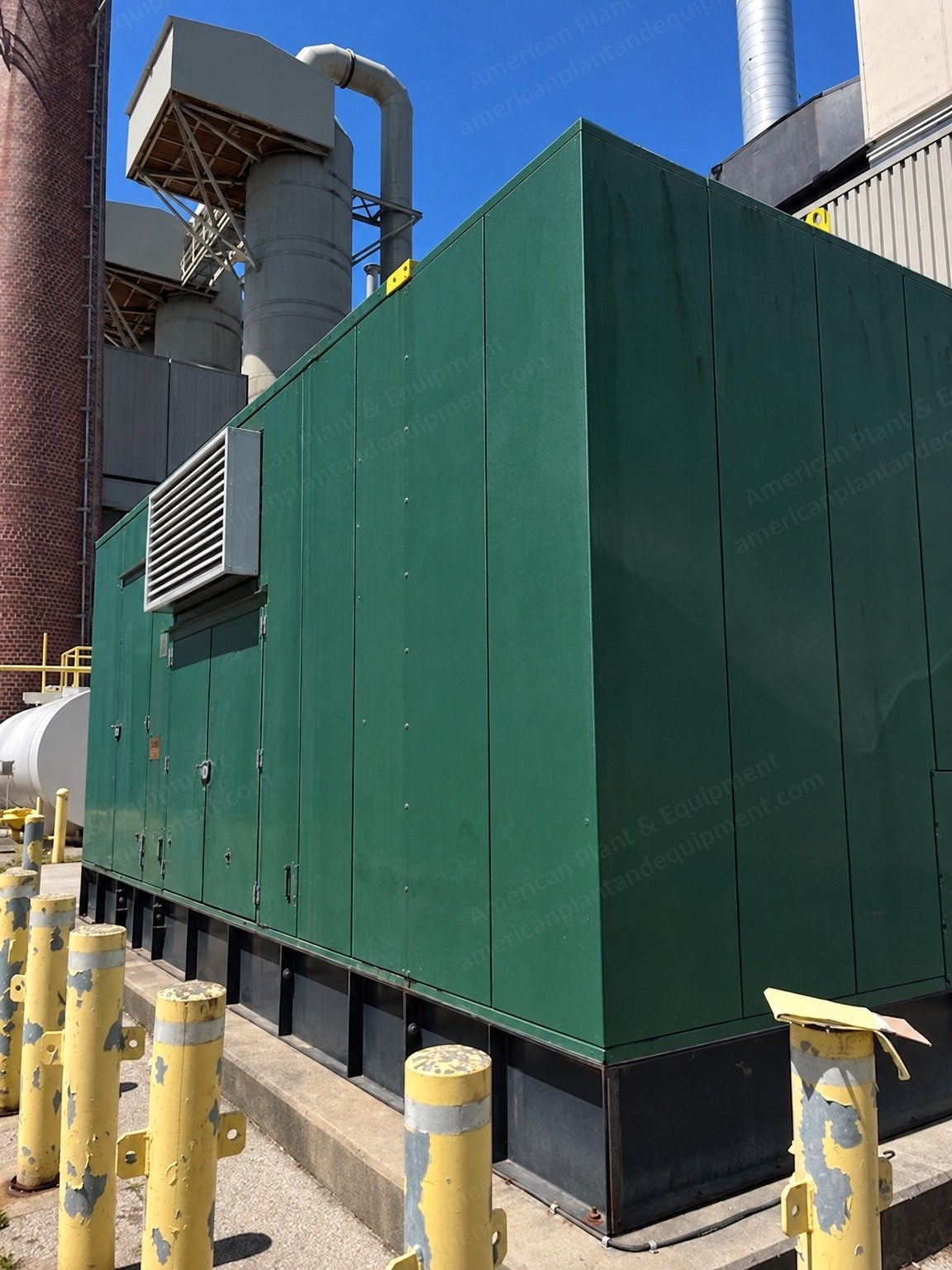

    5. Polar sound attenuated, insulated enclosure with weatherization package
    6. Belly fuel tank, 600 gal (2,271 L)
    7. 1 unit available

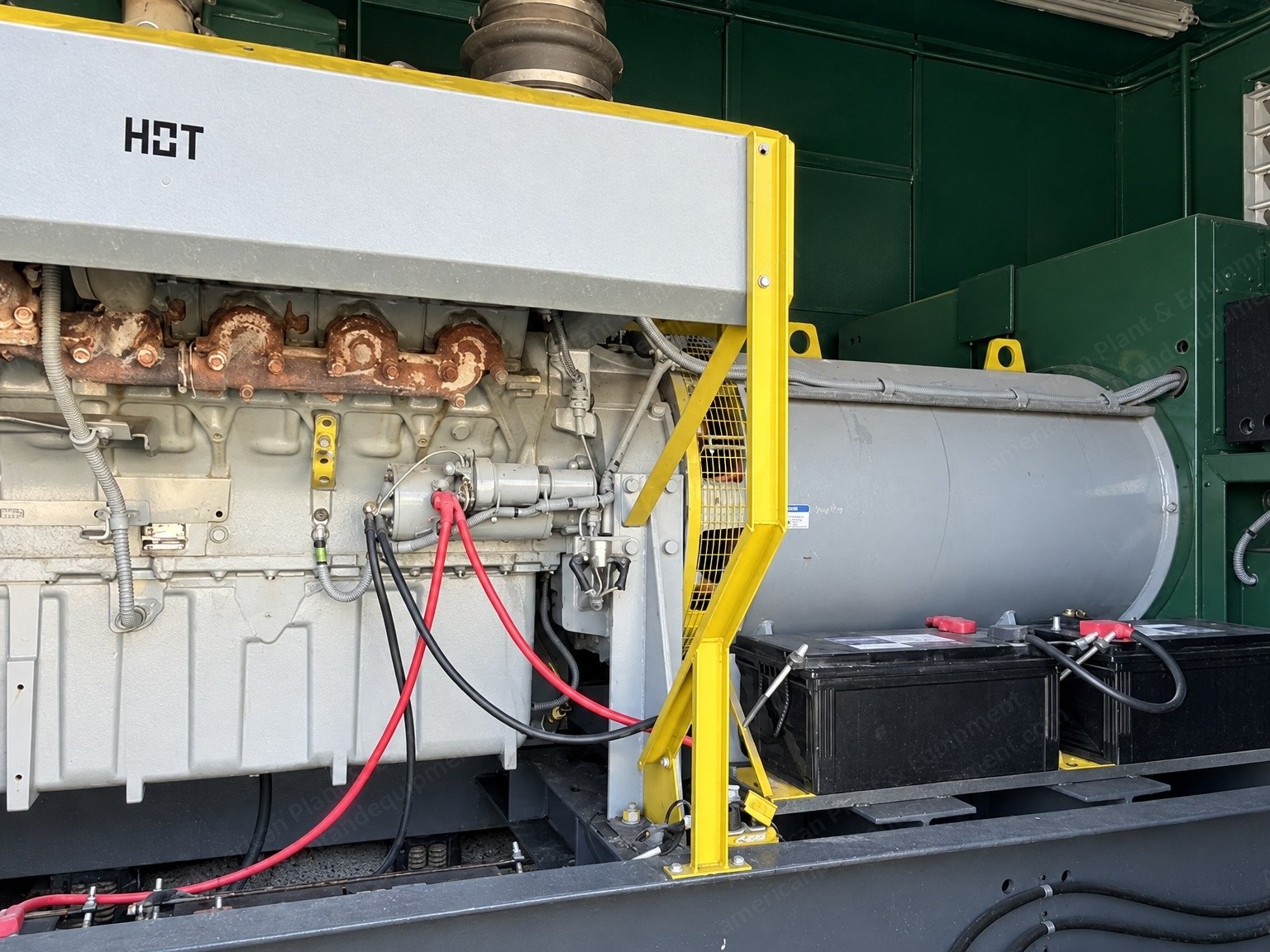

  2. Engine
    1. Engine: MTU 16V-2000
    2. Speed: 1,800 rpm
  3. Generator Set Ratings
    1. Standby output: 1,000 kW / 1,250 kVA
    2. Voltage: 277/480 V, three phase, four wire
    3. Current at 277/480 V: 1,504 A
    4. Frequency: 60 Hz
    5. Power factor: 0.8
    6. Also rated for 120/240 V single phase; 120/240 V three phase at 3,007 A; and 120/208 V three phase at 3,470 A
    7. Exciter: 2.2 A, 55 V
    8. Insulation class: H
    9. Temperature rise: 130 C (266 F)
    10. UL 2200 listed and CSA certified
  4. Alternator
    1. Marathon Electric MagnaMAX DVR synchronous AC generator
    2. Model: 575RSL4802, type RSL, frame 575
    3. Standby service: 1,060 kW, 1,325 kVA at 277/480Y V, 1,594 A
    4. Three phase, 1,800 rpm, 60 Hz
    5. Enclosure: open
    6. Power factor: 0.8 at 27 C (81 F) ambient
    7. Insulation class H, rise by resistance 130 C (266 F)
    8. Field: 2.2 A, 55 V
    9. Voltage regulator: DVR2000E
    10. Exciter end bearing: A-7812R-80
    11. Space heater: 120/240 V, 500 W, 60/50 Hz, single phase
  5. Controls
    1. Digital engine control panel with run, off and automatic selector
    2. Alarm silence and lamp test functions
    3. Total run time display
    4. Emergency stop push button
  6. Condition
    1. Used
    2. 948 running hours
    3. Recently serviced by an MTU technician, including the installation of new batteries
    4. Offered subject to prior sale
