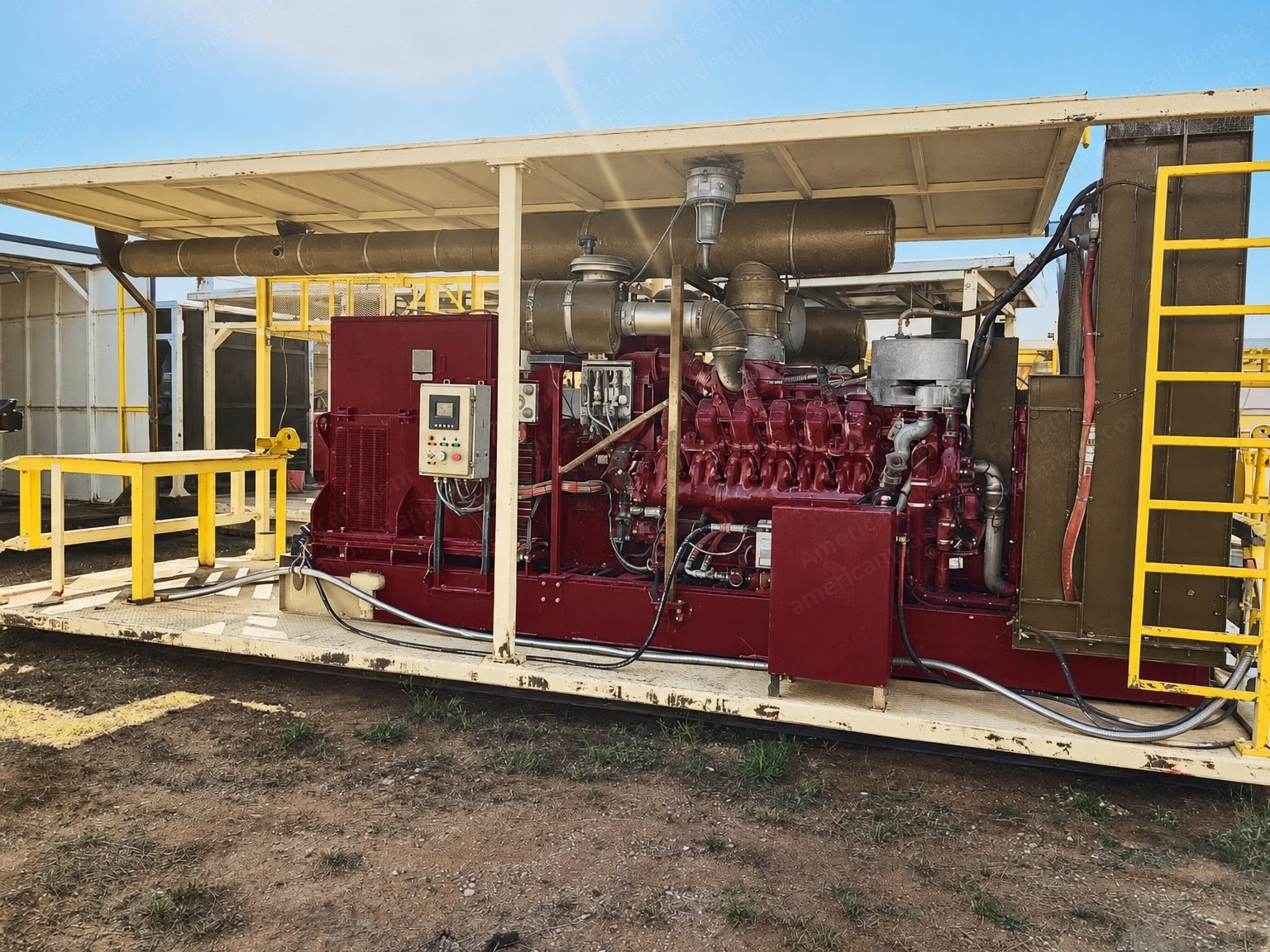

MTU, HFC7632-64E, AC Generator Set, 1,500 kW, 1,833.3 kVA, 600 V, 60 Hz

Description

Overview
1. MTU HFC7632-64E alternating current generator set, rated 1,500 kW and 1,833.3 kVA.
2. Driven by a Detroit MTU 12V4000 diesel engine.
3. 600 V, 60 Hz, 1,200 rpm.

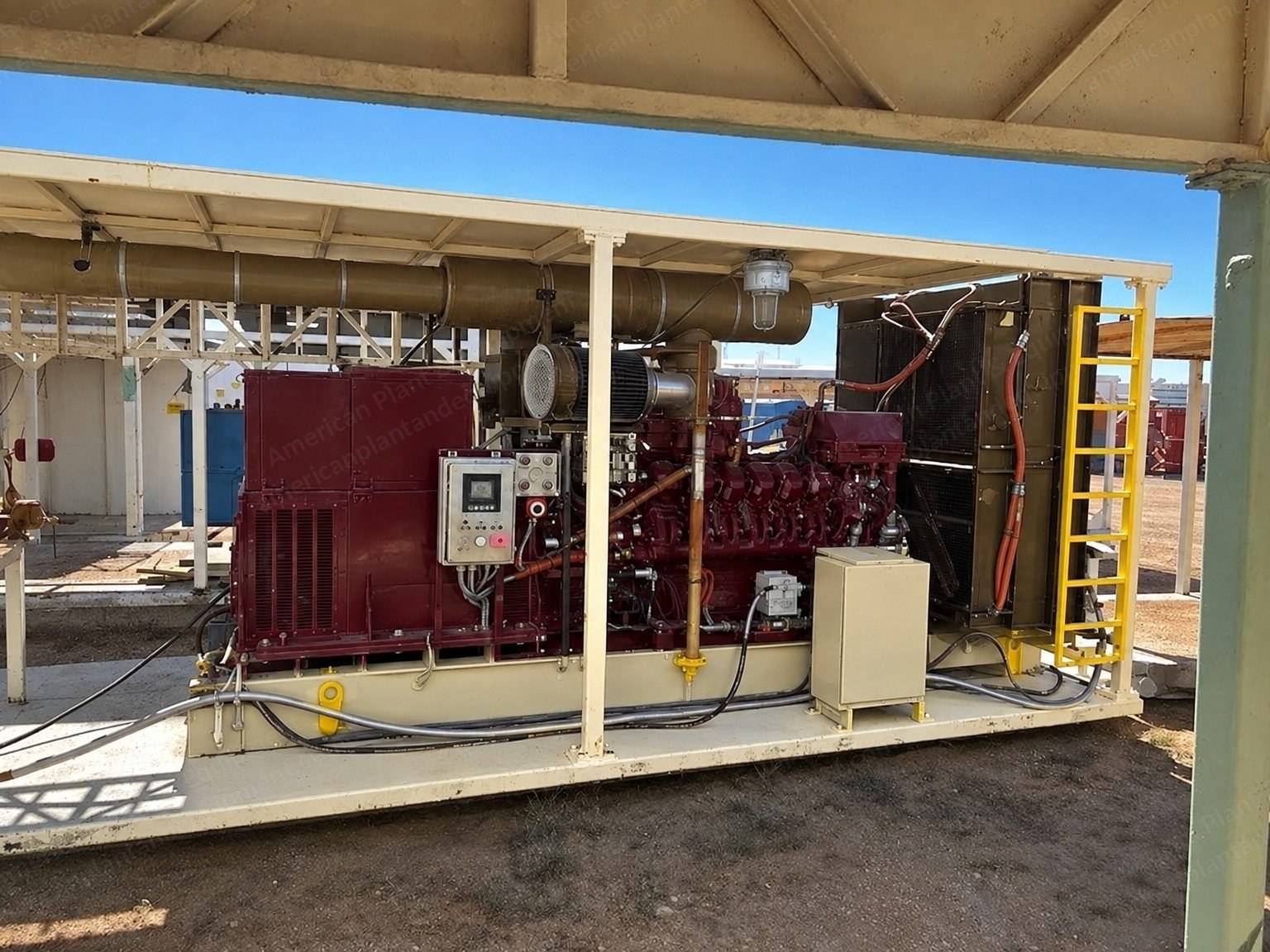

4. Complete on a covered skid, 10 ft wide by 28 ft long (3.05 m by 8.53 m).
Alternator
1. Hyundai, type HFC7 632-64E.
2. 1,833.3 kVA.
3. 600 V.
4. 1,764.1 A.
5. 60 Hz.
6. 1,200 rpm.
7. Protection IP 23.
8. Insulation class F.
9. Weight 6,100 kg (13,448 lb).
10. Made in Korea, rating plate dated August 2008.
Engine

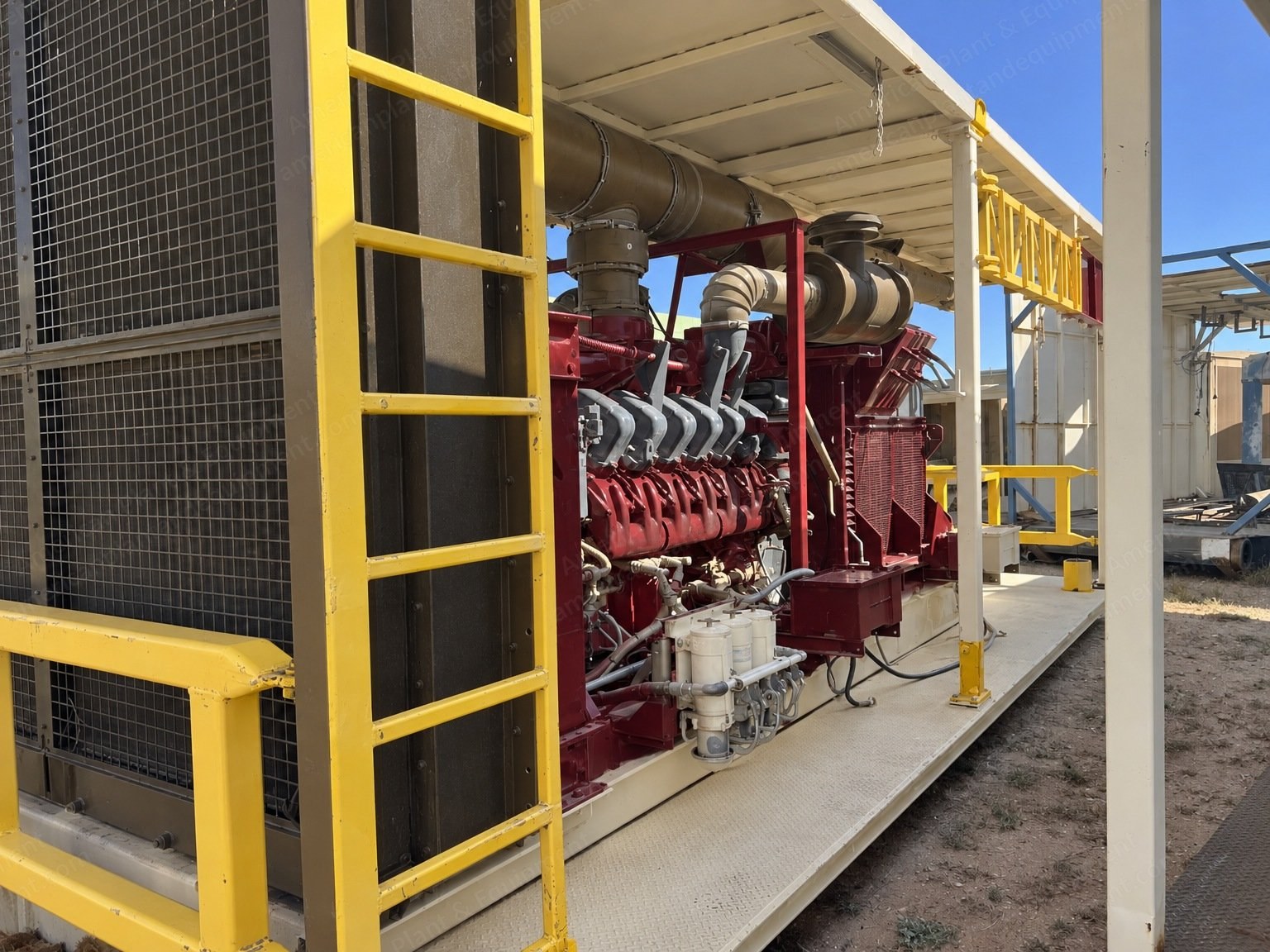

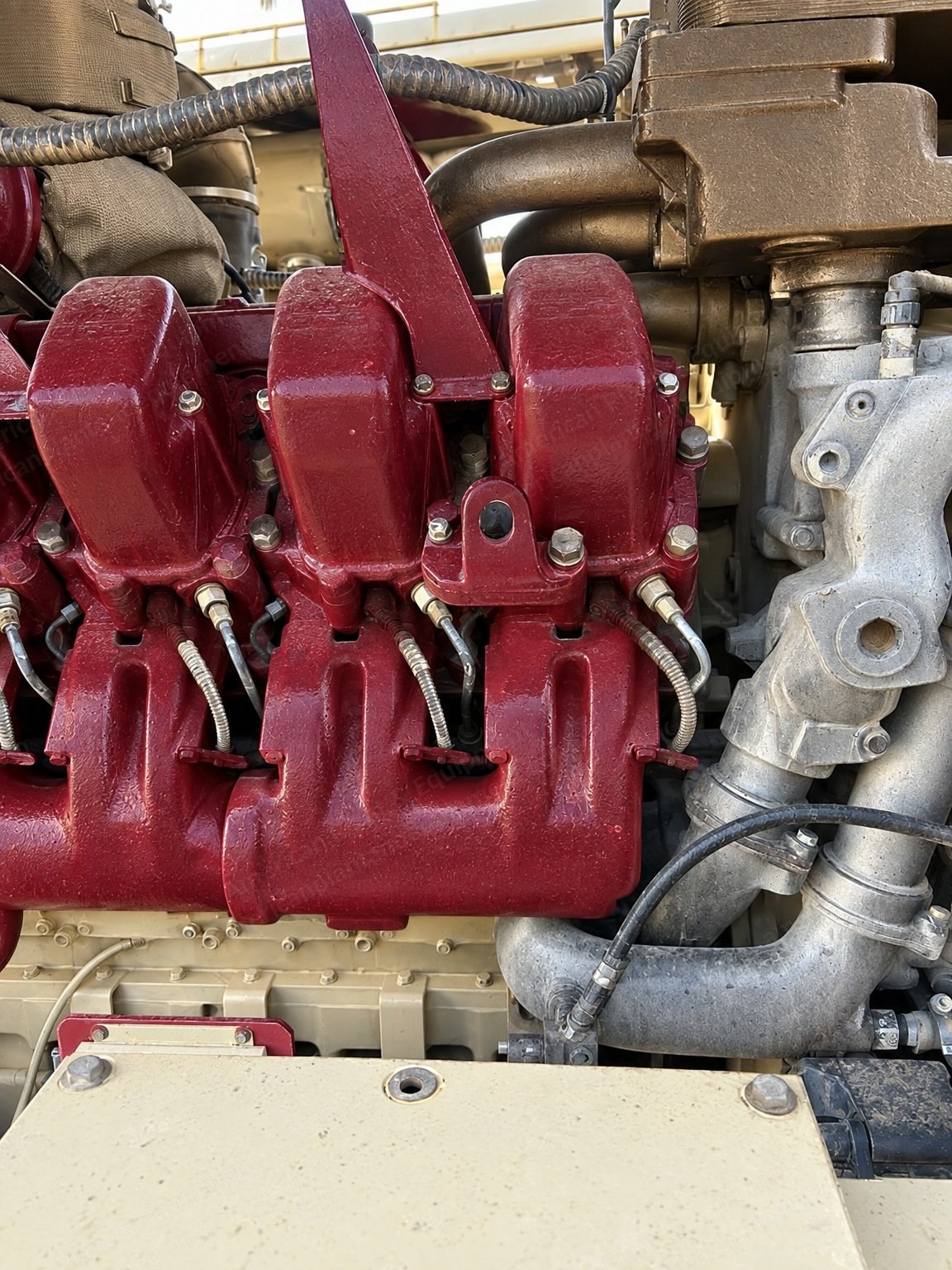

1. Detroit MTU 12V4000, model series 4000.
2. Tier 2.
3. Rated 1,910 kW (2,561 hp) at 1,800 rpm.
4. Displacement 57.2 liters (3,491 cu in).
5. Engine family 7MDDL95.4XTR.
6. Engine rating plate dated June 2007.
Scope of Supply
1. Radiator.
2. Air starter.

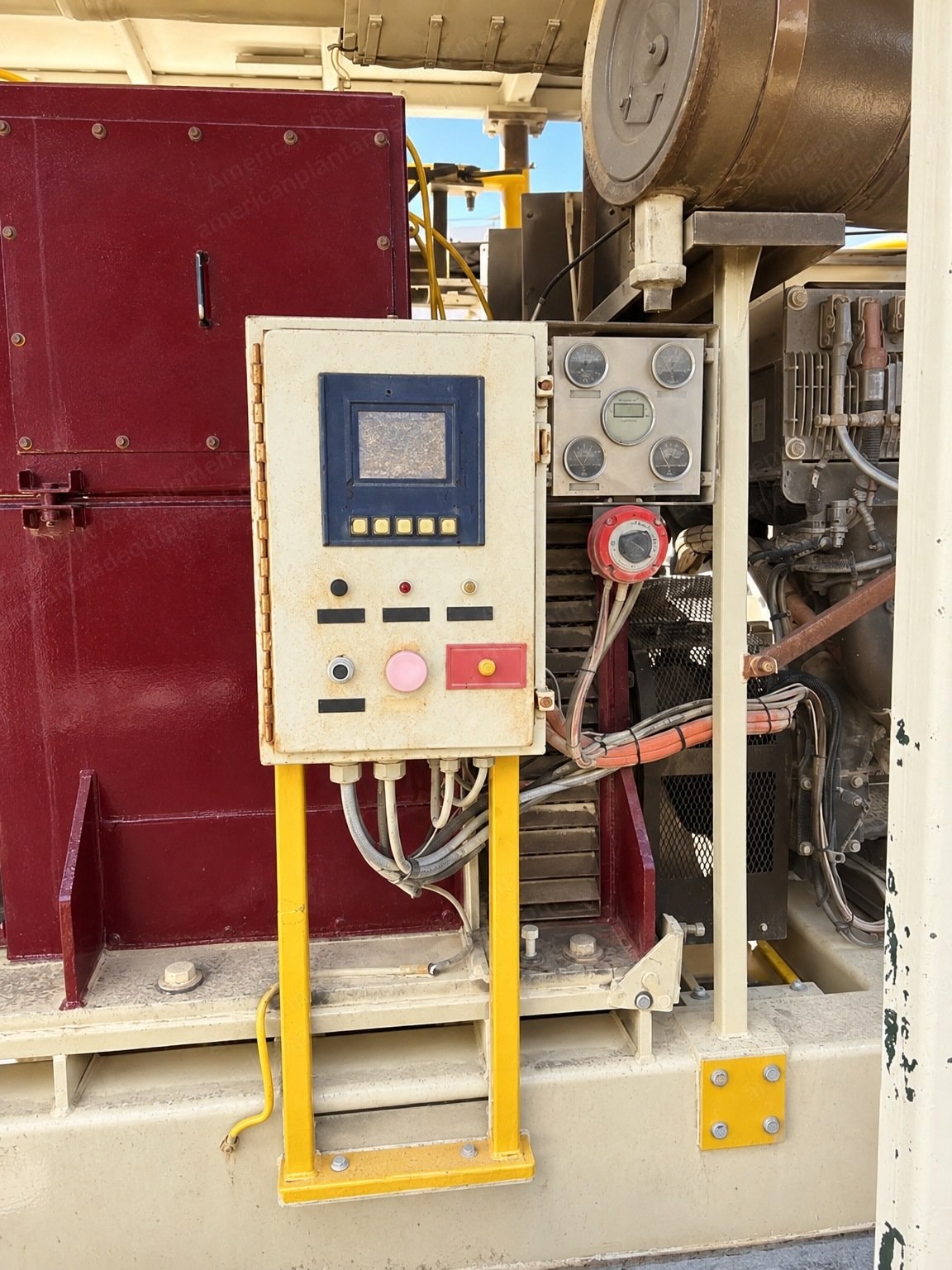

3. Gauges.
4. Work bench, 4 ft by 8 ft (1.22 m by 2.44 m), with vise.
5. All mounted on a covered skid, 10 ft wide by 28 ft long (3.05 m by 8.53 m).
Condition
1. Used.
