Excel, 2R10, 2026, Two-Ram Baler, 255,254 lbs Compaction Force, Dual 50 HP (New)

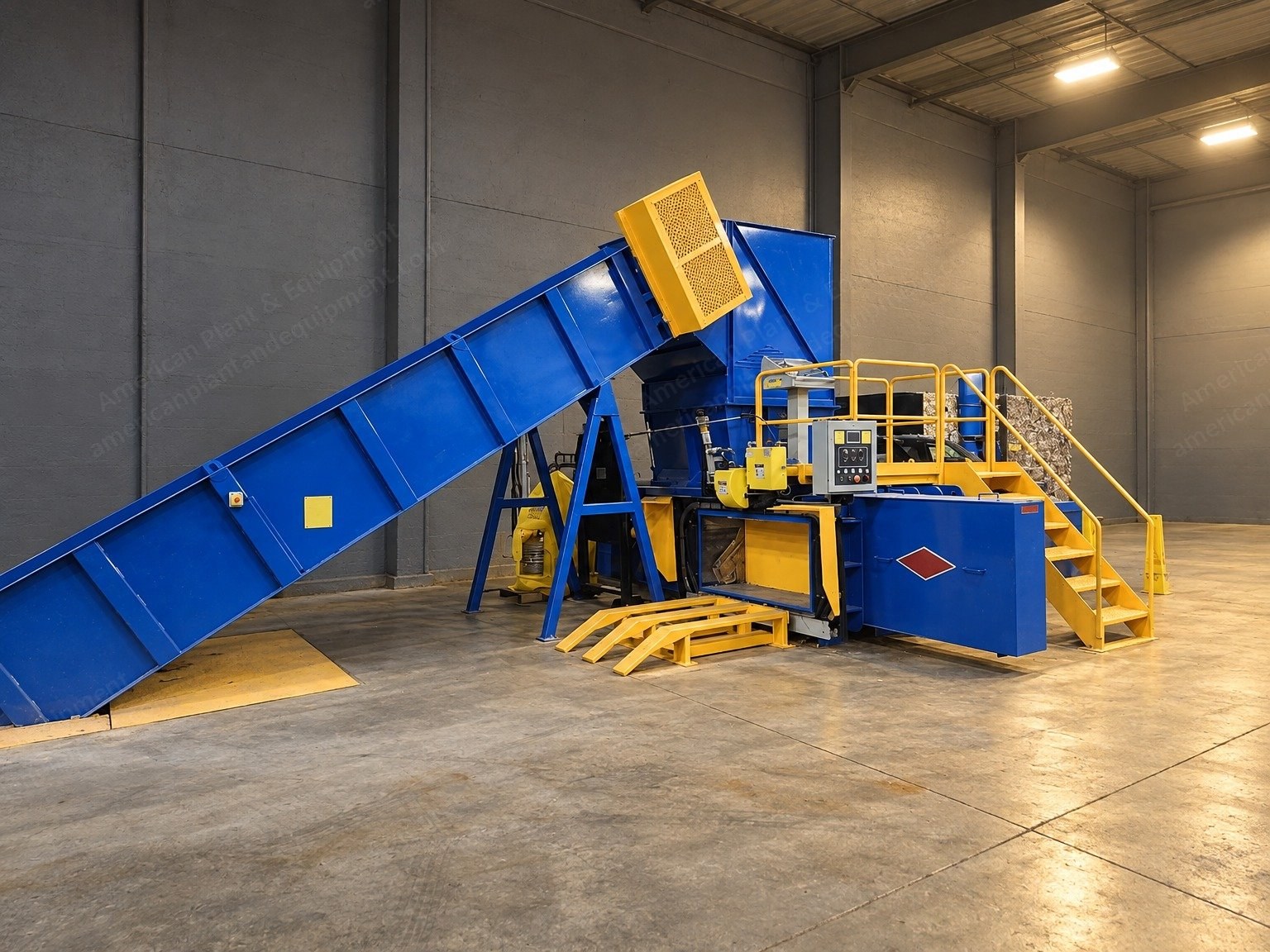

Excel, 2R10, 2026, Two-Ram Baler, 255,254 lbs Compaction Force, Dual 50 HP

Description

  1. Overview

    1. New equipment, built to order

    2. The 2026 Excel 2R10 two-ram baler is an advanced, automated baling solution designed for efficient recycling and waste management in industrial settings

    3. Engineered with interlocking construction and a state-of-the-art control system, it ensures durability and reliability while reducing downtime

    4. The baler operates automatically, eliminating the need for a full-time operator, which contributes to significant labor savings

    5. Capable of processing a wide range of materials such as office paper, newspapers, PET, HDPE and aluminum cans

  2. Specifications

    1. Manufacturer: Excel

    2. Model: 2R10 Two-Ram Baler

    3. Year: 2026

    4. Condition: New

    5. Feed opening: 40 in W x 90 in L

    6. Bale weight: up to 2,500 lbs (1,134 kg)

    7. Bale size: 60 in L x 45 in W x 30 in H

    8. Cycle time: 16 seconds

    9. Main cylinder: 10 in (254 mm)

    10. Eject cylinder: 9 in (229 mm)

    11. Bale separation door cylinder: 6 in (152 mm)

    12. Total compaction force: 255,254 lbs (115,781 kg)

    13. Total ram face pressure: 216 psi

    14. Hydraulic system pressure: 3,000 psi

    15. Motor size: dual (2) 50 HP (37.3 kW) motors

    16. Electrical: 3 phase, 480 V, 60 cycle

    17. Wire tier: Accent 470

    18. Total weight: 58,000 lbs (26,308 kg)

  3. Features and Equipment

    1. Dual (2) 50 HP (37.3 kW) TEFC motors, 3 phase, 60 Hz

    2. Left-hand or right-hand eject

    3. Excel Autonetics with an electronic display for precise ram positioning

    4. Accent 470 Wire Tie Systems automatic tier

    5. Industrial-hardened logic controller

    6. Replaceable bolt-in Hardox 400 wear liners

    7. 600-gallon (2,271 L) hydraulic reservoir

    8. Automatic bale release door

    9. NEMA 12-rated enclosures

    10. On-line diagnostics capability

    11. Castle Key safety interlocking entry system

    12. Upper and lower photo eyes

    13. Separation capabilities for different materials

  4. Approvals, Warranty and Options

    1. UL and CUL approved; CE available

    2. Factory one (1) year warranty

    3. Custom options such as integrated conveyors for a turnkey system are available
