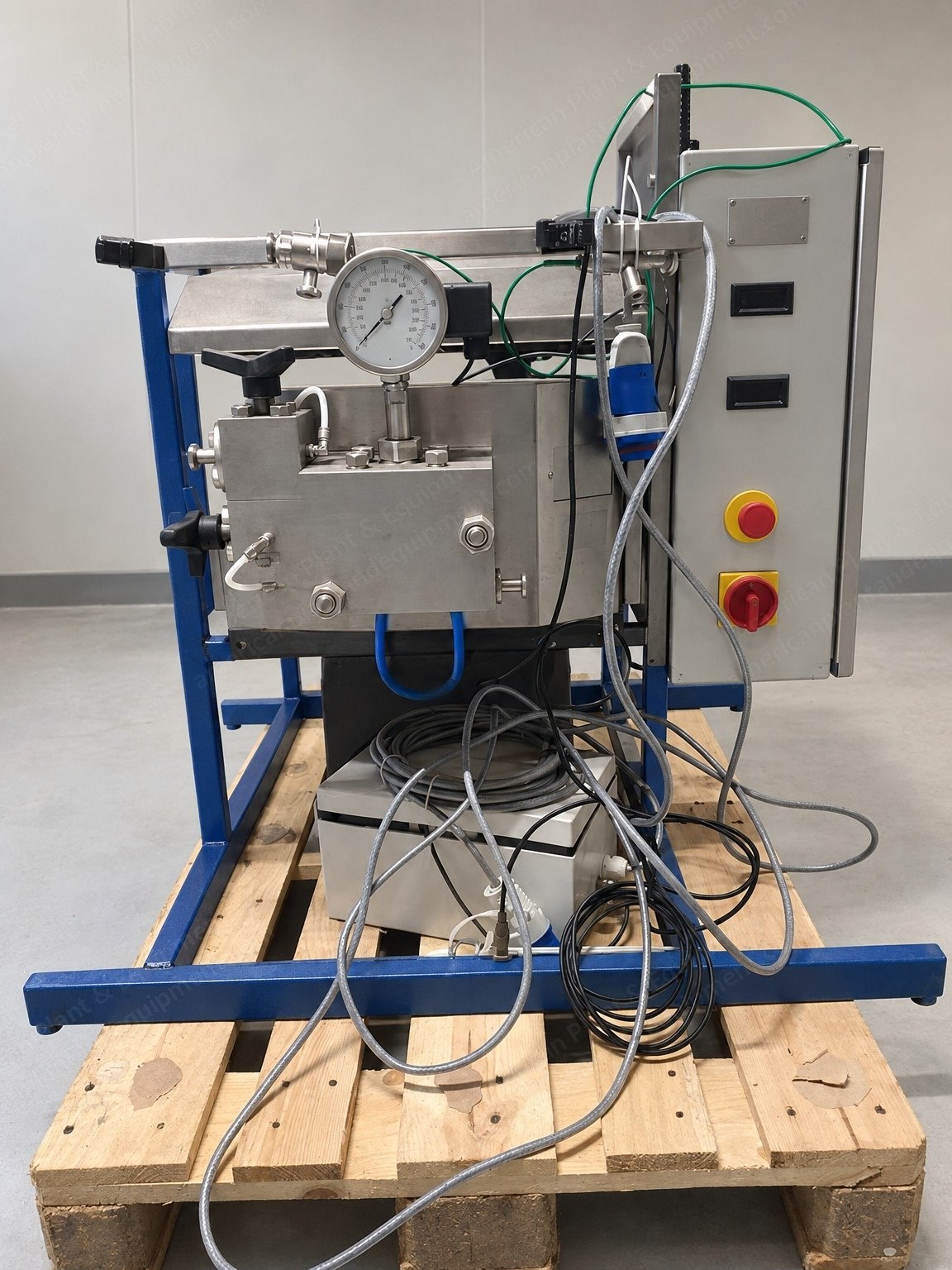

GEA Niro Soavi, NS2002H, 2009, Laboratory Homogenizer, 30 L/h at 600 bar

Overview

1. Compact, high-pressure laboratory homogenizer designed for research and development, pilot trials and small-scale production

2. Laboratory and bench-scale design, compact and easy to install in a development laboratory

3. Delivers efficient particle size reduction and stable emulsions, suited to demanding formulations and scale-up work

4. Designed for continuous operation with stable, reliable performance

Specifications

1. Manufacturer: GEA Niro Soavi

2. Model: NS2002H

3. Year: 2009

4. Capacity: up to 30 L/h (30 dm3/h, 7.9 US gal/h), depending on product and pressure

5. Working pressure: up to 60 MPa (600 bar, 8,700 psi)

6. Number of stages: 2

7. Stainless steel product contact parts for hygiene and corrosion resistance

8. Adjustable homogenizing pressure for precise process control and repeatability

Condition

1. Used, in very good condition

2. Available immediately

Included

1. Tubular stainless steel support frame

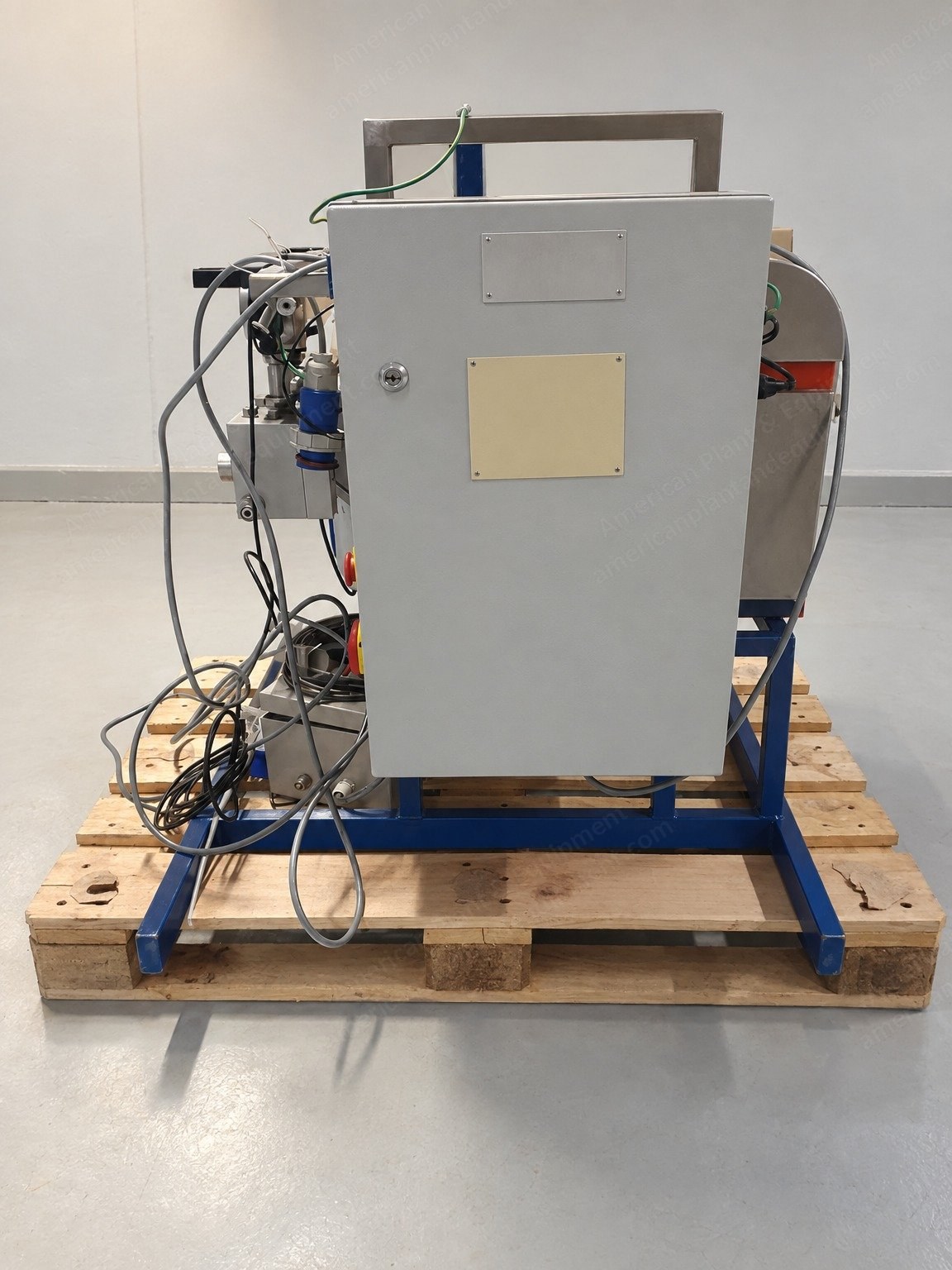

2. Homogenizer control cabinet with a homogenizing line pressure indicator

3. Homogenizing feed temperature indicator

4. Emergency stop and isolator switch

5. Pressure gauge on the homogenizing block

Applications

1. Dairy: milk, cream, flavored dairy beverages

2. Food and beverage: sauces, dressings, juices, nutritional drinks

3. Cosmetics and personal care: creams, lotions, gels, serums

4. Pharmaceutical and biotechnology: emulsions, suspensions, nutraceuticals, pilot batches

Benefits

1. Fine and uniform particle size for improved product stability

2. Enhanced texture, mouthfeel and visual appearance

3. Low product hold-up volume, suited to trials and high-value products

4. Easy operation and cleaning, suitable for frequent product changeovers
