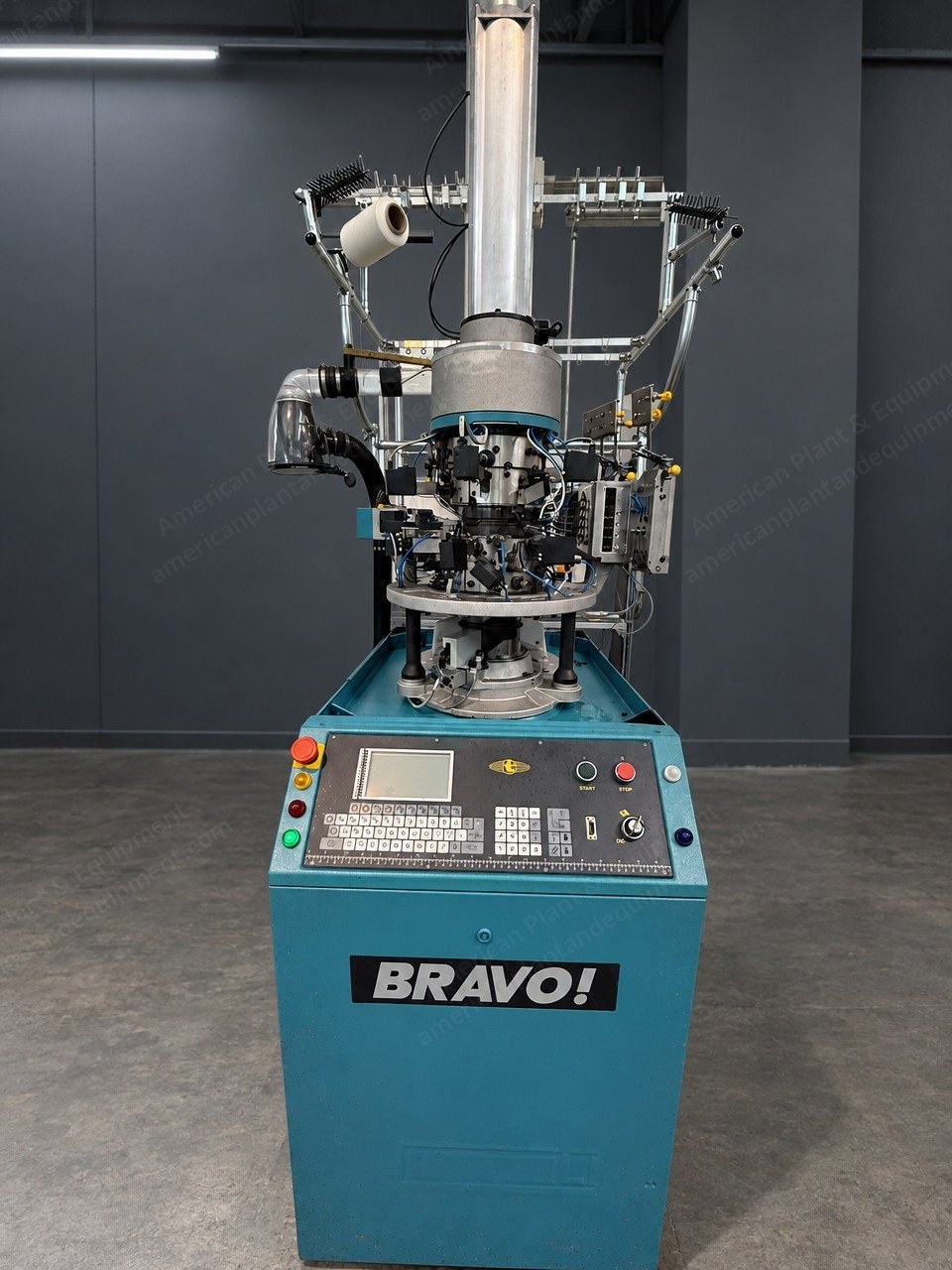

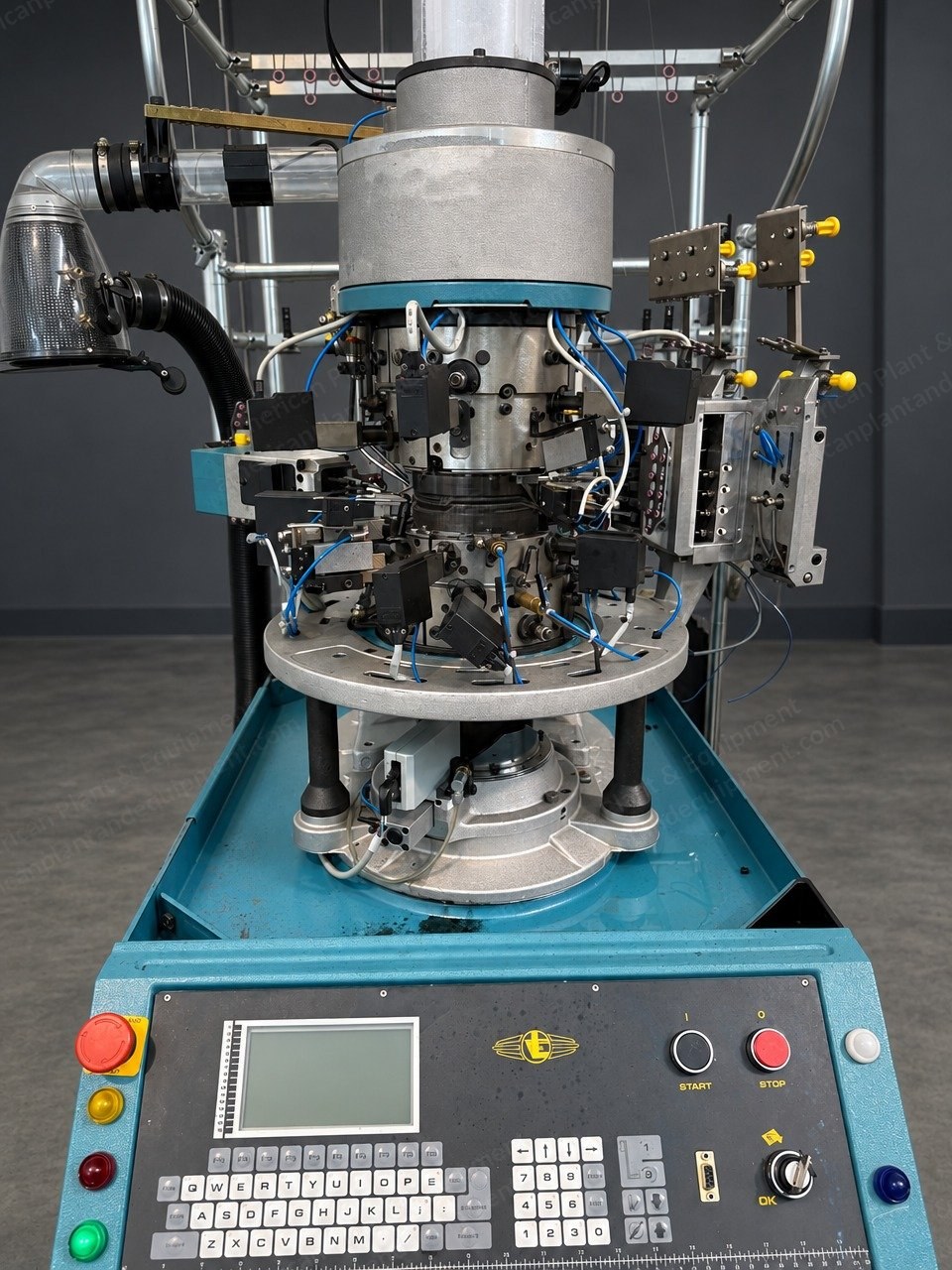

Lonati, Bravo 862 L, 1999/2000, Double Cylinder Sock Knitting Machine, 4.5 in x 84 Needles, 6 Gauge, 2 Feeds, Links Derby

Lonati, Bravo 862 L, 1999/2000, Double Cylinder Sock Knitting Machine, 4.5 in x 84 Needles, 6 Gauge, 2 Feeds, Links Derby

Description

  1. Overview
    1. Lonati Bravo 862 L double cylinder sock knitting machine
    2. Knitting: links derby
    3. Year: 1999/2000
  2. Specifications
    1. Cylinder diameter: 4 1/2 in
    2. Needles: 84
    3. Gauge: 6
    4. Feeds: 2
    5. Two-feed double cylinder machine for socks and tights in links and derby plain knit, with reciprocated heel, and tubular socks
    6. Individual needle selection for links-links and derby
    7. 2 yarn finger blocks with electro-pneumatic control: 6 yarn fingers on the first feed, 2 yarn fingers on the second feed
    8. Direct motor-to-cylinder drive via gears
    9. Fabric adjustment by step motor, automatic sock turning device
    10. Electronic sock programming on a computer, transferred to the machine by computer or FDU
    11. Speeds at gauge 6: derby 280 rpm, links 230 rpm, heel and toe 240 rpm
    12. Socks produced on two feeds with single-feed reciprocated heel and toe

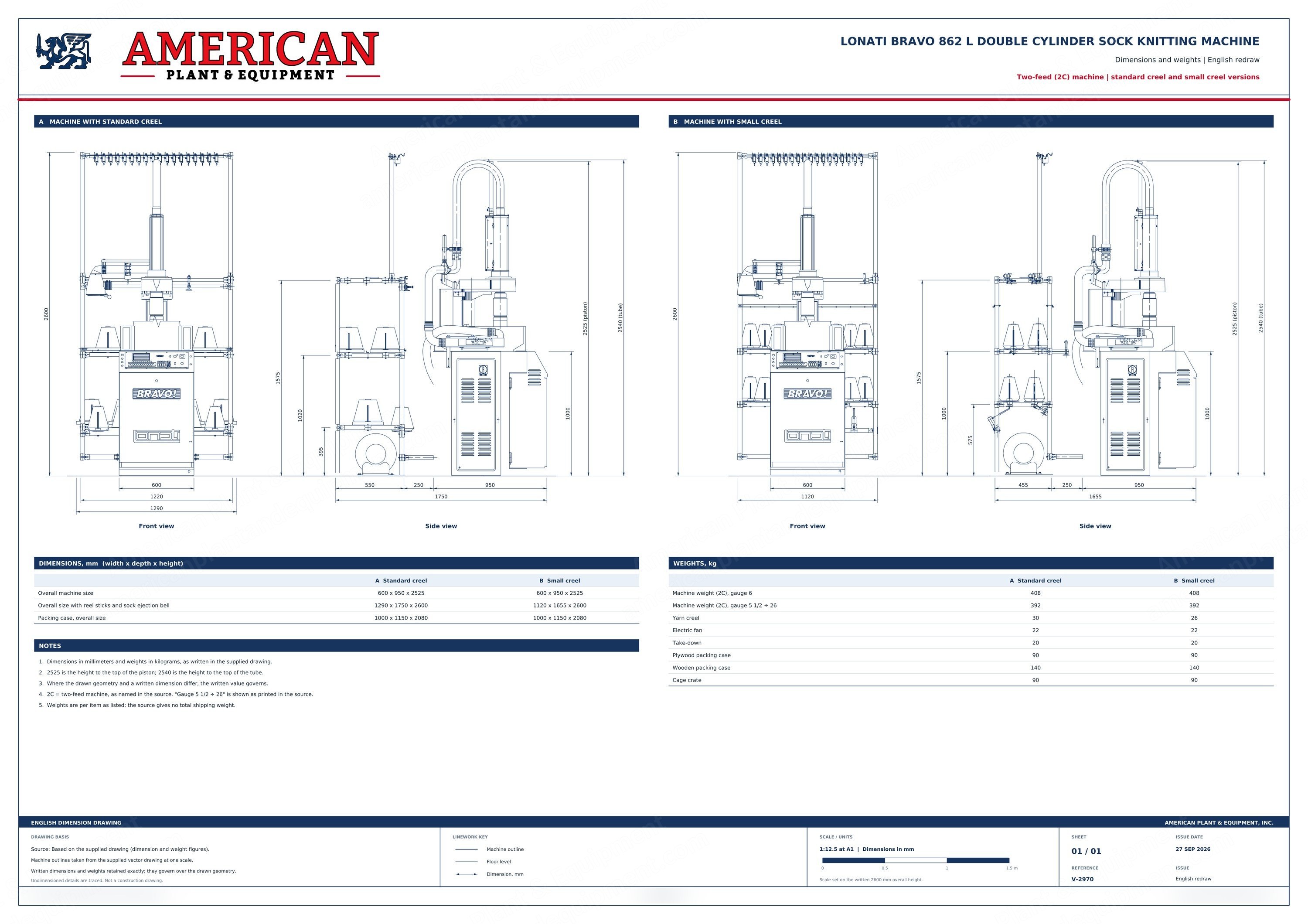

  3. Dimensions and weight
    1. Overall machine size: 600 x 950 x 2525 mm
    2. Overall size with reel sticks and sock ejection bell (standard creel): 1290 x 1750 x 2600 mm
    3. Machine weight (2 feeds, gauge 6): 408 kg
  4. Utilities
    1. Compressed air: dry and filtered, operating pressure 7 atm
    2. Average compressed air consumption: 130 NL/min per sock
  5. Condition
    1. Reconditioned
    2. Renewed in 2026
    3. Tested with a sample sock
    4. Ready for production
  6. Equipment
    1. New creel
    2. Bell
  7. Options on request, at extra cost
    1. Filter
    2. Fan
  8. Support
    1. Spare parts available
    2. Technical support available before and after the sale
