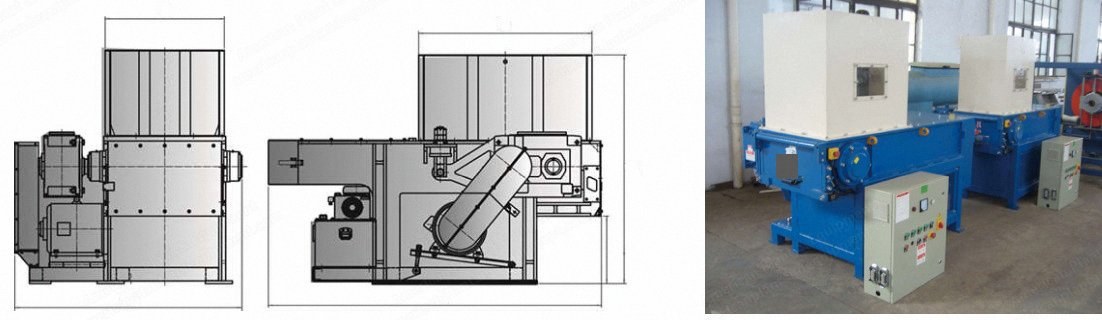

NovaStar, SG260, Single Shaft Shredder, 18.5kW to 30kW (New)

NovaStar, SG260, Single Shaft Shredder, 18.5kW to 30kW

Description

  1. Overview
    1. Single shaft shredder suitable for recycling a wide range of materials.
    2. Ideal machine for cold compacted block, hot melted block, paper, fiber, rubber, organic waste and a wide variety of materials.
    3. Proposal can be tailored to customer requirements such as input size, capacity and final output size.
  2. Specifications
    1. Model: APE-S260
    2. Dimension (L x W x H): 1780 x 1350 x 1754 mm
    3. Cutting chamber (C/D): 857 x 602 mm
    4. Height of discharge port: 546 mm
    5. Cylinder stroke: 500 mm
    6. Rotor diameter: φ224.7 mm
    7. Main shaft speed: 83 r/min
    8. Screen mesh: φ25 mm
    9. Rotor knives: 28 + 4 pcs
    10. Stator knives: 2 + 2 pcs
    11. Main motor power: 18.5 kW
    12. Hydraulic motor power: 2.2 kW
    13. Weight: 1400 kg
  3. Alternate models
    1. Model APE-S060: dimension 2455 x 1478 x 1700 mm, cutting chamber 1200 x 600 mm, discharge port height 500 mm, cylinder stroke 750 mm, rotor diameter φ300 mm, main shaft speed 83 r/min, screen mesh φ40 mm, rotor knives 30 + 4 pcs, stator knives 2 pcs, main motor power 22 kW, hydraulic motor power 2.2 kW, weight 1550 kg.
    2. Model APE-S080: dimension 2455 x 1678 x 1700 mm, cutting chamber 1200 x 800 mm, discharge port height 500 mm, cylinder stroke 750 mm, rotor diameter φ300 mm, main shaft speed 83 r/min, screen mesh φ40 mm, rotor knives 42 + 4 pcs, stator knives 2 pcs, main motor power 30 kW, hydraulic motor power 2.2 kW, weight 1950 kg.
