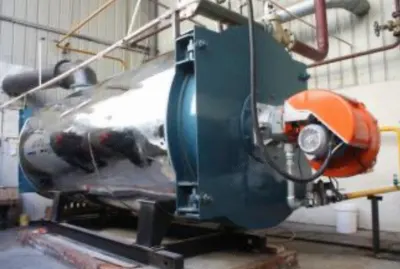

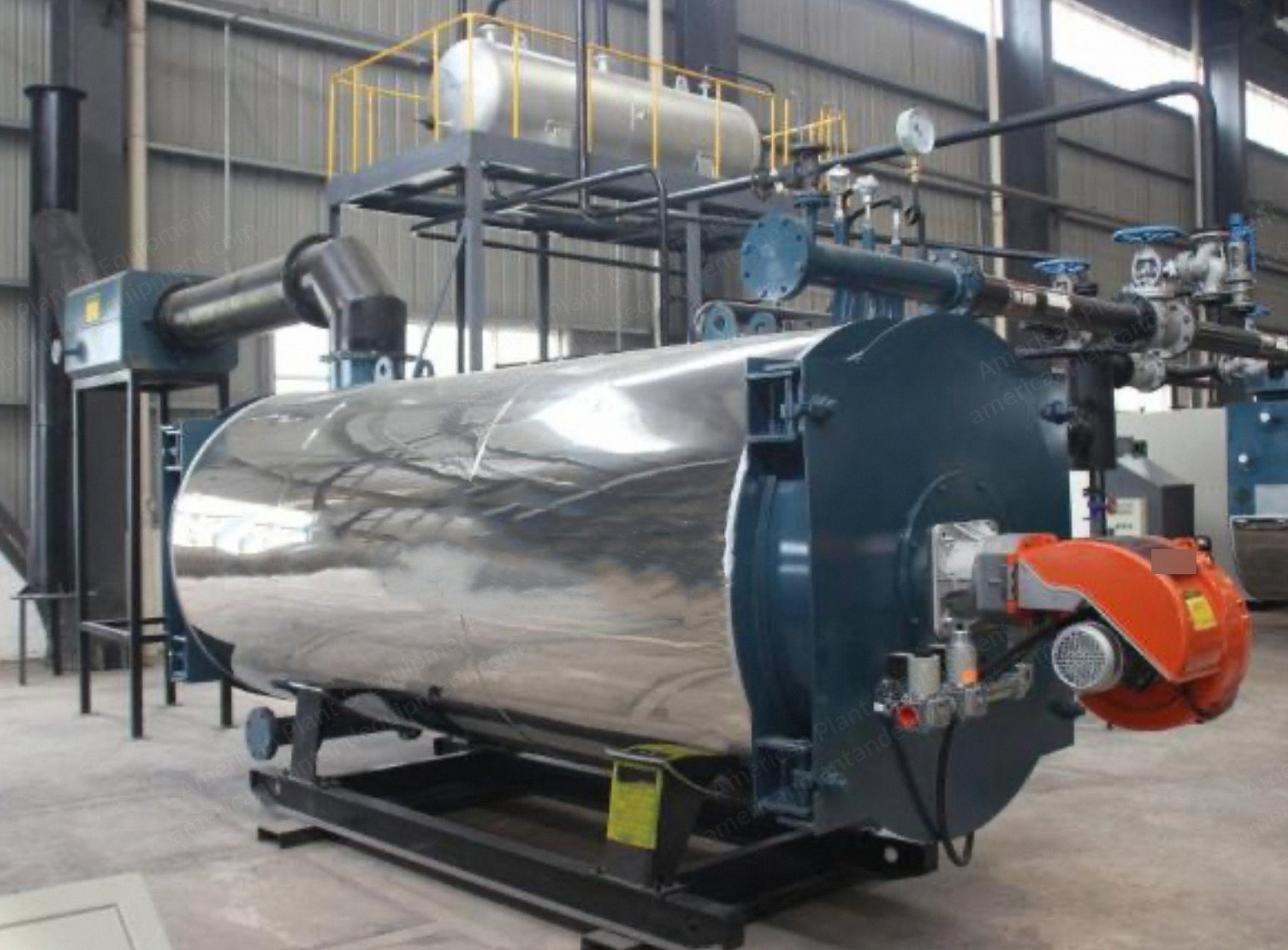

NovaStar, BT116, Gas Fired Thermal Oil, 2.4MW (2000000kcal), 0.8MPa (New)

NovaStar, BT116, Gas Fired Thermal Oil, 2.4MW (2000000kcal), 0.8MPa

Description

  1. Specifications
    1. Oil inlet temperature: 280°c
    2. Oil outlet temperature: 320°c
    3. Radiation heating surface: 20 m2
    4. Convection heating surface: 115 m3
    5. Fuel consumption: 241 nm3/h (gas)
    6. Power: 3/480 v/60 hz
    7. Capacity: 2.4MW (2000000kcal)
    8. Weight: 14000.0
  2. Dimensions And Weight
    1. Main part dimensions (l x w x h): 5040 x 2360 x 3155 mm
    2. Main part weight: 14 t
