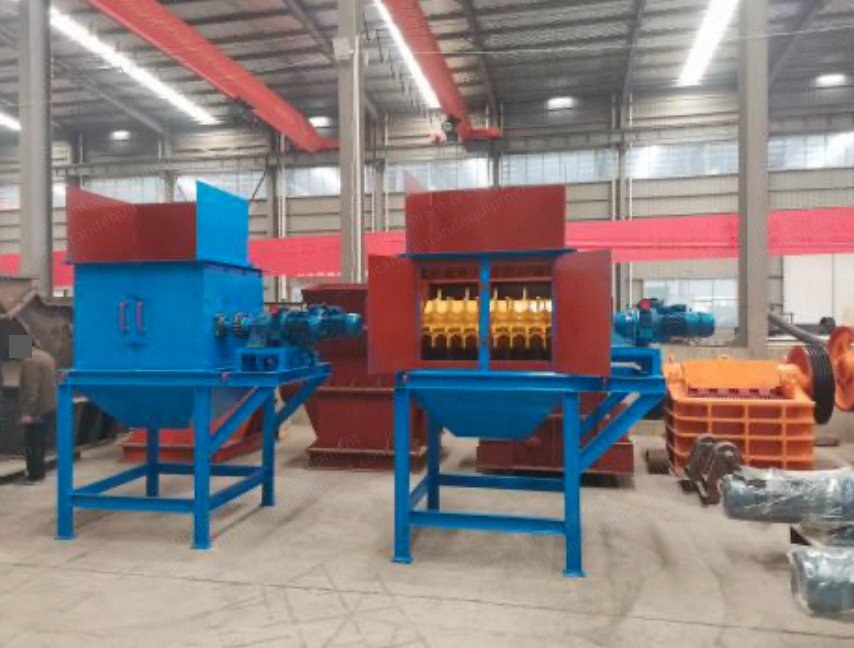

NovaStar, SG271, Feeding Port 600x1200mm, Capacity 100 TPD, Main Shaft Motor 5.5kW (New)

Description

Overview
1. Model: APE-12
2. Feeding port size: 600 x 1200 mm
3. Capacity: 100 tpd
Specifications
1. Main shaft motor: 4 to 5.5 kW, cvt incorporated for reducer
2. Auxiliary shaft motor: 4 to 2.2 kW, cvt incorporated for reducer
3. Dimension: 2400 x 1200 x 2400 mm
4. Chamber: Q235, thickness 8 mm
5. Rack: Q235, #100 u-steel

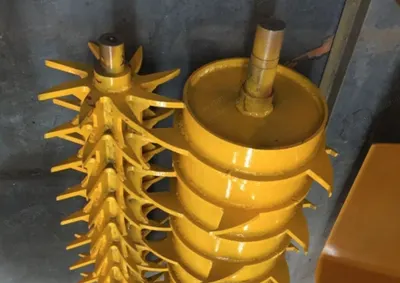

6. Main blade: Ø600, thickness 16 mm, quantity 10 pcs, steel hardening and tempering
7. Auxiliary blade: Ø400, thickness 16 mm, steel hardening and tempering

Auxiliary Blade	Ø400, thickness 16mm, steel hardening and tempering
Capacity	100 TPD
Chamber Material	Q235, thickness 8mm
Feeding Port Size	600x1200mm
Main Blade	Ø600, thickness 16mm, 10 pcs, steel hardening and tempering
Rack Material	Q235, #100 U-steel

Motor power	4-2.2 kW
