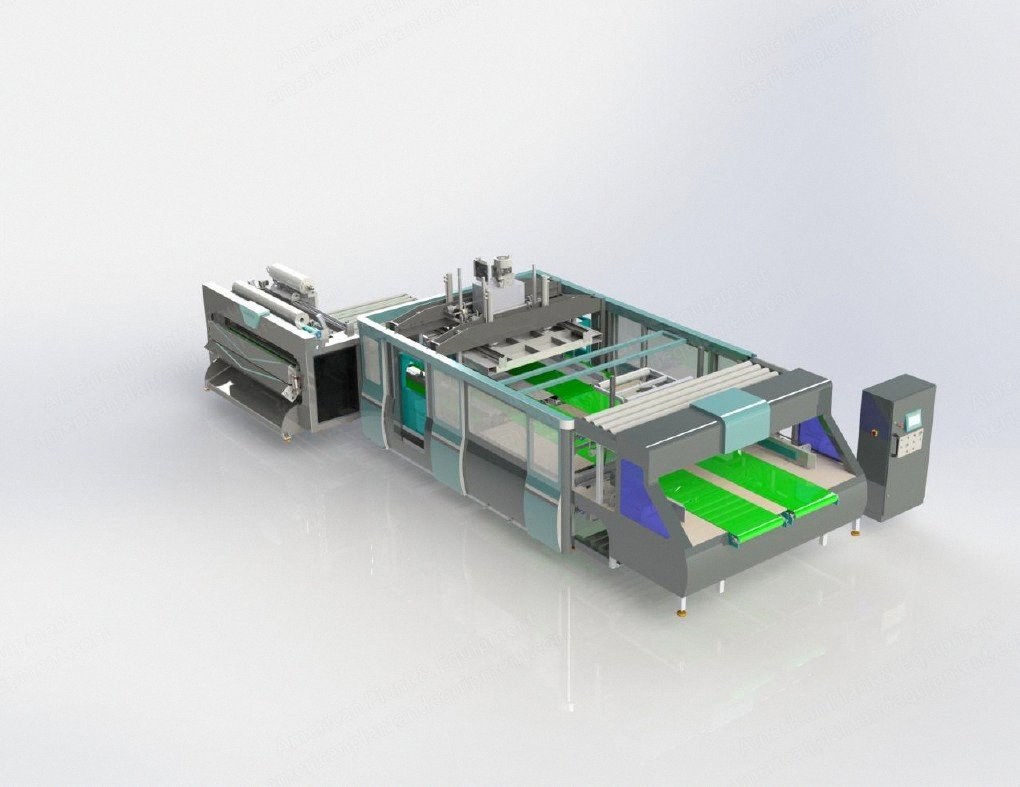

ABX 55000, 3-Station Mattress Packing Machine, 2000x2100mm Max Size, 50 Ton Compressing Load, 30 kW (New)

ABX 55000, 3-Station Mattress Packing Machine, 2000x2100mm Max Size, 50 Ton Compressing Load, 30 kW

Description

  1. Overview
    1. Machine for packing mattresses, toppers, bed bases, box springs, and headboards
    2. Three options controlled by a PLC screen: standard packing, vacuum and compress, roll packing
    3. Water cooling: yes
    4. Automatic mattress sizing system: yes
    5. Pneumatic compressing on mattress: yes
    6. Automatic mattress height sizer: yes
    7. Fixable diameter: yes, 240 to 430 mm
  2. Technical Specifications
    1. Max. mattress size: 2000 x 2100 mm
    2. Min. mattress size: 700 x 1800 mm
    3. Max. mattress height: 450 mm
    4. Min. mattress height: 50 mm
    5. Thickness of the nylon: 50 to 150 microns
    6. Compressing load: max 50 ton
    7. Compressing capacity: 2 pcs per 1 min
    8. Roll-pack capacity: 40 second per 1 rollpack
    9. Packing capacity: 3 pcs per 1.5 min
    10. Power requirement: 30 kW
    11. Voltage type: 480 VAC (III+N+TT)
    12. Compressed air: 6 to 8 bar
  3. Dimensions and Shipping
    1. Dimensions L x W x H: 11500 x 4600 x 2850 mm
    2. Shipping: 1 x 40 HC and 1 x 20 DC
