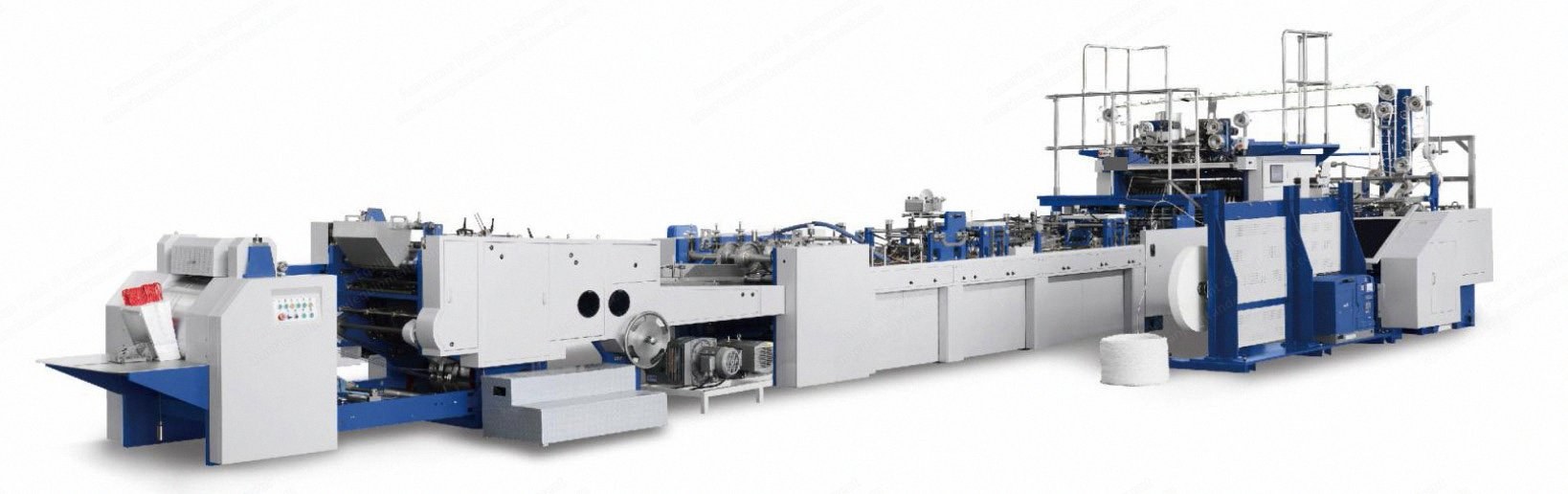

NovaStar, BS136, Fully Automatic Sheet Feeding Paper Bag Making Machine, Max Sheet 1260x600mm, 120-190 GSM (New)

NovaStar, BS136, Fully Automatic Sheet Feeding Paper Bag Making Machine, Max Sheet 1260x600mm, 120-190 GSM

Description

  1. Overview
    1. Fully automatic sheet feeding paper bag making machine with independent innovation.
    2. Incorporates international advanced production process and management system.
    3. Humanized intelligence operation interface combines with PLC and servo control system.
    4. Technology, performance and production efficiency achieve the leading level in the world.
    5. Can in-line produce twisted rope handle.
    6. Equips advanced compact servo handle cut-off system to replace traditional complex mechanical structure, reducing setup time and supplying a comfortable operation space.
    7. Bag making machine and handle making unit have separate servo control systems to avoid handle waste.
    8. Brand new servo reinforced card cutting system.
    9. Suitable paper: kraft paper, art paper (including film laminated paper).
  2. Bag Types And Crafts
    1. Type 1: Paper handle making, handle pasting, top folding, tube forming, gusset forming, square bottom open, bottom gluing, bottom pasting, compaction output.
    2. Type 2: Paper handle making, handle pasting (without top folding), tube forming, gusset forming, square bottom open, bottom gluing, bottom pasting, compaction output.
    3. Type 3: Reinforce card making, reinforce card pasting, top folding, tube forming, gusset forming, hole punching, square bottom open, bottom gluing, bottom pasting, compaction output.
  3. Specifications
    1. Max sheet (L x W): 1260 x 600 mm
    2. Min sheet (L x W): 620 x 320 mm
    3. Sheet weight: 120 to 190 gsm
    4. Bag width: 220 to 450 mm
    5. Bottom width: 70 to 180 mm
    6. Bag tube length: 280 to 560 mm
    7. Top folding width: 40 to 60 mm
    8. Handle patch length: 190 mm
    9. Handle patch width: 30 to 50 mm
    10. Handle patch weight: 140 gsm to 200 gsm
    11. Handle patch roll diameter: 1000 mm
    12. Handle patch roll width: 60 to 100 mm
    13. Paper rope diameter: 4 to 6 mm
    14. Handle rope height: 170 to 190 mm
    15. Speed: 40 to 70 pieces per minute
    16. Total/production power: 46.5/20 kW
    17. Total weight: 23.5 tons
    18. Glue type: water base glue/hot melt glue
    19. Machine size (L x W x H): 18400 x 5600 x 2950 mm
