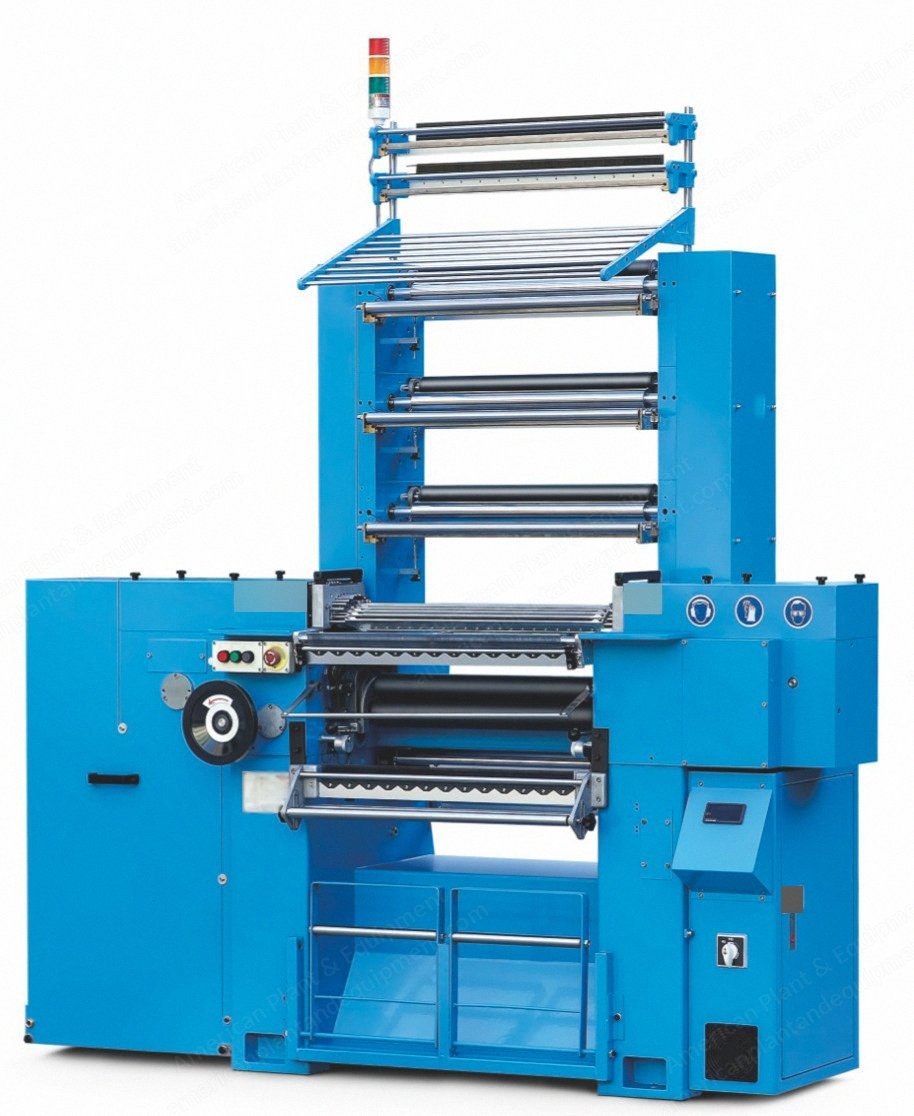

NovaStar, NF182, Working Width 600mm, 11 Bars, Gauge 15/20/24 (New)

NovaStar, NF182, Working Width 600mm, 11 Bars, Gauge 15/20/24

Description

  1. Overview
    1. Acceptable for the production of a variety of elastic and non-elastic belts, bra lace belts, medical bandages, clothing belts, zipper belts, sports belt buckles, and so on.
    2. Can produce a variety of special webbing at high speed, such as ribbons, shoelaces, stitched, elastic, and inelastic ones.
    3. Using composite knitting, it can be applied to webbing products of various materials.
    4. Can be equipped with double warp conveying, allowing to difference the tension between the warp, forming edges (without velcro effect) and those in the central part of the ribbon (with velcro effect), especially suitable for producing female velcro parts.
  2. Mechanical Details
    1. The worm gear box connected with the main shaft drives the hub and flower chain to control the smooth movement of the 11 weft bars and weave various webbing.
    2. According to production needs, the two weft bars can be driven by the rocker of the left auxiliary box.
    3. The two weft bars driven by the rocker of the widening device have a larger swing (up to 50 mm) and can be used as a special webbing.
    4. The flower chain group is composed of various flower chain pieces with involute contours, up to 96 pieces.
  3. Technical Specifications
    1. Working width: 600 mm
    2. Gauge: 15/20/24
    3. Bars: 11
    4. Inverter: 1
    5. Operating motor: 1.5 kW
    6. Two layers weft transmitter group: 1
    7. Output device: 1
    8. Front beam holder (without beams): 1
    9. Heavy roller group: 1
    10. Three-color indicator light: 1
    11. Broken yarn self-stop device: 1
  4. Standard Accessories
    1. Warp stop needle: 500
    2. Flower chain piece (optional model): 198
    3. Flower chain pillar + circlip: 200
    4. Knitting needle: 500
    5. Sprocket: 1
    6. Trimming needle (straight, curved): 1
    7. Special wrench: 1
    8. Tools: 1
  5. Optional Devices
    1. Warp transmitter group: 1
    2. Third layer weft transmitter group: 1
    3. Creel (308 bobbins, 25 cm): 1
    4. Knitting machine non-divergence device: 1
    5. Widening device: 1
  6. Dimensions and Weights
    1. Net weight of machine: 615 kg
    2. Drop frame net weight: 50 kg
    3. Creel net weight (308 digits): 220 kg
