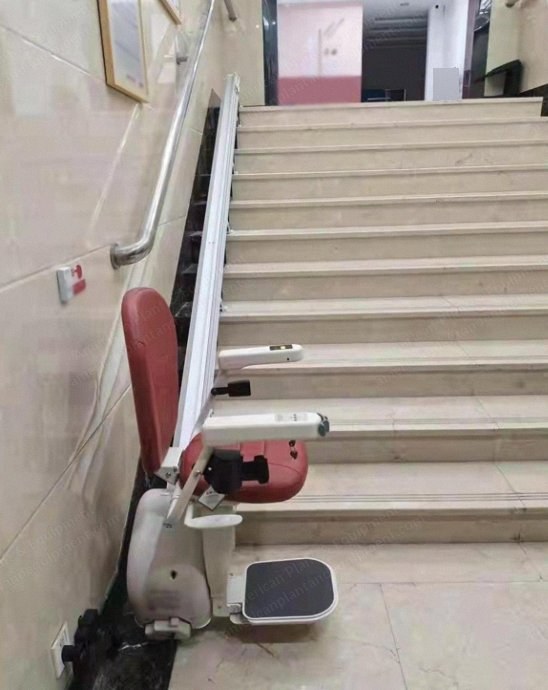

NovaStar, FK130, Safety Load 120kg, 350W Motor, 24V DC Battery (New)

NovaStar, FK130, Safety Load 120kg, 350W Motor, 24V DC Battery

Description

  1. Overview
    1. Safety load: 120 kg
    2. Rail maximum rising angle: 52°
    3. Speed: 0.12 m/s
    4. Rail tube diameter: 45 mm
    5. Distance between wall and rail: 130 mm
    6. Distance between stair surface and rail: 80 mm
    7. Drive motor power: 350 W
    8. Power: 2 x 12 V-7 Ah DC battery
    9. Remote control: 2 pcs with AAA battery
    10. Emergency operation handle: recharger 1 pc
    11. Power input: AC 100-240 V, 50 to 60 Hz
    12. Power output: DC 24 V, 1 A
  2. Performance
    1. The lift is driven by gear/rack low-pressure turbine gear motor, stable and safe. It is equipped with anti-slipping, anti-falling down and safety lock devices. When the lift gear is subject to wear out and falling down, the locking system will activate automatically and park the lift safely on the rail, ensuring the passenger’s safety.
    2. The chair arm rest can fold up. When folding the armrest, seat and foot pedal will fold up at the same time ensuring to reverse enough space for people to pass by when the lift is not in use.
    3. Both sides of the main engine, the main shaft, and the pedal of the stair lift are designed with crash-proof and touch-proof safety switches. In case of encounters obstacles, the switches will cut off the power immediately, which can effectively prevent the risk of encountering obstacles when operation.
    4. The seat of stair lift can be turned 90° left or right, easy for passengers to go up and down.
    5. The right side of the armrest is set up with the auto-shrink seat belt device, which can efficiently prevent the older people from the risk of falling down when taking the seat.
    6. The driven switch can be installed on the right armrest or left armrest according to users’ requirement.
    7. The main power switch is under the seat.
    8. The power of the stair lift is 24 V rechargeable battery, the top end or the bottom end of the guide rail has auto charge position, in necessity, middle position of the floor can also set up auto charge position.
    9. The guide rails are made after the on-site mapping of the user’s actual floors.
