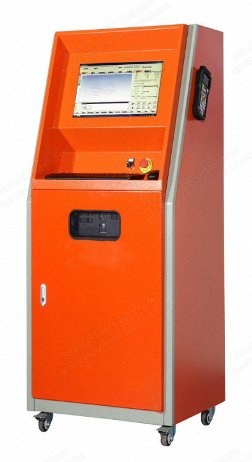

NovaStar, CU110, Cutting Machine, 2000x1000mm, 37kW, 550 Bar (New)

NovaStar, CU110, Cutting Machine, 2000x1000mm, 37kW, 550 Bar

Description

  1. Overview
    1. Hydraulic system: Rexroth
    2. Main motor: Siemens
    3. Accumulator: 1.5 L
    4. Power supply: 220V or 380V 50Hz
    5. Water supply: ≥15.1 L/min
  2. Specifications
    1. Dimension (L x W x H): 2000 x 1000 x 1400mm
    2. Weight: 1200kg
    3. Power rate: 37kW/50HP
    4. Maximum pressure: 550MPa/5500bar
    5. Working pressure: 400 to 450MPa
    6. Maximum oil discharge: 104 L/min
    7. Maximum flow rate: 3.7 L/min
    8. Φ of orifice: 0.33mm
  3. Working Table
    1. Dimension (mm): 2900 x 2200mm
    2. Maximum cutting range: 2000 x 1500mm
    3. Travel of Z axis: 200mm
    4. Servo system: Weihong
    5. Ball-screw linear-rail: ABBA/TBI, Taiwan brand
    6. Re-positioning accuracy: ±0.025mm/M
    7. Cutting accuracy: ±0.1mm
    8. Maximum running speed: 15m/min
    9. Lubrication: Oil immersion
    10. Material: 203 stainless steel material tank, cast steel beam, rubber and stainless steel cover
  4. Cnc Controller
    1. Power supply: AC220V 50/60Hz
    2. Drawing system: Auto-CAD
    3. Computer system: Windows 7
    4. Function: Remote controller
    5. Screen: 19 inch LCD
    6. Water jet software NC-Studio: Supports DXF file and NC code
  5. Dti Diamond 3Axis Cutting Head
    1. Re-positioning accuracy: ±0.02/1000mm
    2. Cutting accuracy: ±0.15/1000mm
    3. Maximum pressure: 420MPa
    4. Orifice type: Parse 3
    5. Nozzle type: 7.14 x 1.02 x 76mm
    6. Application: 1/2 head cutting
    7. Possible to have 2 heads working at the same time
    8. Integral diamond eductor integrated cutting head working life 1000 hours each
    9. The working height of Z-axis will be 150mm
  6. Abrasive Feeding System
    1. Dimension (L x W x H): 700 x 700 x 1350mm
    2. Weight: 80kg
    3. Maximum capacity: 200kg
    4. Maximum air pressure supply: 2bar
    5. Software controlling motor adjusting regulator
    6. Eliminates abrasive waste
    7. Fine-tune the abrasive delivery
    8. 30 precision setting
    9. Over delivery of the abrasive is controlled
  7. Cooling Chiller
    1. The return water temperature of the chiller should not be higher than 40 degrees
    2. The operation of water chiller system is through refrigeration
    3. Agent circulation system, water circulation system and electrical automatic control system are three interconnected systems
    4. Chillers are divided into low-temperature chillers and normal-temperature chillers for temperature control
    5. The normal temperature is generally controlled within the range of 0-35°C
  8. Hydraulic Loading System
    1. Automatic material loading system for loading and unloading heavy materials and big work pieces
    2. Tilting table from ground to table for easy loading of materials
    3. Maximum load capacity: 2000kg
  9. Water Treatment System
    1. Purifies and softens the water
    2. Necessary device to precisely filter and soften the water

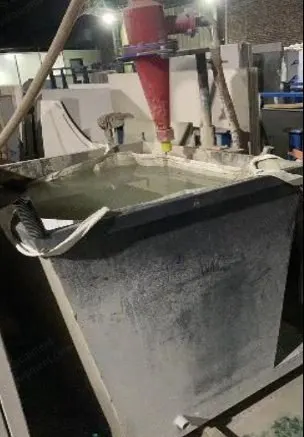

  10. Abrasive Removal System
    1. Without electricity (only compressed air)
    2. Including 3 filter fabric bags (1t each)
    3. Full control through user-friendly, manual control
  11. Software Capabilities
    1. Control toolpaths from information in STEP or IGES files
    2. Automatic speed ramping depending on geometry
    3. Part rotation to align the part correctly to the machine
    4. CAD commands to add help geometry in 3D, such as lines, arcs and circles
    5. CAD commands to extend and project 3D objects
    6. Automatic speed calculation depending on thickness and cutting parameters
    7. Automatic piercing time calculation depending on thickness and cutting parameters
    8. 5 axis cutting tool kerf calculation that can be visualised directly during the toolpath generation
    9. Control bridges and tabs to fix the part in the material
    10. Nest 3D-5X parts
    11. Full simulation of 3D-5X cutting
    12. Taper control on portions of the part with straight cut
    13. Cutting vectors (tilt directions) can be adjusted manually to avoid collision between cutting head and work piece
    14. Export 3D geometry to 2D or import 2D geometry to 3D
    15. Set zero point to any point on the model
    16. Lead in/out and piercings can be placed in any directions and planes
    17. STEP/IGES files will be embedded in the standard IGEMS DIG file
  12. Main Parts Brand List
    1. Servo driver and motor for XYZAC axis: Weihong brand OEM by Panasonic
    2. Ball screw and linear guide for XYZABC axis: TBI TBIMOTION, Taiwan
    3. Main motor: Siemens, Germany
    4. Intensifier and accumulator part: Accustream, USA
    5. Abrasive delivery system: Allfi, Switzerland
    6. Hydraulic pump and valves: Rexroth, Germany
    7. PLC: Siemens, Germany
    8. Cast steel beam
    9. Pump and controller structure
    10. Electronic parts
    11. Water tank
    12. Table structure
  13. Included Accessories
    1. Monkey wrench: 1
    2. Double end wrench: 1
    3. Inner hexagon wrench: 1
    4. Screwdriver: 5
    5. Pliers: 1
    6. Rubber hammer: 1
    7. Electric tape: 1
    8. Wire connector: 3
    9. USB: 1
