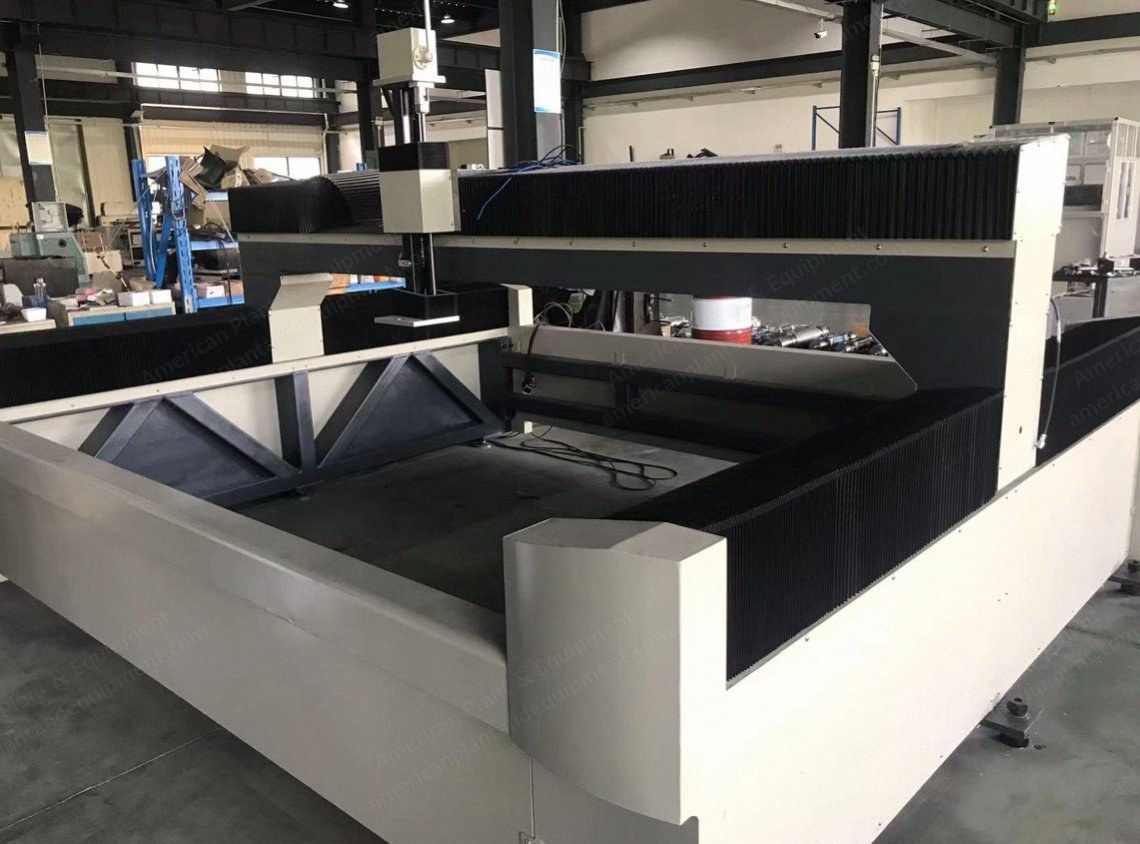

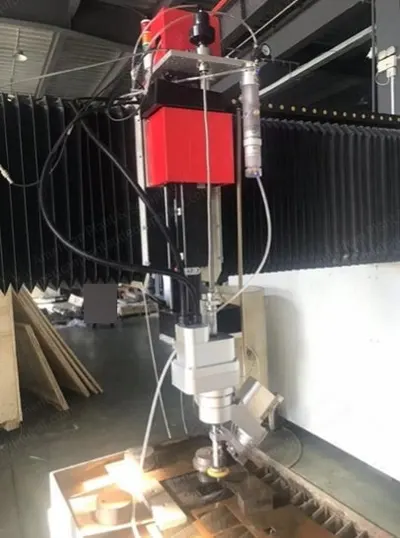

Description Overview Machine type: Cantilever type Cutting table Independent research and development of CNC controller Specifications Processing dimension: 2000mm x 1500mm Repeat positioning accuracy: +/-0.076mm Positioning accuracy: +/-0.127mm Move speed (X axis and Y axis): The highest 7.6 mpm Z axis: The highest 1 mpm Z axis adjustment: 500mm AC servo digit driving system: Fujifilm (Japan) or Yaskawa (Japan) High-precision ball screw, linear rolling guide (Taiwan ABBA) Yh-H20 High Pressure Pump Rated power: 50hp (37kW) Maximum pressure: 60000psi (4137bar) Maximum single orifice diameter: 0.36mm Control voltage and current: 24DC, 10amps Ambient temperature: 5-40C Attenuation: 1 L Fuel tank capacity: 114 L Cooling flow: 11.4 L/min Size: 1473 x 1205 x 1056mm Weight: 1025 kg Cutting Head 5 axis Movement: Linear motion, rotary motion Small five axis (pure water cutting head) Rotary axis travel: 0-10 Maximum recommended rapid traverse speed: 180/sec Maximum control speed: 180/sec Adequate to liner speed at tool tip: 28.915 m/mm Cnc Controller CNC system: Weihong system 19 inch LCD monitor Support DXF and NC code file Software: Windows XP Resistance of the shock and electro-magnetic The key function Forward and backward processing function Even pace control function Small arcs speed auto processing function Circle processing function Partial and smooth processing modes
