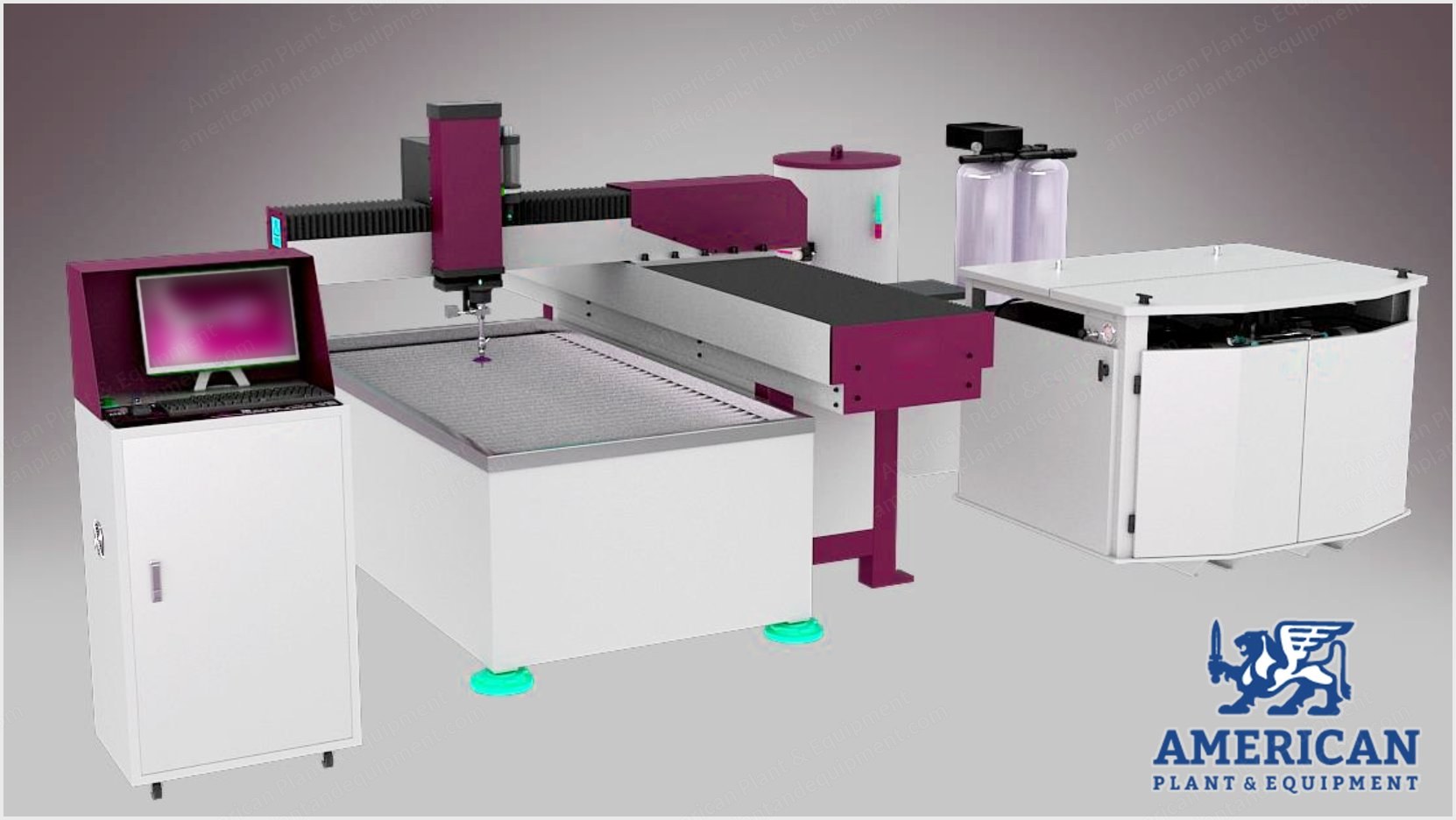

NovaStar, GDMF 20-10, 3-Axis, 2000x1000mm Processing Area, 400MPa Max Pressure, 37kW

Overview

1. Professional 3 axis waterjet specially designed for pre-formed cutting.

2. For increased performance, the unit can be added with abrasive micro bead media cutting.

3. It can take two stacks of sheets in one go.

4. Five sheets on each other. Ten sheets can be loaded simultaneously.

Specifications

1. 3 axis jet cutting head with servo drive and auto positioning.

2. Processing area L x W: 2000 x 1000 mm.

3. Cutting accuracy 0.15 mm with servo drive motors.

4. Hydraulic pressure 20 MPa.

5. Double filtering system of 10-micron meter each.

6. Removal system for abrasive media during operation.

7. Acutrim USA. 37 kW 380 V/50 Hz or 480 V/60 Hz pump type with integrated heat exchanger.

8. Electrohydraulic driven high-pressure pump, with max pressure 400 MPa and continuous operation pressure 300 MPa. 3.7 L/min.

9. Deionization system removing micro like magnesium ion etc. particles for extensive pump durability. The unit can support two machines.

Packing Dimensions

1. 1 PL tray and cross bar: L x B x H 2800 x 1350 x 1950 mm, weight 950 kg.

2. 1 PL console: L x B x H 2900 x 950 x 1250 mm, weight 1200 kg.

3. 1 PL pump: L x B x H 1600 x 1400 x 1300 mm, weight 1400 kg.

4. 1 PL silo and electric console: L x B x H 1400 x 900 x 300 mm, weight 400 kg.

5. Total weight: 3950 kg.
