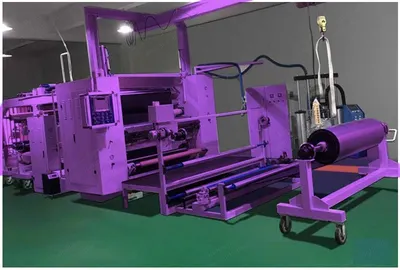

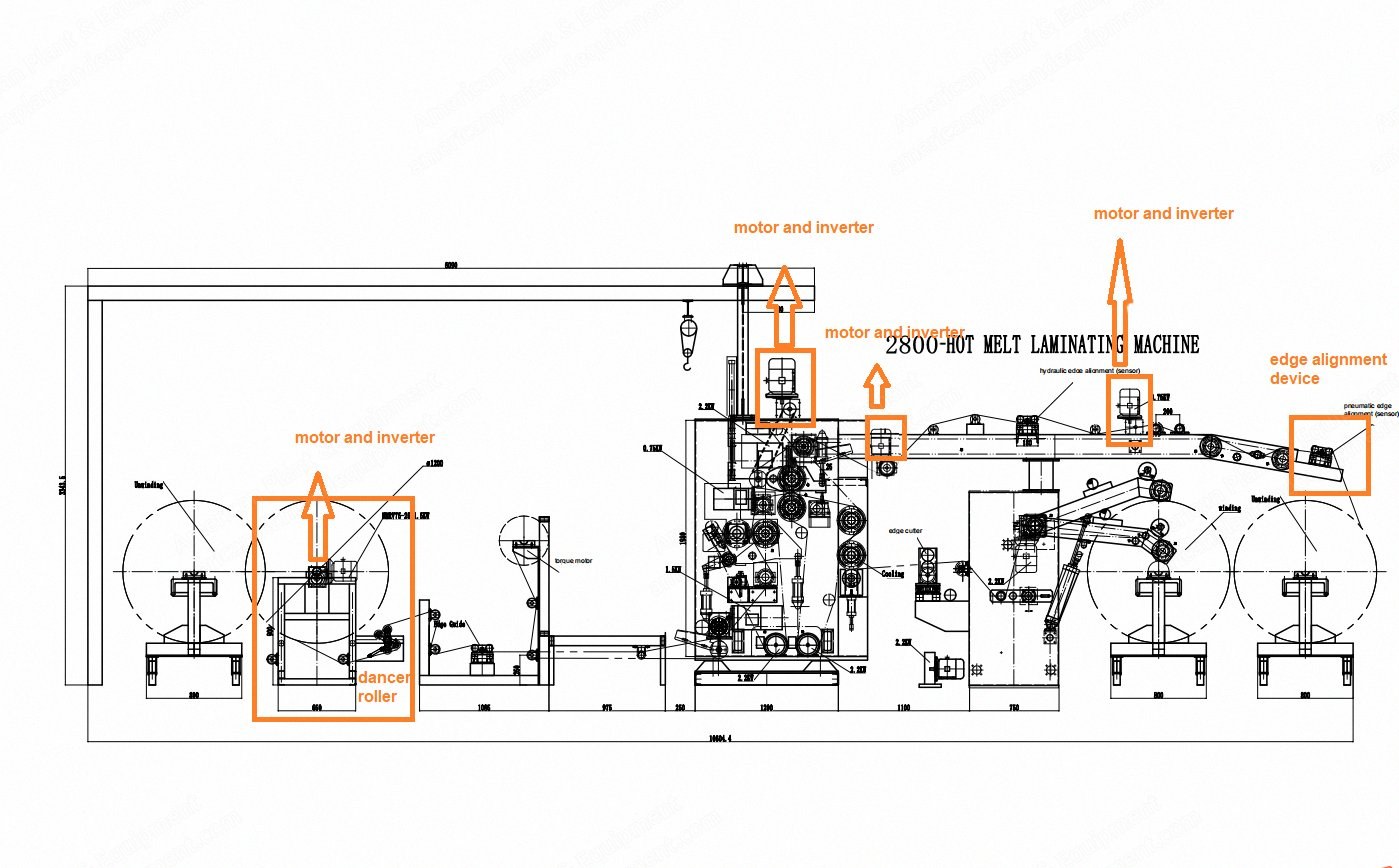

NovaStar, LC167, Hot Melt PUR Lamination Machine, Roller Width 2800mm, 40 m/min (New)

NovaStar, LC167, Hot Melt PUR Lamination Machine, Roller Width 2800mm, 40 m/min

Description

  1. Overview
    1. Machine is designed to laminate knit ticking fabric to knit fire retardant fabric
    2. Maximum material width: 2600 mm
    3. Machine roller width: 2800 mm
    4. Type of glue: hot melt PUR glue
    5. Working speed: 0 to 40 meters/minute
    6. Heating system: electricity, thermal oil
    7. Installed capacity: about 80 kVA
    8. Compressed air: 4 to 8 bar
    9. Heated pipe length (heating pipe of the glue melting machine): 5 meters
  2. Part One: Base Fabric Unwinding Device
    1. Unwinding rack: 4 sets
    2. Φ74 pneumatic shaft: 4 pieces
    3. Damping device: 4 sets
    4. Unwinding unit: 4 each
    5. EPC position adjust device: 1 set
    6. Φ75 aluminum alloy roller: 5 pieces
    7. Machine rack: 1 set
    8. Footboard: 1 each
  3. Part Two: Film Unwinding Device
    1. Φ74 pneumatic shaft: 2 pieces
    2. Φ180 rubber roller: 1 piece
    3. Film opener: 1 each
    4. (Aluminum) gear motor: 1 each (Siemens)
    5. Inverter: 1 each (Yaskawa)
    6. Machine rack: 1 set
  4. Part Three: Film Carrier Reclaimer
    1. Φ74 pneumatic shaft: 1 piece
    2. Safety stirrup: 1 set
    3. Torque motor: 1 each (Siemens)
    4. Inverter: 1 each (Yaskawa)
    5. Machine rack: 1 set
  5. Part Five: Hot Melt Glue System

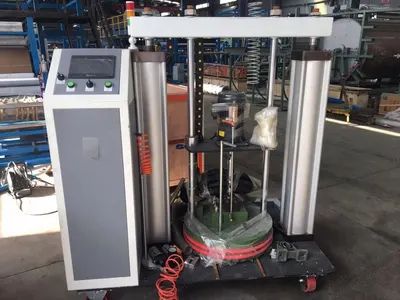

    1. Hot melt glue melter (Taiwan brand): 1 set
    2. Hot melt glue pump (Taiwan brand): 1 each
  6. Part Six: Cooling System
    1. Φ240 water cooling steel roller: 2 pieces
    2. Cooling system: 1 set (it can load 2 t circulating)
    3. Rotary joint: 2 each
    4. Metal hose: 4 pieces
  7. Part Seven: Rewinding Device
    1. Φ180 rewind silicone roller: 1 piece
    2. Φ100 rubber bending roller: 1 piece
    3. Φ75
