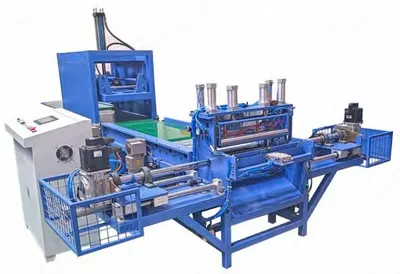

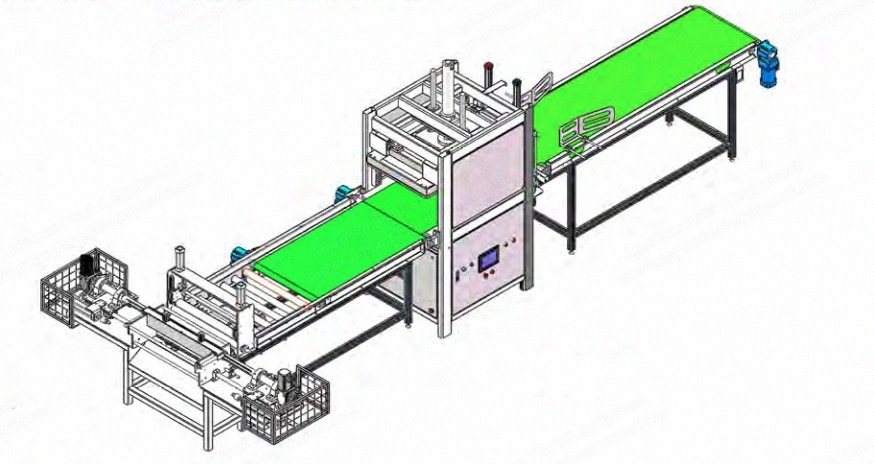

NovaStar, PQ171, Pillow Vacuum Compress and Roll Packing Machine, Capacity 4 to 6 pcs/min, Belt Width 600mm (New)

NovaStar, PQ171, Pillow Vacuum Compress and Roll Packing Machine, Capacity 4 to 6 pcs/min, Belt Width 600mm

Description

  1. Overview

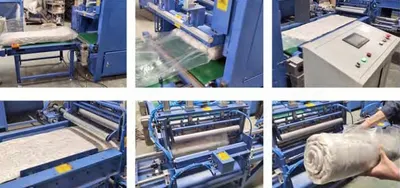

    1. For packing pillows, cushions and fluffy products into a plastic bag; the air is expelled automatically and the film is heat sealed, then roll packed.
    2. Reduces volume and shipping charges after being packed.
    3. Capacity: 4-6 pieces per minute.
    4. Pressure: 0.4-0.8 MPa.
    5. Total power: 11.8 kW.
    6. Floor space: 4900 mm long x 2500 mm wide x 1900 mm high.
    7. Air volume needed: 20 liters per minute.
    8. Air pressure: 0.5 to 0.8 MPa.
  2. Control System
    1. PLC control system with touch screen for easy parameter setting.
    2. PLC brand and model: Siemens S7-200 Smart.
    3. PLC ladder diagram comes in English.
    4. Machine comes with piece counter on the HMI display screen.
  3. Operation
    1. Automatic feeding, compressed heat sealing and rolling.
    2. With flexible compression stroke of 300 mm.
    3. Compression stroke: 300 mm (can be adjusted; custom stroke is available based on product height).
    4. Belt width: 600 mm.
    5. Maximum hydraulic pressure: 5/10 tons (optional, prices vary).
    6. 4 guide rails and 2 gears at each corner of compression plate.
    7. The heating time/temperature can be adjusted based on different plastic bags.
  4. Motor Power Breakdown
    1. Infeed conveyor: 0.3 kW.
    2. Hydraulic pump: 7.5 kW.
    3. Compression conveyor: 0.55 kW.
    4. Middle conveyor: 0.4 kW.
    5. Water cooling pump: 0.032 kW.
    6. Oil cooling pump: 0.075 kW.
    7. Rolling motor 1: 1.5 kW.
    8. Rolling motor 2: 1.5 kW.
  5. Cooling System
    1. Circulating water cooling design ensures every single sealing quality.
    2. Water circulation system: with water pump, 30 watts, about 40 liters per minute (see diagram).
    3. The key to continuous sealing is to maintain a constant sealing temperature; by circulating cooling water into the aluminum tube, the heat is taken away quickly so the temperature before each heating remains constant.
    4. It can also quickly cool and harden the sealing position of the tape and ensure the quality of the seal.
    5. When sealing, due to the bag fold problem, it is easy to cause air leakage; due to the water cooling system, we can use high heat to melt through the half-folded bag part and ensure that the bag will not be melted.
  6. Sealing and Peeling
    1. Since the bag will stick to the seal after heat sealing, the friction between the belt and the pillow is not enough to take the pillow away; the peeling plate can peel off the bag stuck to the seal, ensuring that the sealed pillow can be taken away in time every time.
    2. The heating wire will expand with heat and contract with cold during the process; when heated, the heating wire will elongate and the tension spring can tighten the heating wire at any time to keep it flat and ensure the sealing quality.
  7. Condition
    1. Used industrial machine in working condition.
  8. Included
    1. Machine as described with PLC, touch screen, water circulation system and piece counter.
    1. Available for inspection and pickup; exact location to be confirmed upon inquiry.
  10. Specifications
    1. Weight: 2020
