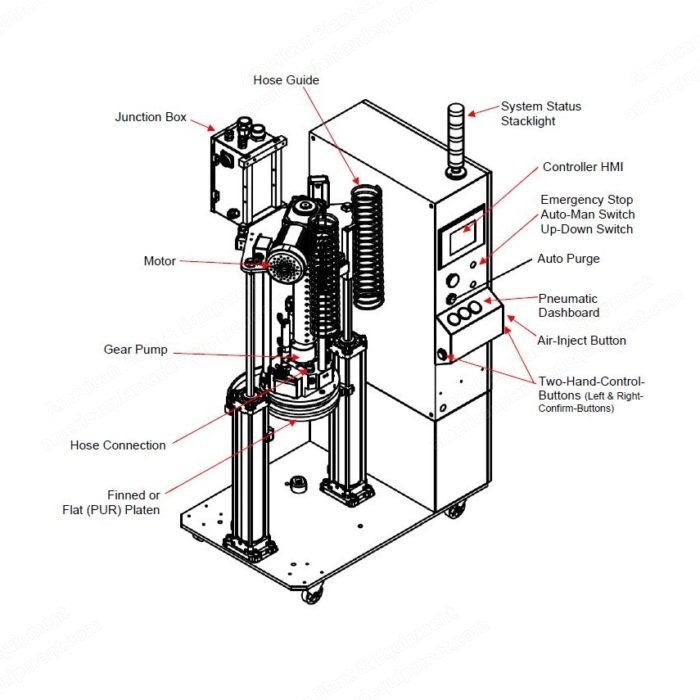

The dm5 is a stationary pail melter (unloader) that combines a heated platen, pump and all controls needed to melt and dispense hot melt adhesives, sealants, purs or coatings from a standard 5-gallon steel pail.

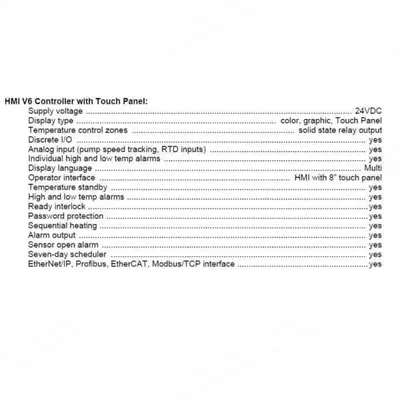

The controller provides accurate, proportionate temperature control for the platen, hoses and applicators.
A “standby” temperature may be programmed so that the temperature zones can be independently maintained at a lower temperature when the unit is not in active use, enabling rapid return to normal operation.
A variety of gear pumps are available.
The melter can be utilized as a bulk-transfer unit or as a stand-alone unit.
It can supply one or two hand-held applicators or other applicators.
Product Details
Special melt platen grid designs provide excellent melt rate into precision gear pump.
Small footprint provides ease of installation.
Removable platen face allowing for easy cleaning and replacement where necessary.

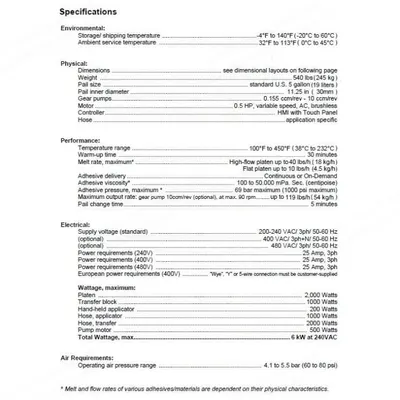

Specifications
System: dm5
Operating temperature range: 100°f to 450°f (40°c to 232°c)
Melt rate: up to 30 lbs/h (14 kg/h) *
Gear pump sizes: 0.55 ccm - 10 ccm
Pail size: 5 gallon (19 l) steel pail us standard
Pail inner diameter: 11.25 in (30 cm)
Hose/head output zones: 2/2
Aux output zones: 2
Supply voltage setup 1: 240 vac delta, 480 vac delta
Supply voltage setup 2: 380 vac wye volts
Total amp draw: 6.7 kw
Height: 64.9 in (165 cm)
Depth: 25.6 in (65 cm)
Width: 45.0 in (114.3 cm)
Condition
Melt rates vary with adhesive type.
Available Options
Digital pressure transducer kit.
Platen circulation.
Swirl kit, dual, 240 v.
Vent hood for pur adhesive applications.
Finned, high flow, standard air inject.
Smooth platen, standard air inject.
