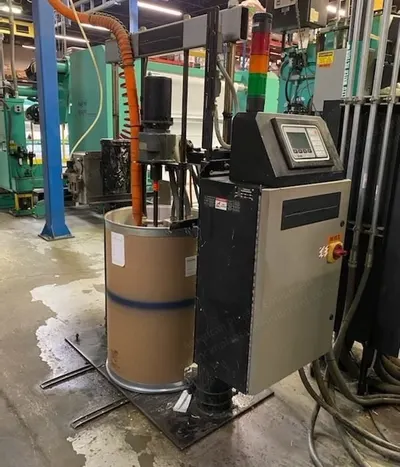

Glue Machinery, DM55, Hot Melt Drum Unloader, 55 Gallon, 250 kg/hr Melt Rate, 35kW Platen (New)

Glue Machinery, DM55, Hot Melt Drum Unloader, 55 Gallon, 250 kg/hr Melt Rate, 35kW Platen

Description

  1. Overview
    1. Dm55 hot melt drum unloader melts and pumps hot melt from 55 gallon drums with speed and accuracy.
    2. This is truly a “melt on demand” machine, melting only the hot melt that is needed for the application.

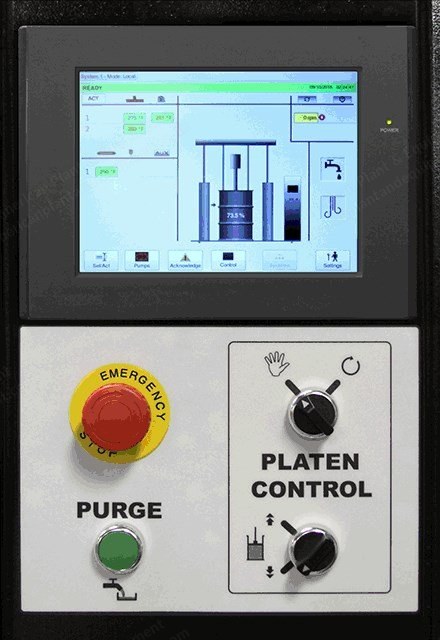

    3. It has precision temperature controls and variable speed gear pump or high output piston pump.
  2. Specifications
    1. Melt rate (non-reactive platen): up to 250 kg/hr (600 lbs/hr)*
    2. Piston pump compression ratio: 15:1 piston pump, pressure balanced
    3. Gear pump specifications: 8.5/30/45 cc/rev**
    4. Platen watts: 35 kw
    5. Hose output: 2.4 kw each (2 max)
    6. Head output: 2.4 kw each (2 max)
    7. Pump heater: 1.2 kw
    8. Auxiliary output: 2.4 kw each (2 max)
    9. Voltage: 240 vac 3ph + pe (delta), 480 vac (delta), 400 vac 3ph + n + pe (wye)
  3. Dimensions
    1. Height: 184 cm (72.4)
    2. Height platen extended: 286.2 cm (112.7)
    3. Depth: 91.6 cm (36)
    4. Width: 153.3 cm (60.4)
    5. Weight (empty): 771 kg (1,700 lbs)
  4. Optional Accessories
    1. Smooth finned platen for reactive adhesives
    2. Tandem capabilities
    3. Digital pressure transducer
    4. Continuous platen position sensor
