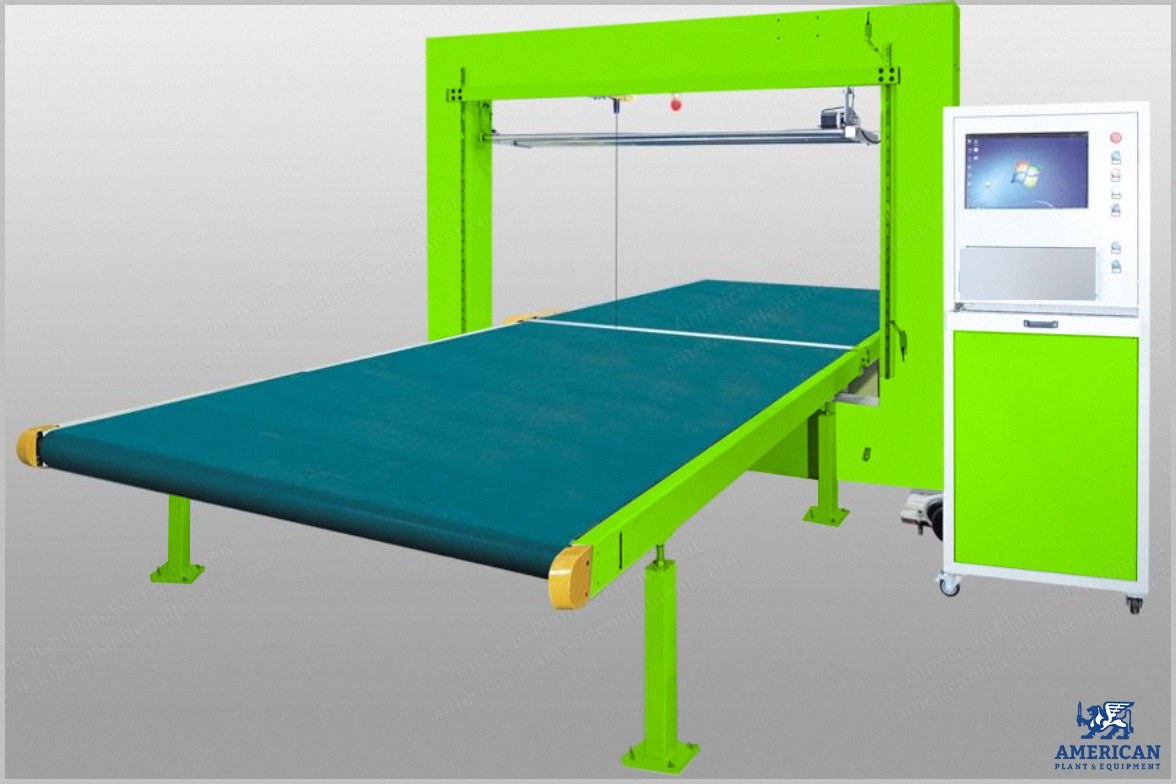

NovaStar, FN527, CNC Vertical Oscillating Blade Foam Cutting Machine, 3000x2200x1300mm Capacity, 9kW (New)

NovaStar, FN527, CNC Vertical Oscillating Blade Foam Cutting Machine, 3000x2200x1300mm Capacity, 9kW

Description

  1. Overview
    1. Maximum processing length: 3.000 mm
    2. Maximum processing width: 2.200 mm
    3. Maximum processing height: 1.300 mm
    4. Machine external size: L 6.200 x W 3.300 x H 2.400 mm
    5. Total weight: 2.200 kg
  2. Specifications
    1. Vibration blade speed: 0 to 10 m/min
    2. Cutting speed: 4 to 5 meters/min
    3. Processing precision: ±0.5 mm
    4. Blade size: L 1.600 x W 3 x T 0.6 mm
    5. Minimum cutting radius: 5 mm
    6. Operation system: IPC + Windows W7
    7. Compressed air: 6 bar
    8. Voltage: 220/380/415 V; 50/60 Hz; 3P
    9. Total power: 9 kW
    10. Capacity: 3000x2200x1300mm
    11. Weight: 2200
    12. Dimensions: 6200x3300x2400mm
    13. Blade size: 1600x3x0.6mm
  3. Condition And Features
    1. Blade break protect: installed
    2. Self-diagnosis system: installed
    3. Autocad drawing with nesting
    4. Warranty: 1 year
