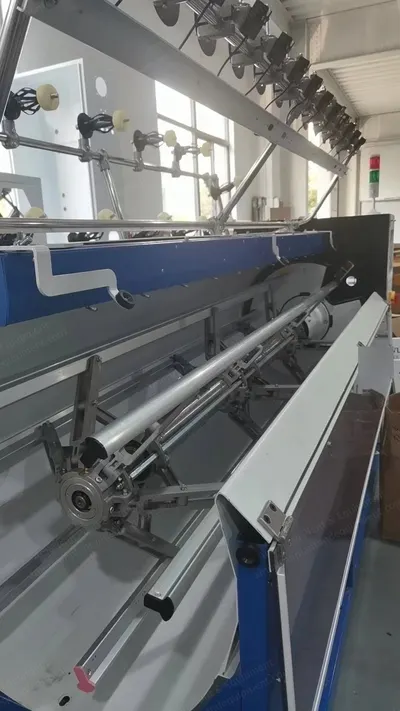

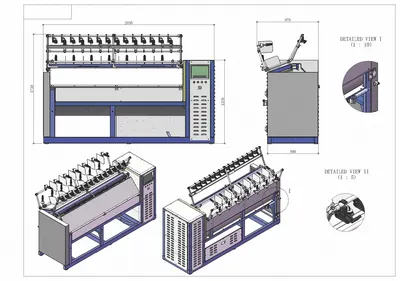

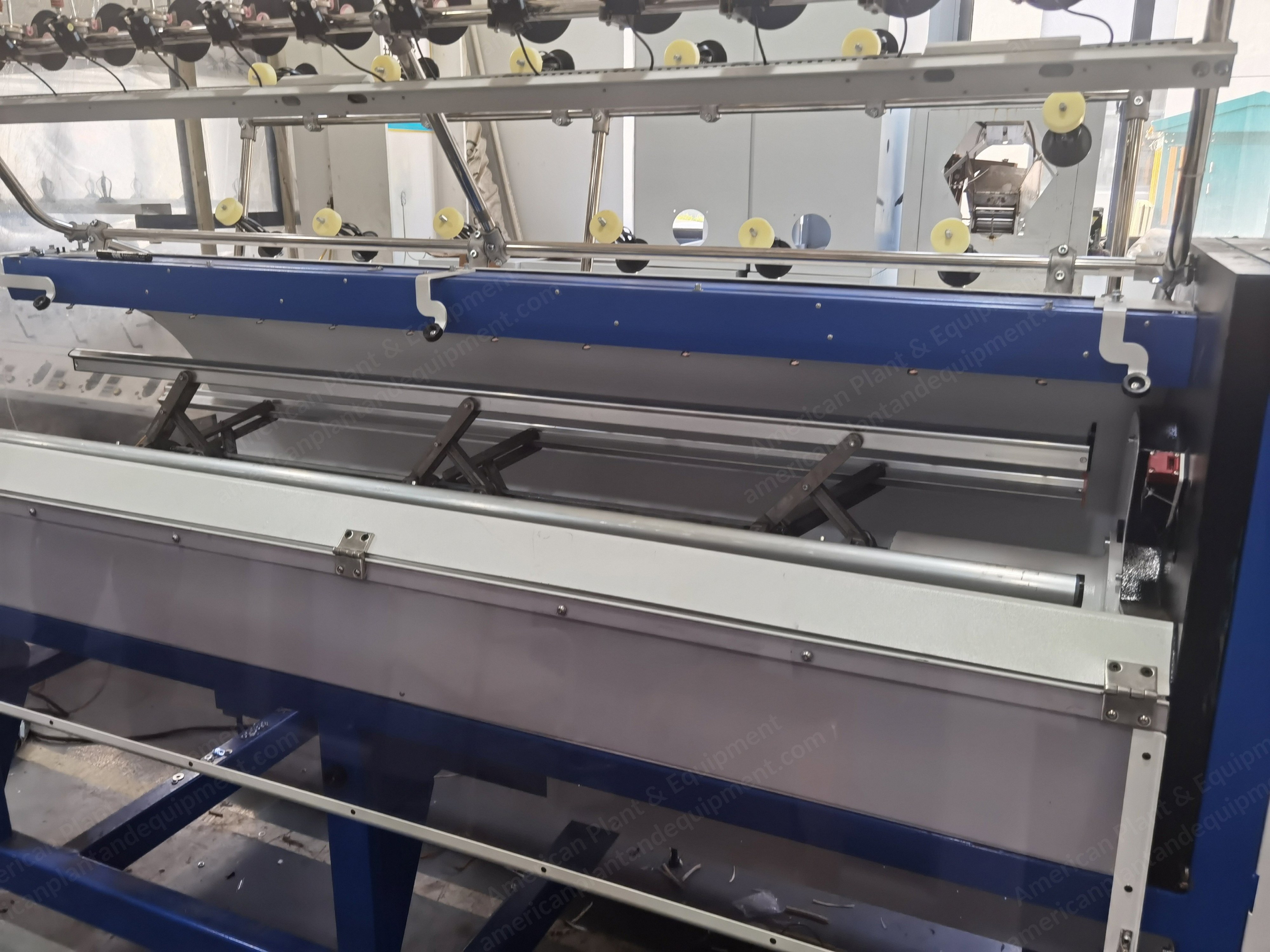

Description Overview 12 skeins (12 positions) single side machine 220 volt, single phase New machine Low in energy consumption Hank crossing angle can be adjusted Edge can be closed and not overlap, no fuzz when dyeing, allowing for dye penetration and easy unwinding When one side hangs yarns or tires ropes, the other side can still run independently Each hank yarn only needs to be tied once, which greatly improves production efficiency Specifications Types of winding: precision/digital winding Winding speed: up to 1200 m/min Spindle pitch: basic 165 mm, according to traverse Traverse length: 100 to 250 mm Hank reel length: 2326 mm Hank reel perimeter: 1200 to 1380 mm (47 to 54), 1350 to 1650 mm (53 to 65), 1600 to 2000 mm (63 to 79) Rated power: single-side machine 2.5 kW Installed power: 2.35 kW Usual running power: 1.2 kW Dimensions And Weight Floorspace dimensions (L x H x W): 5750 mm long x 1280 mm wide x 2075 mm high (108 in = 9 ft long x 51 in wide x 82 in high) Shipping dimensions: 2800 mm x 1300 mm x 2100 mm Shipping weight: 1000 kg Yarns Spun yarn, mercerized cotton, fancy yarn, chenille yarn, textured silk, pure silk, 100% wool Available Circumferences 1200 to 1380 mm (47 to 54) 1350 to 1650 mm (53 to 65) 1600 to 2000 mm (63 to 79)
