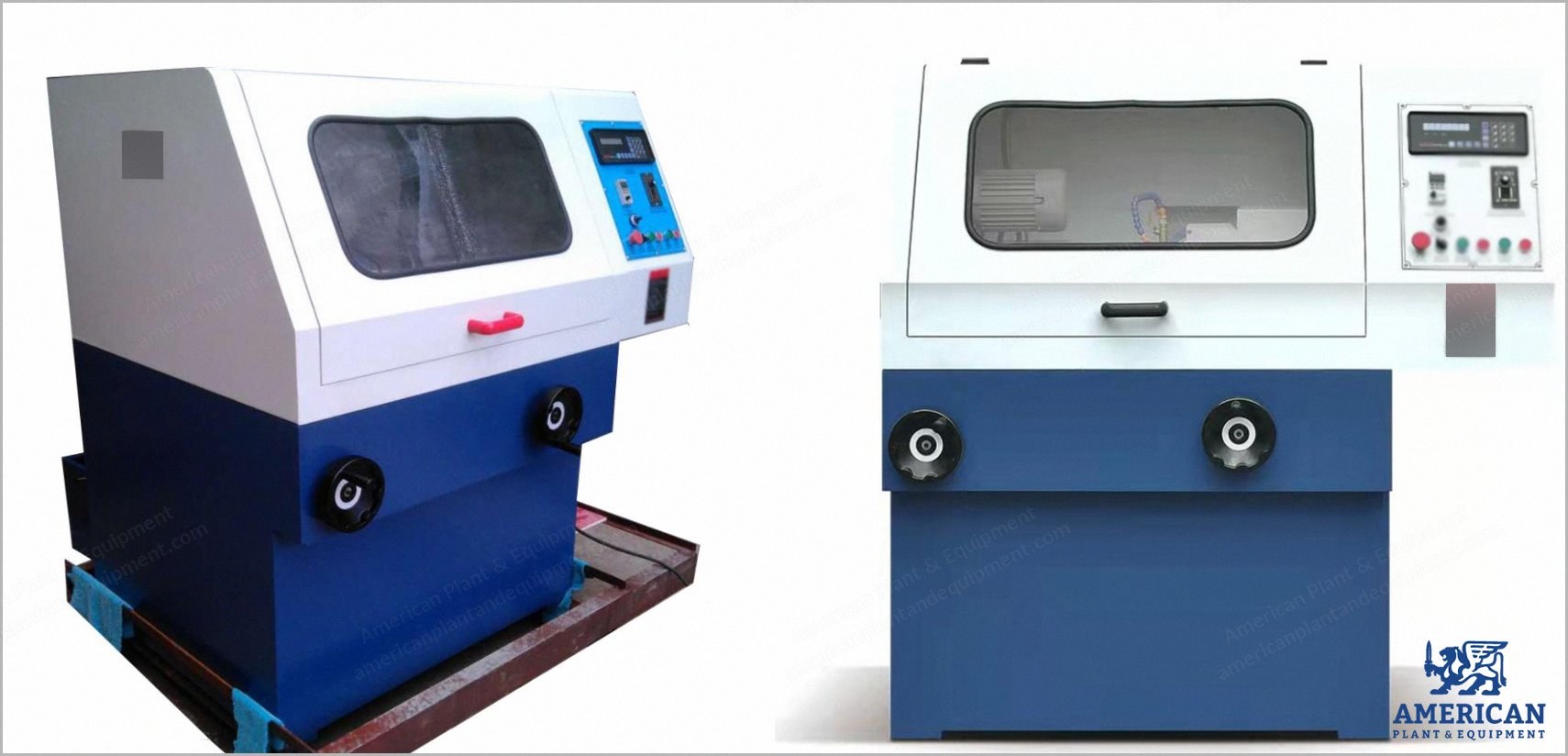

NovaStar, SD131, Round Knife Grinder, Max Knife Diameter 350mm, 2 kW Main Motor (New)

NovaStar, SD131, Round Knife Grinder, Max Knife Diameter 350mm, 2 kW Main Motor

Description

  1. Overview

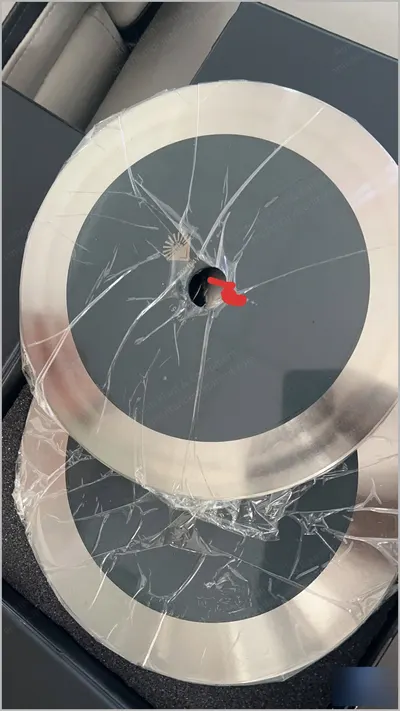

    1. This machine is used to grind circular knives.
  2. Features
    1. High-strength digital display; knife feeding is controlled by digital control.
    2. Imported linear slide rails and imported linear guide rail for high-precision smooth movement and stability of the travel drive.
    3. Centralized lubricating system and convenient maintenance.
    4. Stepless variable cycloid reducer for smooth transmission and high transmission efficiency.
    5. Double-layer filtration cleaning and recycle cooling.
  3. Technical Specifications
    1. Maximum circular knife diameter: Ф350 mm
    2. Grinding angle: 0-45°
    3. Cooling motor: 40 W
    4. Knife holder motor: 120 W (rotation direction is from right to left)
    5. Grinding motor: 1.5 W (rotation direction is from right to left)
    6. Drive speed up to: 2800 R/min
    7. Grinding wheel: Ф31.75 x Ф175 x 10 mm
    8. Main motor: 2 kW
    9. Package size: 1620 x 1320 x 1730 mm
    10. Package weight: 1000 kg
