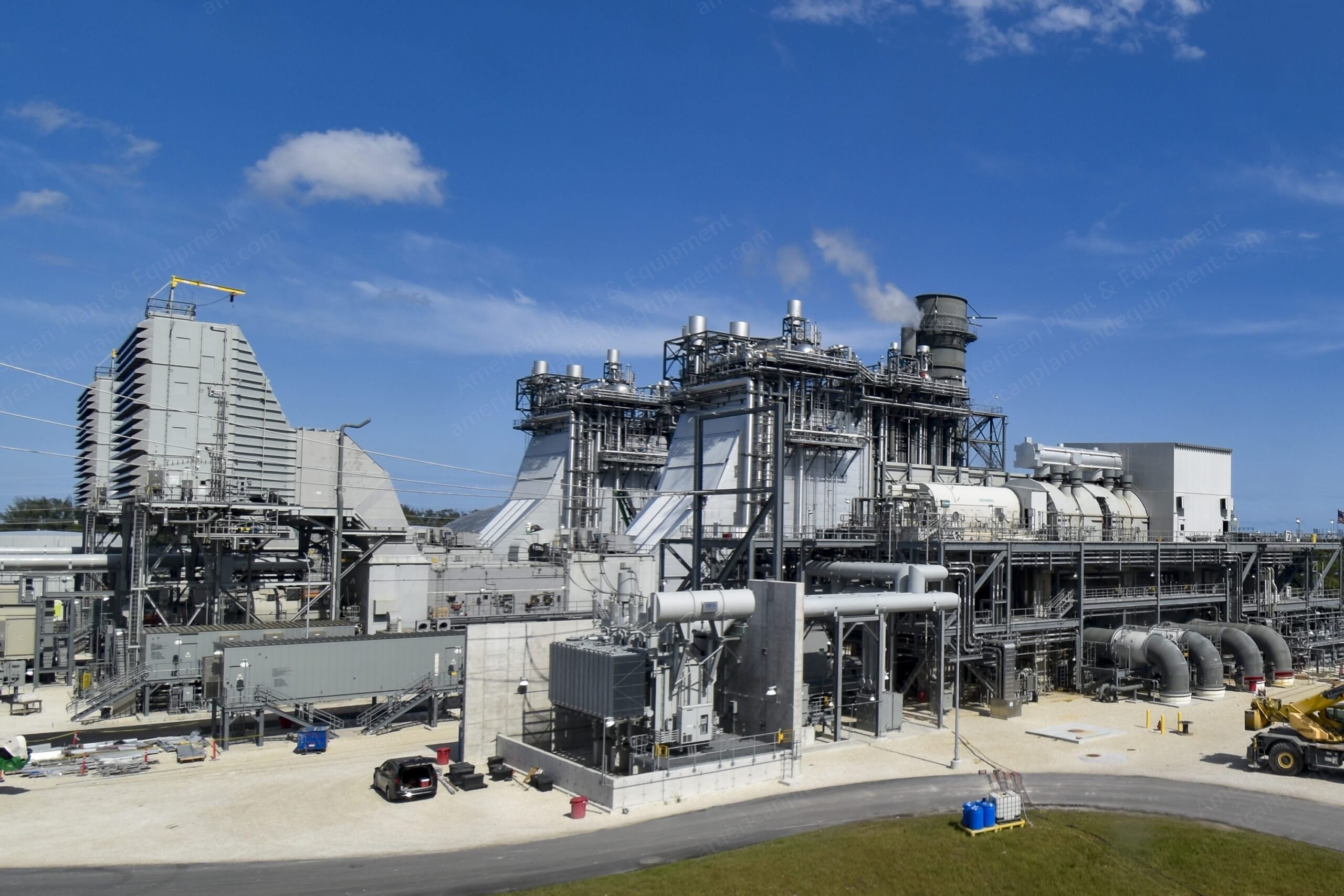

GE, 9371FA, 2008, Gas Turbine Generator 228.9MW, Steam Turbine Generator 127MW, 50Hz

GE, 9371FA, 2008, Gas Turbine Generator 228.9MW, Steam Turbine Generator 127MW, 50Hz

Description

  1. Specifications
    1. Boiler feed pump: ksb chtcs-10 ht motor power (6.6kv) 2.1mw, flow 350 m3/hr, head 1584.2 mwc, 2 units
    2. Main cooling water pump: kiloskar motor abb, ht motor power (6.6kv) 1.1mw, flow 12000 m3/h, head 20 mwc, 3 units
    3. Condensate extraction pump: ksb and motor, motor abb/india, ht motor power (6.6kv) 550kw, flow 450 m3/h, head 265 mwc, 2 units
    4. Unit auxiliary transformer: voltamp 15/6.9kv, 16/20 (onan/onaf/mva), 2 units
    5. Auxiliary transformer: voltamp 2.5mva/a, 4 units; 1.25mva, 2 units; 6.6kv/429 volts
    6. Voltage: 15/400KV, 13.8/400KV
    7. Capacity: 228.9MW + 127MW
    8. Boiler: Thermax B&W PH0316 Triple Circuit HP/IP/LP Flow
    9. Gas turbine generator: GE 9371FA 228.9MW
    10. Gas turbine alternator: Toshiba 299KVA 50Hz
    11. Steam turbine generator: Harbin Turbine 127MW
    12. Steam turbine alternator: Harbin 158.824MVA 50Hz
  2. Condition
    1. Shut down on 2017
    2. Hour meter total 23000 hours
    3. Year of mfg is 2008 but start operation from 2012, total operation hour is 23000 hours
    4. Complex boroscope inspection made on 2021 and top condition and no further repair measures are necessary
    5. Inspection report available ttl 119 pages
