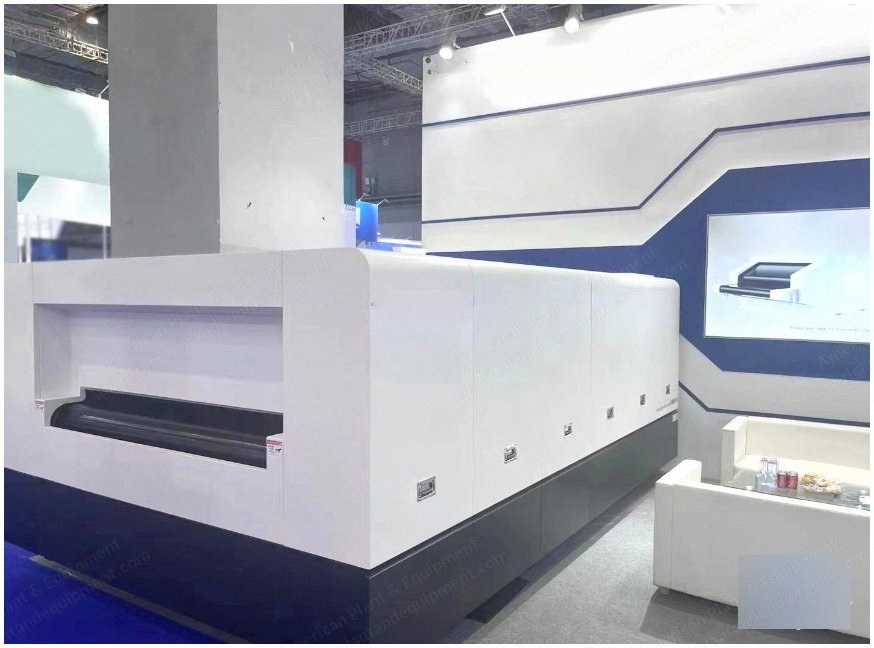

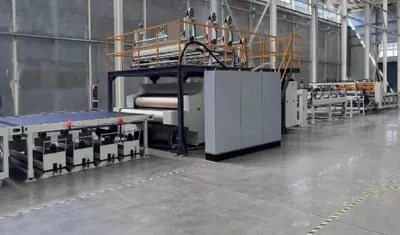

NovaStar, LC172, Flatbed Laminating Machine, 2200mm Working Width, 250C Max Temp (New)

NovaStar, LC172, Flatbed Laminating Machine, 2200mm Working Width, 250C Max Temp

Description

  1. Overview
    1. Flatbed laminating machine with 2200mm working width.
    2. Equipped with heating and cooling zones mounted on a structural framework suitable for production operations of continuous laminated composite materials.
  2. Drive System
    1. Machine speed: 0.5 to 15 m/min.
    2. Composite speed according to the product.
    3. Servo control drive.
    4. Pressing roller and pressure.
    5. Composite pressure roller.
    6. Upper pressure roller has a high-temperature resistant silicone coating; lower pressure roller made of metal material with pneumatic pressure regulation.
  3. Roller Adjustments
    1. Level adjustment of top pressure roller: -3 up to +7mm.
    2. Adjustable distance between composite rollers, motor driven.
    3. Composite roller pressure: 0 to 50 N/cm².
    4. Compressed air: 6 bar.
    5. Composite rubber roller diameter: 200mm.
    6. Composite steel roller diameter: 200mm.
    7. Drive rubber roller diameter: 200mm.
    8. Drive steel roller diameter: 200mm.
    9. Height adjustment: entire heating and cooling zone, including conveyor belt and roller height, can be adjusted from zero to 150mm height.
    10. Complete height adjustment through motor controlled lifting mechanism.
  4. Conveyor Belt
    1. PTFE surface, glass fiber material.
    2. 0.45mm surface splicing tape.
    3. Equipped with conveyor belt guides on both sides.
    4. Upper and lower cleaning devices.
    5. Seamless belt replacement device.
  5. Heating System
    1. Full contact type.
    2. Maximum temperature: 250°C.
    3. Heating zone length: 2200mm.
    4. Full contact heating zone: control upper 9, lower 9 zone 18.
    5. 50 heating elements.
    6. Number of heating groups: 2 groups (upper and lower).
    7. Horizontal control area: left middle right.
    8. Total heating power approximately: 170kW.
    9. When at full heat, the heating accuracy over the entire width is ±5°C.
  6. Cooling System
    1. Full contact type.
    2. Each cooling element on the upper platform is equipped with springs.
    3. Cooling zones: 6 top + 4 bottom.
    4. The components are tightly arranged.
    5. The cooling system is integrated under the conveyor belt and is equipped with 2 connection ports (one in and one out).
    6. Cooling zone length: 1100mm.
    7. The chiller is not offered in the scope of supply, and the buyer will procure it themselves.
  7. Electrical Control Cabinet
    1. PLC system: Siemens S7-1200.
    2. Touch screen: Siemens 10 inch color display.
    3. Control all composite device parameters.
    4. Total power: 200kW.
    5. Voltage: 380V 50Hz / 220 or 440 volt 60Hz.
  8. Testing at Seller's Factory
    1. Testing time: 1 working day.
    2. Working time: 8:30am to 4:00pm.
    3. Before testing, the buyer shall inspect the equipment according to the technical requirements of the drawings and configuration specifications.
    4. After equipment acceptance, the materials will be put into machine trial production.
    5. There are no changes for machine testing.
    6. The buyer will provide at least 30 meters of required raw materials for each trial run.
    7. Unused materials will be picked by the buyer after testing or disposed of at the buyer's expense.
    8. If there is no written objection from the buyer within three working days after the seller's acceptance of the equipment or material production, it shall be deemed as final acceptance and acceptance.
