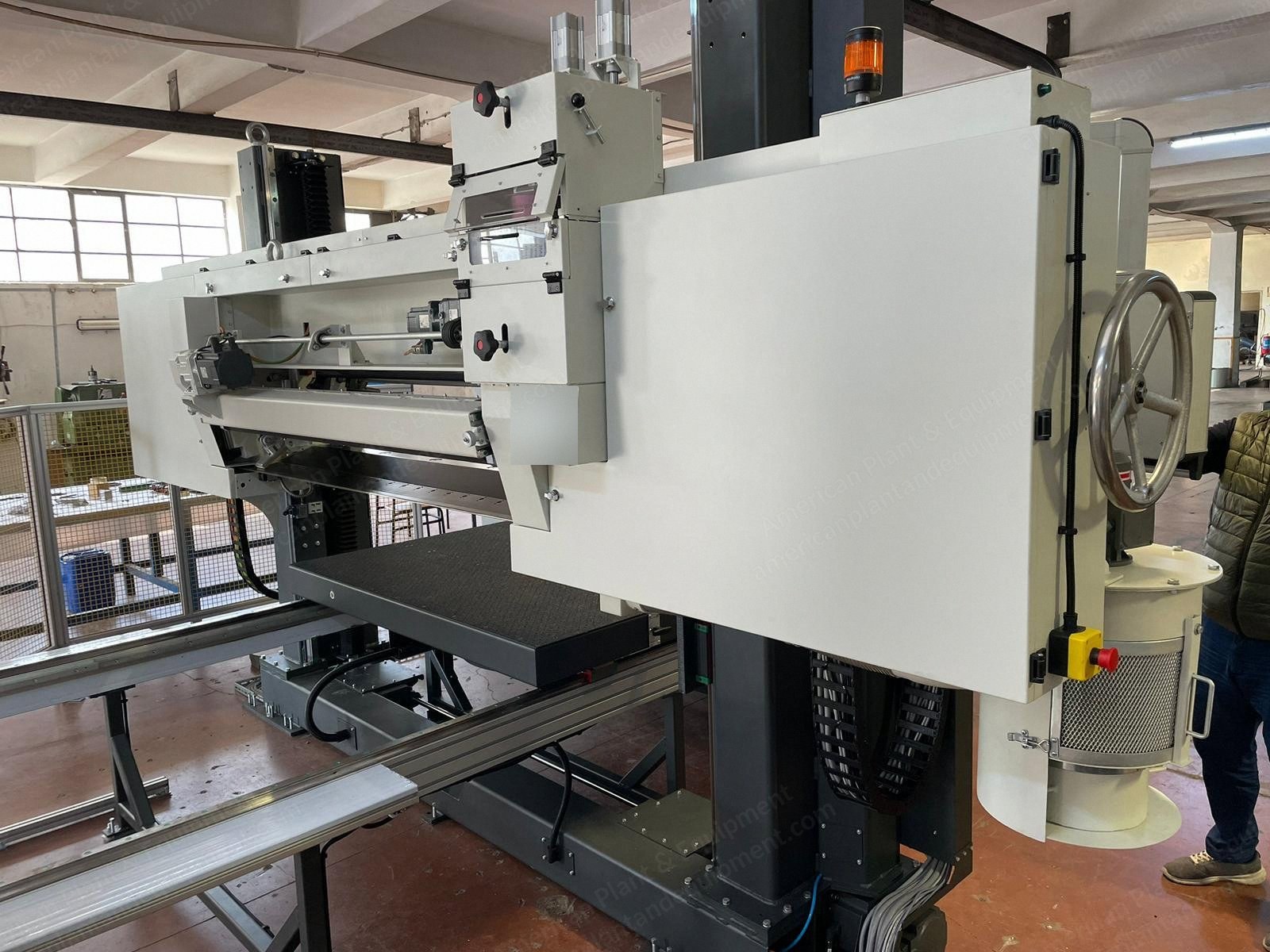

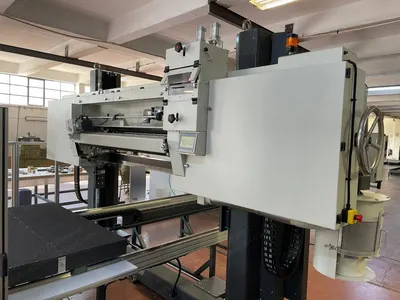

NovaStar, FN538, Heavy Duty Skiver, Working Width 1600mm, Table 3000x1600mm (New)

NovaStar, FN538, Heavy Duty Skiver, Working Width 1600mm, Table 3000x1600mm

Description

  1. Overview
    1. Baumer type for half the price
    2. Working width: 1600 mm
    3. Can cut 1 mm at 250 kg/m³ density with precision
    4. Minimum cutting thickness is 2 mm but does 1 mm with high accuracy
    5. Maximum cutting height: 1300 mm at 65 cm table height (option included)

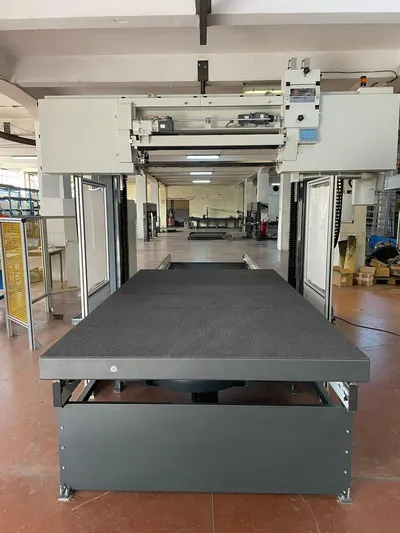

    6. Dimensions of the table: 3000 mm x 1600 mm, coated with silicone carbide for optimum holding of the foam
    7. Cutting width: 1600 mm
    8. Clearance above the band knife: 100 mm
    9. Cutting speed is adjustable from 2 to 70 m/min according to foam qualities; harder and denser foams will need to be cut at 50% of the max speed
    10. Cutting tolerances: +/- 0.2 mm for 2 to 10 mm, +/- 0.3 mm for 10 to 30 mm, and +/- 0.5 mm for 30 mm and up on densities below 60 kg/m³
    11. Densities above 60 kg/m³: cutting tolerance is less than 1%
    12. Automatic grinding system

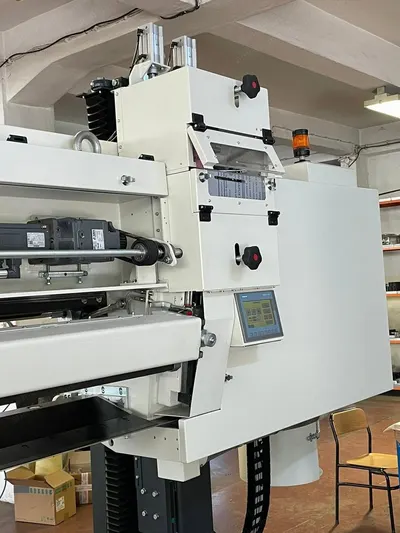

    13. Heavy duty advanced knife guide for precision cutting and longer blade life
    14. Motorized adjustment of the knife in knife guide to ensure optimum position of the blade required by each foam type to be determined by the operator
    15. Grinding dust exhaust system
    16. Manual knife tensioning system included
    17. 0° to 6° degree range automatic angle adjustment of the cutting head in accordance with the program

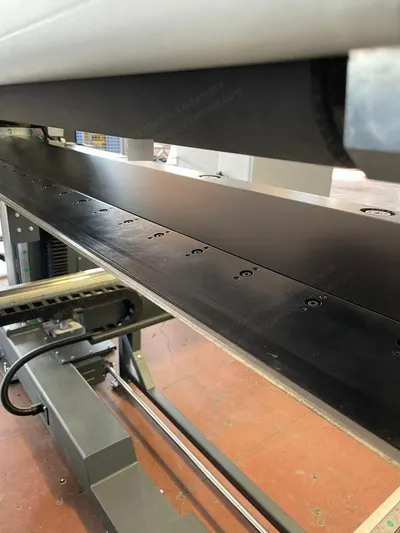

    18. Table is heavy duty constructed with ball monorail guidance system
    19. Band knife is 60 mm wide and 1 mm in thickness
    20. A manual pressure roller is built in and supplied with the machine
    21. Voltage / frequency: 400 V, 15.5 kW, 50 Hz or as per customer
    22. Reinforced vacuum system with zone encapsulations as well as frequency inverter driven motors
    23. Ionization system via bars and power pack transformer to manage electrostatic on knife guide and foam material
  2. Options Available
    1. Spraying unit for lubricant at the knife edge; on knife guide only oiled with felt; low silicone level indicator will be shown on the control panel (option included)
    2. Manufacturer can connect via Siemens Secomea for remote maintenance ready for OPC interface and technical IT support to connect to a MES system
    3. Swiveling arm with an upgraded Siemens operator panel
  3. Materials
    1. All premium brands like SKF, Siemens, etc.

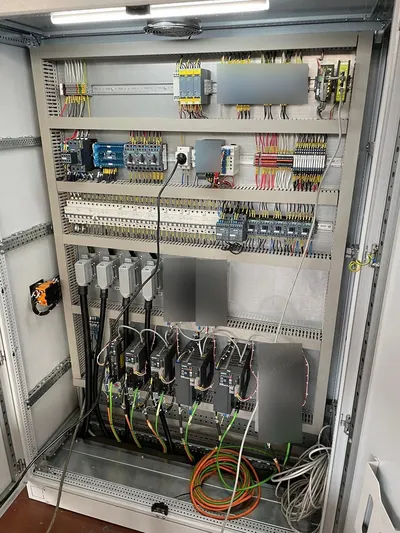

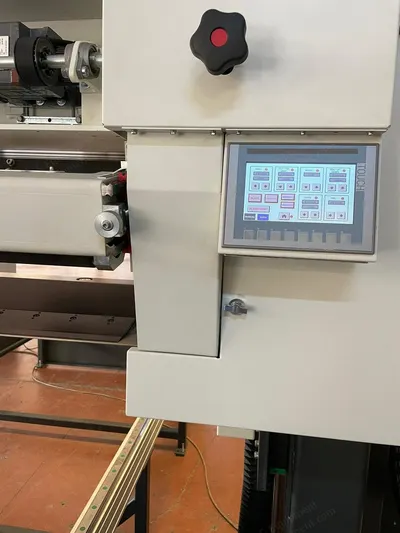

    2. Cabinet with Siemens drives for X-Y axis and Siemens functional KTP 1400 model operator panel or similar with English and German interface
    3. PLC for easy operation
    4. Control language English or German
  4. Spare Parts
    1. 5 blades and 2 sets of grinding stones
