This equipment has been widely used in the electromechanical laboratory of the entry-exit inspection and quarantine bureau at home and abroad.
It can tilt 150 and automatically change the drip position to meet the tilt requirement.

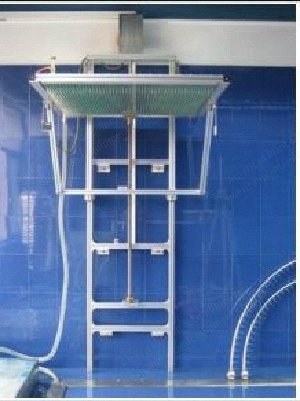

The complete set of equipment consists of vertical drip tester, pendulum rain tester, hand-held shower head, and hand-held nozzle.
This equipment is equipped with a water filter to purify and reuse the tap water to minimize the blockage of the drip hole.
Function Parameters
Drifting area: 1200 mm x 1200 mm
Drip hole spacing: 20 mm
Drip aperture: 0.4 mm
Drip height: 200 mm (on-line photoelectric sensor switch self-control or manual control)
Drop tank rise and fall: incorporates trapezoidal screw and trapezoidal nut device to drive the lifting and lowering and has safety functions such as fall prevention; when there is a water tank, the nut will automatically disengage from the water tank and have the safety function of preventing damage to the water tank and the object being covered.
Lifting motor: stepper motor + reducer
Rack material: industrial alloy aluminum profiles
Water tank type: fully enclosed water tank (L1280 mm x W1280 mm), SUS304 material
Machine installation method: wall mounted
Dimension: L1350 mm x W1400 mm x H2300 mm
