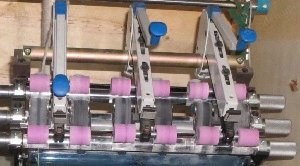

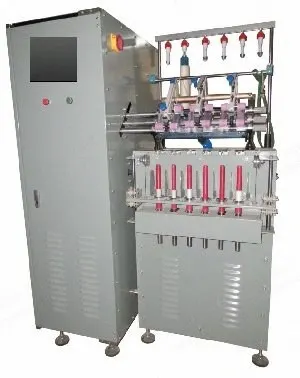

NovaStar, TL177, Laboratory Ring Spinning Machine, 6 Spindles, Max 12000 RPM, 220V (New)

NovaStar, TL177, Laboratory Ring Spinning Machine, 6 Spindles, Max 12000 RPM, 220V

Description

  1. Overview
    1. Part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning tests
    2. Mini machine, saves researching cost and is easy to operate and maintain
  2. Features
    1. Touch screen and PLC control
    2. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen
    3. Frequency converter of high efficiency to control roll speed
    4. Pressurizing system, spring pressure cradle
  3. Technical Specifications
    1. Number of spindles: 6
    2. Fiber type: cotton or cotton-type chemical fibers, customized for wool
    3. Twist range: 50 to 250 twists per meter
    4. Draft range: approximately 2 to 50
    5. Output capacity: 0.25 to 0.5 kg per hour
    6. Roll diameter: 25 mm
    7. Ring diameter: 38 to 45 mm
    8. Spindle speed: max 12000 rpm
    9. Twist direction: Z or S settable
    10. Power supply: AC 220 volts, 60 Hz, 550 watts
