REFERENCE NUMBER: K-4933 AUTOMATIC QUILT FIXING HOTMELT MACHINE QUANTITY AVAILABLE: 1 Learn More

REFERENCE NUMBER: K-4932 AUTOMATIC EDGE-CENTER HOTMELT MACHINE QUANTITY AVAILABLE: 1 Learn More

REFERENCE NUMBER: M-0180 AUTOMATIC VACUUM PILLOW MACHINE 001E RAW MATERIAL & CASE FABRIC MATERIAL APPLICATION: FOR CONJUGATE HOLLOW SILICONIZED POLYESTER FIBER SHORTER THAN 100mm MICRO FIBER SHORTER THAN 100mm ELASTIC FIBER SHORTER THAN 100mm PILLOW FABRIC QUALITY: PERMEABLE FABRIC LENGTH: 13 METERS LONG QUANTITY AVAILABLE: 1 Learn More

REFERENCE NUMBER: K-5175 AUTOMATIC PILLOW MACHINE WITH HOPPER FEED DIMENSIONS: 11700mm X 4000mm X 3000mm POWER: 23.45KW CAPACITY: 8 TO 10 PIECES PER MINUTE LABOR NEED: 1 CONTROL SYSTEM: SIEMENS PLC ELECTRICITY: AS PER CUSTOMER FIBER OPENING RATE: 98%+ WEIGHT: 3650 KG QUANTITY AVAILABLE: 1 Learn More

REFERENCE NUMBER: M-4832 SEMI-AUTOMATIC BAGGING MACHINE QUANTITY AVAILABLE: 1 Learn More

REFERENCE NUMBER: A-1111 (111DHJK10) A AUTOMATIC WINDER SAVIO MODEL ORION E YEAR 2005 – 44 POSITIONS Year 2005 44 Positions Left Head Stock Cops Automatic Loader Conicity 4°20’ (for knitting, wool and mix) Cylinder 2 steps, traverse 152mm diameter, 94 variable step Tube 260mm diameter, 46mm diameter Waxer Knotter Mesdan 690U Clearing plant Lopefe FC type (foreign fibers) Single trolley for doffing Cones automatic loader Lighting along the machine Magitex travelling blower with discharge in head stock 380V 50Hz QUANTITY AVAILABLE: 1 Learn More

REFERENCE NUMBER: M-3009

ATLANTA ATT 3300R AUTOMATIC BORDER MEASURE,  SEW AND HANDLE ATTACHING MACHINE WITH LABEL GOVERNMENT LABEL ATTACHING



BAND AND HEALTH MACHINE

8 POSITIONS TO PUT THE SPOOLS WITH THE HANDLE MATERIALS.

AUTOMATIC HANDLE TACKER, BORDER MEASURE, INSERT LAW LABEL AND CLOSE WORKSTATION

BRAND: ATLANTA ATTACHMENT

MODEL: 3300R

IT CAN PUT MATERIAL STYLE HANDLERS ON AUTOMATICALLY

THE FOLLOWING HEADS ARE ON THIS UNIT: MITSUBISHI PLKE 1010, LS2-1380 AND 1959Y28B

THIS MACHINE IS MADE OF (3) SEWING HEADS

(A) MITSUBISHI PLKE 1010

(B) LS2-1380

(C) 1959Y28B

THE FIRST TWO MACHINES MODEL: 3300R

THE LAST MACHINE’S MODEL: 1959Y28B



THE MACHINE HAS AT THE BEGINNING A SHAFT WITH 8 PLASTIC ROLLERS THAT ALLOW THE PULLING OF THE BORDER FORWARD



MEASURES BORDER, SETS HANDLE (4 OR 8), MEASURE, CUTS AND CLOSES BORDER

ACCOMODATES 8 ROLLS OF HANDLE FOR QUICK CHANGEOVER

AUTOMATICALLY DETECTS AND CUTS OUT SPLICES AND DEFECTS

LOCKSTITCH SEWING HEAD FOR CLOSING BORDER WITH NEEDLE POSITIONER, AUTOMATIC THREAD TRIMMER & PRESSER FOOTLIFT

FEEDS PRE-MADE HANDLES FROM ROLL

CAPACITY UP TO 15" BORDERS

STORES UP TO 22 STYLES

PROGRAMMABLE BOX "X" TACKER

SERIAL BUS CONTROL SYSTEM WITH TOUCH SCREEN UNCONDITIONALLY GUARANTEED THREE YEARS

SELF-DISGNOSTIC SOFTWARE

HEAVY-DUTY GUILLOTINE CUTTER WITH TEMPERED BLADES

HEAVY-DUTY FEEDING MODULE WITH URETHANE ROLLER



MAX SEWING SPEED (RPM):       CLOSER-5000                      TACKER-2300

FACTORY PRESET SPEED (RPM):                 CLOSER-1800                      TACKER-1500

MAX STITCH LENGTH (SPI):          CLOSER-6                            TACKER-8

NEEDLE SYSTEM:                              CLOSER-SNDLX1140        TACKER-SN135X1722

NEEDLE SIZE:                                      CLOSER-22 to 140             TACKER-22 to 140

WEIGHT OF MATERIAL:                 CLOSER & TACKER-MEDIUM

VOLTAGE (V/PH/HZ):                     CLOSER & TACKER- 22V 1PH 60HZ

CURRENT (AMPS):                           CLOSER & TACKER- 5

MOTOR TYPE:                                    CLOSER & TACKER- EFKA DC

AIR PRESSURE (PSI):                       CLOSER & TACKER- 80

AIR CONSUMPTION (CFM):         CLOSER & TACKER- 6

SHIPPING WEIGHT (LBS):              CLOSER & TACKER- 2250

SHIPPING DIMENSIONS:                               CLOSER & TACKER- 65 x 110 x 88



DESCRIPTION FROM WEB PAGE MAY NOT FIT MACHINE DESCRIPTION EXACTLY



QUANTITY: 1

Learn More

TT-8334 TEMAFA / LAROCHE FULLY AUTOMATIC PILLOW FILLING MACHINE, YEAR 1974 TO 1991 Learn More

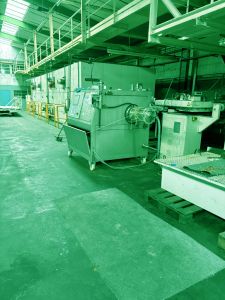

TT-7964 MODERN AUTOMATIC CARPET TILE PLANT, YEAR 1990 TO 2019 COATING LINE FOR CARPET AND CARPET TILES WORING WIDTH 2200mm Learn More

TT-7863 TEXPA LENGTH CUTTER/SLITTER, LENGTH HEMMERS AND AUTOMATIC CROSS CUTTERS, YEAR 2018 WORKING WIDTH: 2800mm Learn More
